3 Connecting Up and Starting to Use the Device
24 IDA-3106 Narda

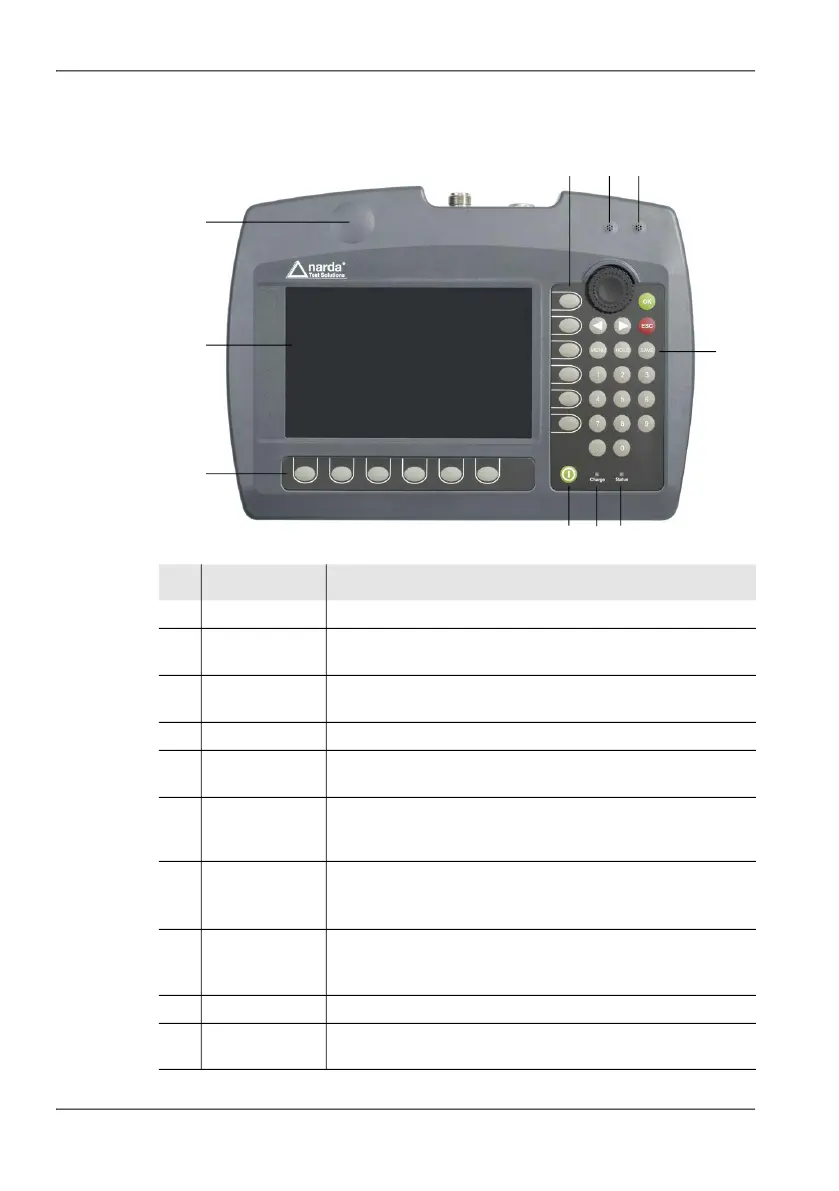

3.2.2 Display and control panels
No. Element Function / Explanation
1 LCD panel Screened, high-resolution liquid crystal display.
2 GPS receiver GPS receiver antenna area.
Do not attach any metallic stickers to this area.
3 Vertical
softkeys
Context-dependent, operating mode and function selection,
changing settings.
4 Microphone For recording voice comments.
5 Loudspeaker For output of demodulated signal content and the audible
signal search tone.
6 Keypad and
rotary control
knob
Navigation, changing settings, entering values, confirming
or cancelling entries.
7 Status display • LED green: device is ready for use.
• LED flashes green every 3 s: Device is in stealth mode
• LED red: device is initializing or device error.
8 Charge
indicator
• LED red: Battery is charging.
• LED green: Charging cycle finished or AC adapter /
charger still connected to device charging socket.
9 On/Off key Switches device on or off (hold down key).
10 Horizontal
softkeys
Context-dependent, function selection, changing settings.
1
10
3
6
89 7
2
4
5
