4.4.1 The upper status bar
The upper status bar gives information about the device, the components
used, and the general settings.

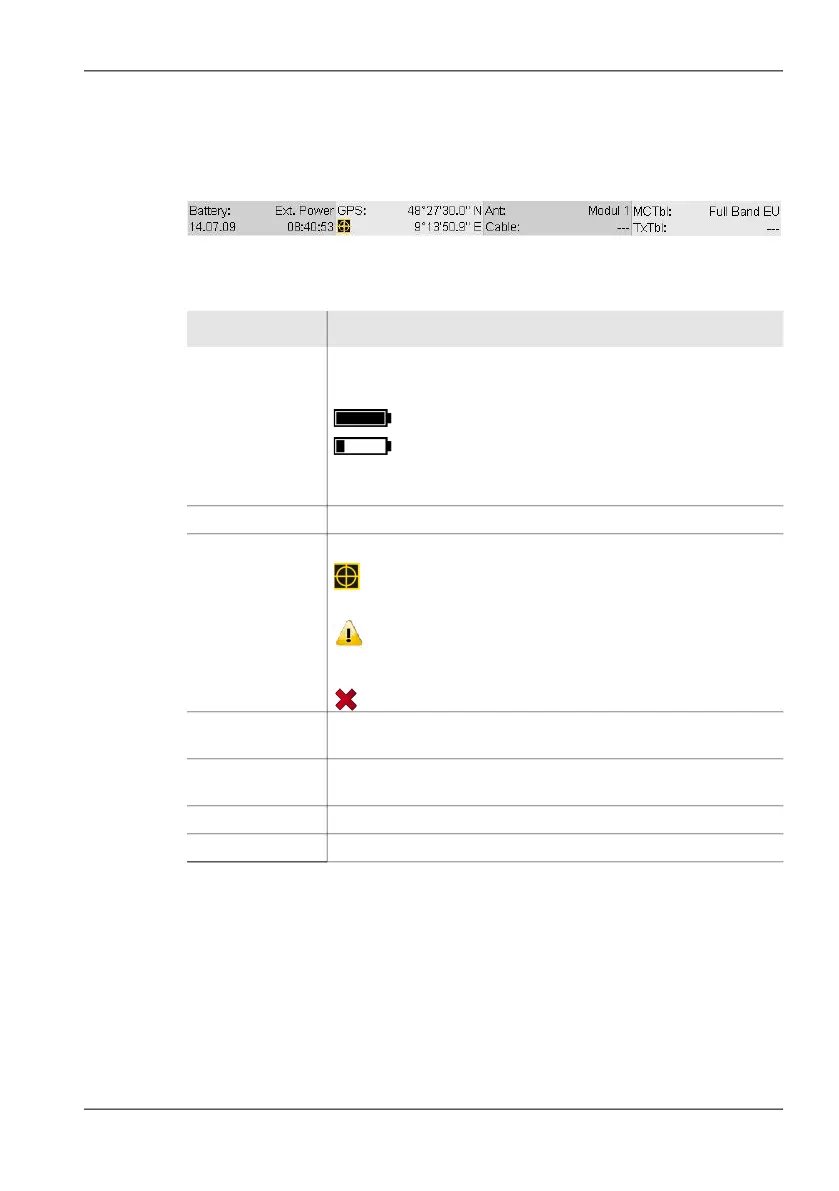

Figure 9: Upper status bar
Table 3: Upper status bar elements
Element Description
Battery Power supply indicator:
Ext. Power External supply from AC adapter.
Battery fully charged.
Battery almost discharged.
Batt.
(flashes)
Battery discharged, device powers down
immediately and switches off.
Date, time Indicates the date and time.
GPS GPS receiver status and coordinates:
DGPS reception.
Coordinates GPS reception, coordinates are displayed
When the signal is lost, the last GPS
coordinates are used until a signal is received
again or the device is switched off.
No GPS reception.
Ant. Antenna used (displayed only if the type is automatically
recognized or has been entered manually).
Cable Cable used (displayed only if the type is automatically
recognized or has been entered manually).
MCTbl Selected multi-channel table.
TxTbl Selected transmitter table.
