Native Instruments MASCHINE MK3 Getting Started

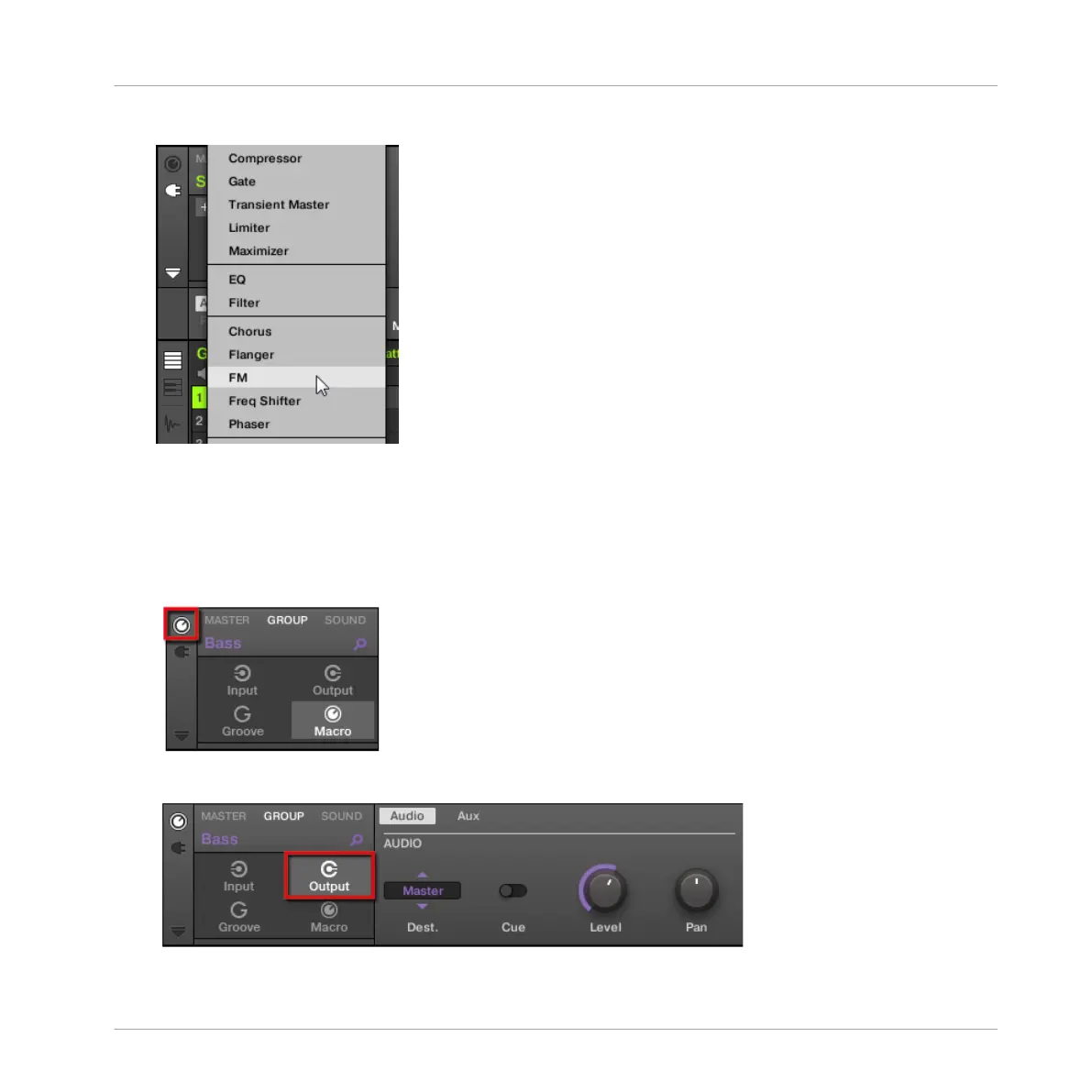

5. In this menu, select any effect, e.g., FM.
The FM effect is loaded.
6. Now click the Group Bass in the Arranger to select it.
7. Click the GROUP tab in the Control area to select the Group level and display the parame-
ters for the Group “Bass” that we just selected.
8. Click the Channel icon.
9. Click the Output icon to select the Output properties of that Group.
Using Advanced Features
Using Other Sound Sources
MASCHINE - Getting Started - 164

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
