Native Instruments MASCHINE MK3 Getting Started

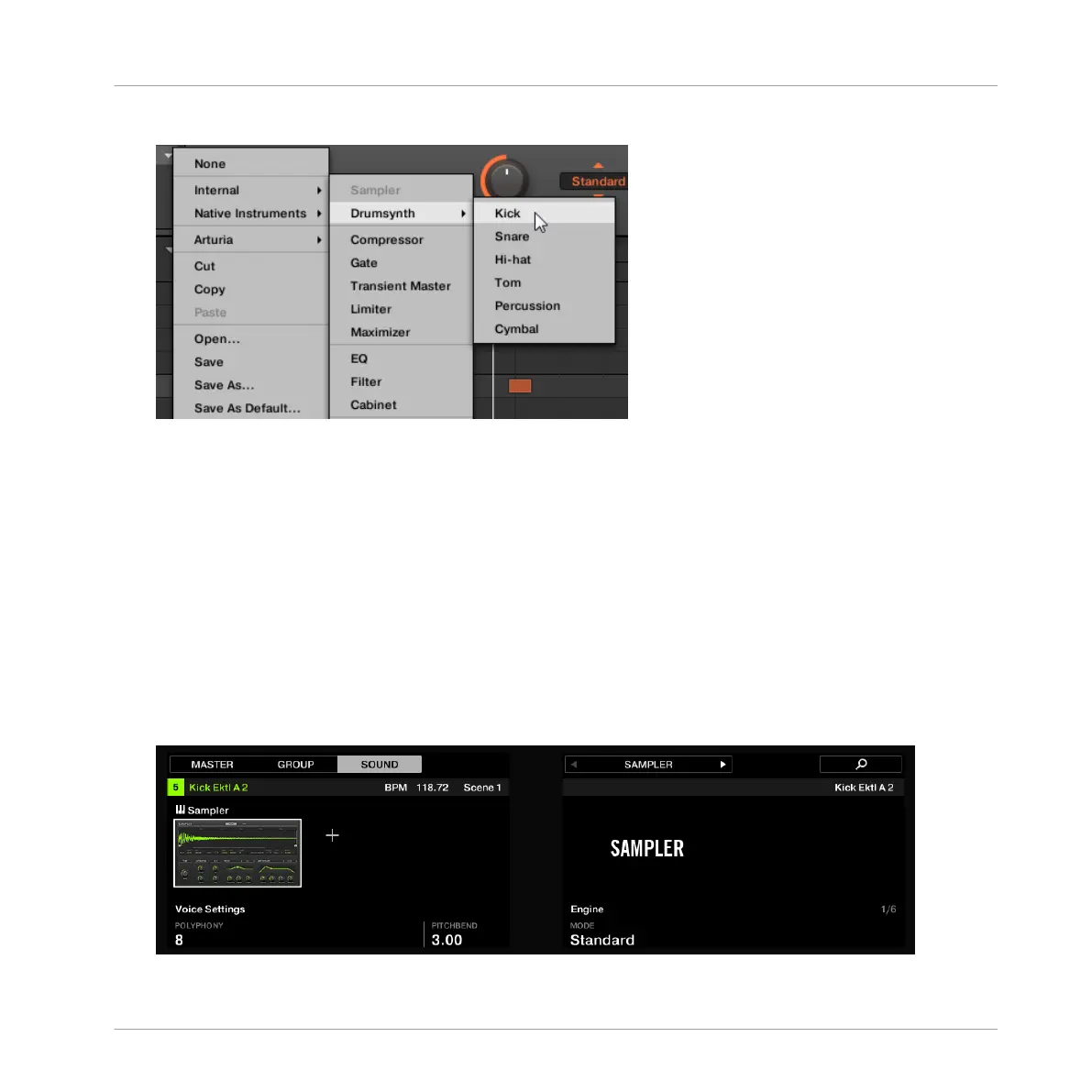

6. Click the Kick entry to load it into the Plug-in List.
→
The Kick Plug-in is now loaded and is ready to be tweaked.
4.2.2.2 Loading a Drumsynth into a Plug-in List on the Controller
1. Press the PLUG-IN button in the top left corner of your controller to enter Control mode
and display the Plug-in slots.
2. Press SELECT + pad 5 to select the Sound Kick Ektl A 2.
3. Press Button 3 to select the SOUND tab.
The left display shows you all the Plug-ins loaded in the selected Sound — in our case
there is only one: the Sampler.
4. Move the 4-D encoder to the left so that the white frame moves onto the Sampler in the
left display. This white frame indicates the focus – now the focus is on the Sampler:
Building Your Own Drum Kit
Customizing Your Drum Kit
MASCHINE - Getting Started - 62

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
