Native Instruments MASCHINE MK3 Getting Started

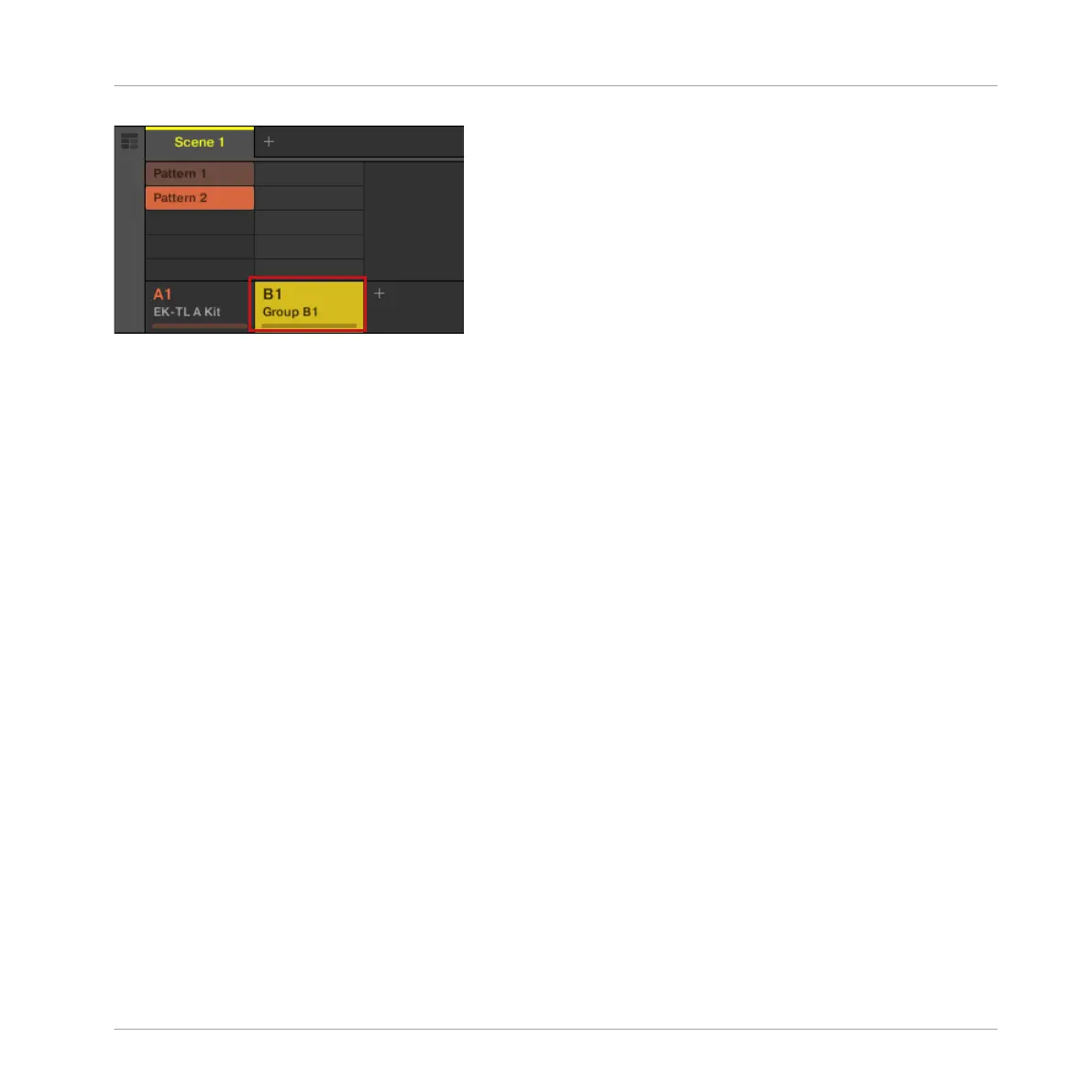

Click the Group slot’s name to select that slot.
Upon selection, the Pattern Editor below switches to display the content of the newly selected
Group slot. For now, this is still empty (no Sounds, no Patterns).
6.1.2 Selecting Another Group on the Controller
The eight buttons labeled A to H on the left of your controller represent the eight available
Group slots of the current bank:
▪ Button A is fully lit in the Group’s color to indicate that Group A1 in the software is select-
ed.
▪ Button B is dim lit in white, indicating that a new Group can be created here.
▪ All other Group buttons are off because their slots are empty.
►
Press button B to select the second Group slot (B1).
→
Group B1 now is selected.
Have a look at the Group buttons:
▪ Button A is half lit in the Group’s color: There is a Group but it is not selected.
▪ Button B is fully lit in the Group’s color: Group B1 is selected.
▪ Button C is dim lit in white, indicating that the next Group can be created here.
▪ All other Group buttons are unlit because their slots are empty.
Adding a Bass Line
Selecting Another Group
MASCHINE - Getting Started - 87

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
