Page 1-2 V10/V7.5/V5/V3.5 Installation and Operation Manual
Issue 3.5 Section 1 General Information
Table 1-1: RF Output Power Ratings
Mode V10
Power (W)
V7.5
Power (W)
V5
Power (W)
V3.5
Power (W)
Analog (FM) 11,000 (max.)
10,000 (rated)
200 (min.)
8,300 (max.)
7,500 (rated)
200 (min.)
5,500 (max.)
5,000 (rated)
100 (min.)
4,150 (max.)
3,750 (rated)
100 (min.)
Hybrid (FM+HD) 8,000 (max.)
7,300 (rated)
1,000 (min.)
6,000 (max.)
5,480 (rated)
750 (min.)
4,000 (max.)
3,650 (rated)
500 (min.)
3,000 (max.)
2,740 (rated)
380 (min.)
All-Digital (HD) 3,000 (max.)
2,800 (rated)
500 (min.)
2,250 (max.)
2,100 (rated)
380 (min.)
1,500 (max.)
1,400 (rated)
250 (min.)
1,130 (max.)
1,050 (rated)
190 (min.)
1.7 TEST EQUIPMENT
Table 1-2 lists the test equipment and
special tools required to operate and
maintain the transmitter.
1.8 GLOSSARY OF TERMS
Table 1-3 provides a list of unique terms,
abbreviations, and acronyms used in this
publication.

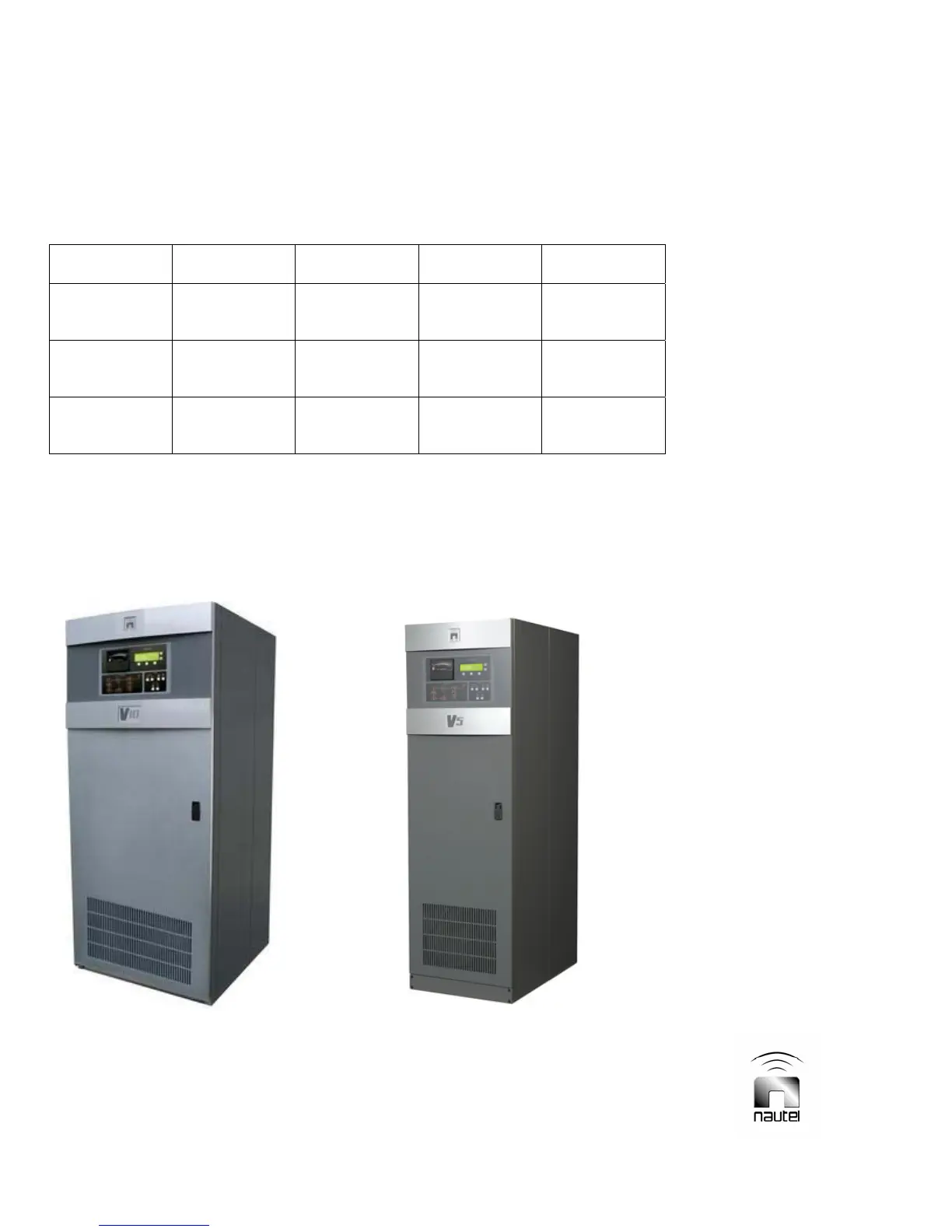

Figure 1-1: V10/V7.5/V5/V3.5 FM Broadcast Transmitter
