3.6.13 Set Main/Standby Operation
The main/standby status of exciters A and
B, IPA A and B, IPA power supply modules
A and B and fan supplies A and B can be
monitored and set as follows:
NOTE
Duplication of the exciter, IPA, IPA power
supply module and fan supply module is
optional.
In V10/V7.5 transmitters, the entire IPA
module may be duplicated. In V5/V3.5
transmitters, only the PA within the IPA
module may be duplicated.
(a) From the main screen, press
Changeover.
(b) Use f or g to highlight the desired
module (Exciter, IPA PA, IPA PS or
Fan PS for V5/V3.5; Exciter, IPA or
Fan PS for V10/V7.5). Press Select.
(c) Use f or g to select the Main, Auto
or Standby field. The Active field is for
monitoring only. Press Edit.
(d) Use f or g to toggle the:
• Standby field between Y (standby
operation is available/desired) and N
(standby operation is not available/not
desired). Factory set and does not
typically require adjustment.
• Main field between A or B (see NOTE
below).
• Auto field between Y (automatic
changeover) and N (user selected
changeover).
NOTE
If Y (yes) is selected in the Standby field,
the Main and Auto fields can also be
selected/edited.
If N (no) is selected in the Standby field,
the Main and Auto fields cannot be
selected/edited. The main exciter, IPA
(V10/V7.5 only), IPA PA (V5/V3.5 only),
IPA PS (V5/V3.5 only) and Fan PS will
default to A.
(e) Press Save when complete. Note the
transmitter status bar will be updated.
There may be a brief interruption to the
transmitter’s on-air status while the
change is implemented.
(f) Press Back to return to the main
screen.

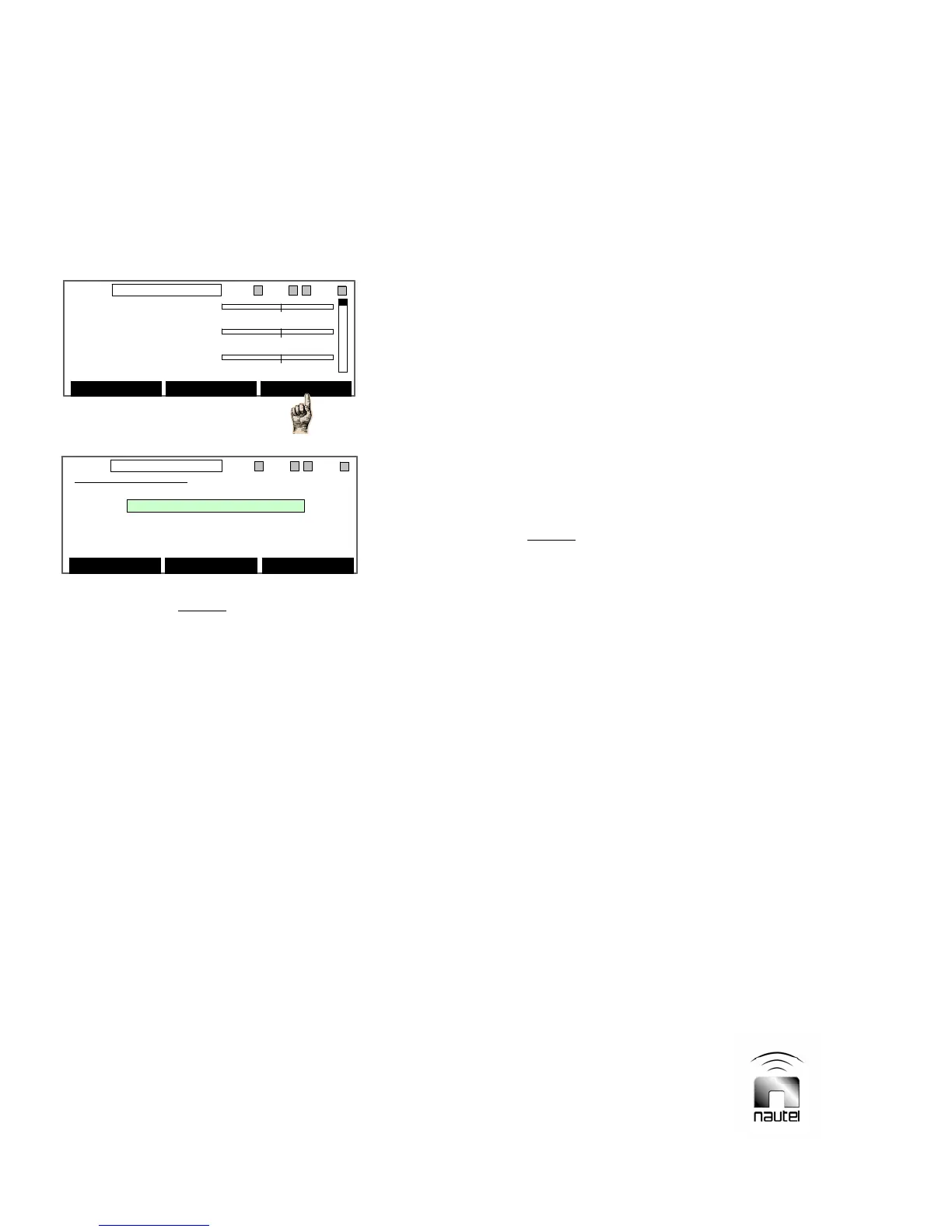

Fwd Power 0 kW
0 6.00
Refld Power 0 W
0600
PA VDC 0 V
0 60.0
Menu Status Changeover
11:26 98.10MHz 0.00kW 1 EXA IPAA/A FanA
Fwd Power 0 kW
0 6.00
Refld Power 0 W
0600
PA VDC 0 V
0 60.0
Menu Status Changeover
11:26 98.10MHz 0.00kW 1 EXA IPAA/A FanA
Changeover
Active Main Auto Standby
Exciter A A Y Y
IPA PA A A Y Y
IPA PS A A Y Y
Fan PS A A Y Y
Select Back
11:26 98.10MHz 0.00kW 1 EXA IPAA/A FanA
Changeover
Active Main Auto Standby
Exciter A A Y Y
IPA PA A A Y Y
IPA PS A A Y Y
Fan PS A A Y Y
Select Back
11:26 98.10MHz 0.00kW 1 EXA IPAA/A FanA
V5/V3.5 screen shown
