Nautel V10 - Transmitter Room Considerations

V10/V7.5/V5/V3.5 Installation and Operation Manual Page 2-3
Section 2 Preparation for Use and Installation Issue 3.5

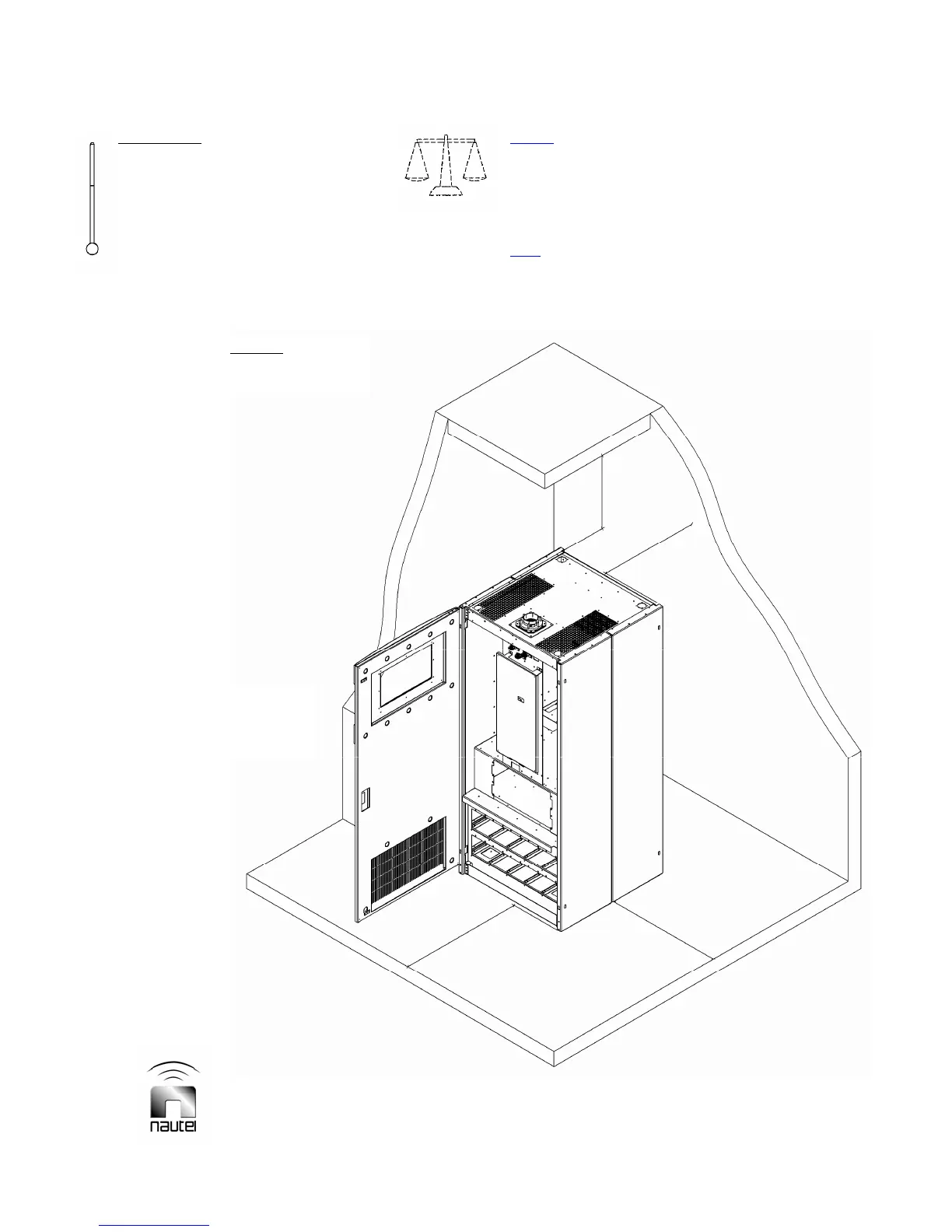

Figure 2-1: Transmitter Room Considerations
A
LLOW MINIMUM
0.6 m (2 ft) ON LEFT-
HAND SIDE TO
OPEN FRONT DOOR
WEIGHT
V10 V7.5 V5 V3.5
CRATED TRANSMITTER 345 kg 337 kg 265 kg 257 kg
(761 lbs) (741 lbs) (585 lbs) (565 lbs)
UNCRATED, ASSEMBLED 263 kg 254 kg 205 kg 195 kg
(580 lbs) (560 lbs) (450 lbs) (430 lbs)
NOTE
: UNCRATED WEIGHTS INCLUDE ALL OPTIONAL ASSEMBLIES
TEMPERATURE
0°C TO 50°C **
** MAXIMUM OPERATING TEMPERATURE
AT SEA LEVEL (0 m)
DERATE 3°C PER 500 m (or 2°C PER 1,000 ft)
A
BOVE SEA LEVEL
EXAMPLE: AT 1,600 m (1 mile) ABOVE
SEA LEVEL, MAXIMUM AMBIENT TEMPERATURE
SHOULD NOT EXCEED 40.4°C
A
LTITUDE
0 TO 3,000 m (10,000 ft)
MINIMUM
1.2 m
(
4 ft
)
MINIMUM
1.2 m
(
4 ft
)
MINIMUM
0.6 m
(
2 ft
)
No Right-Side
Clearance
Required
