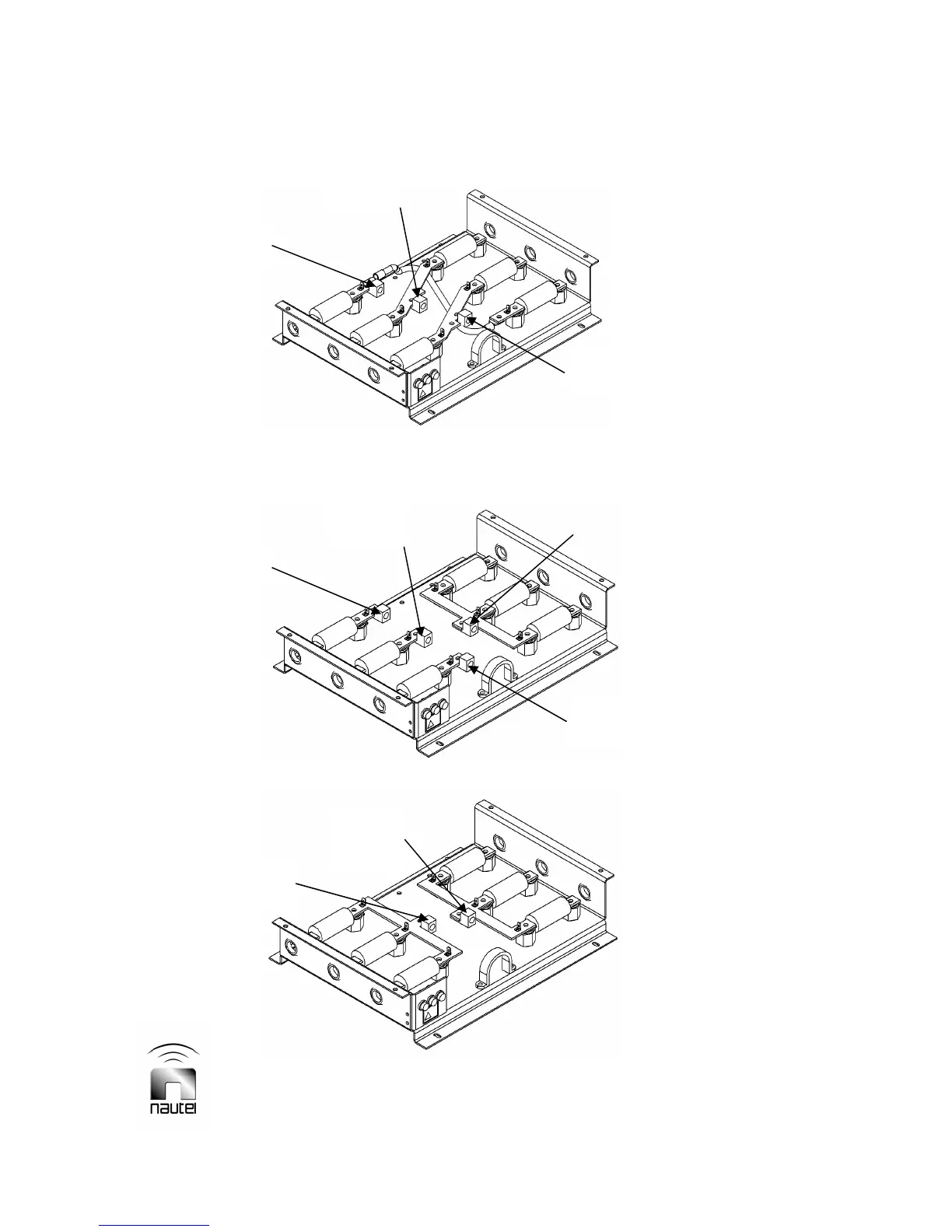

Figure 2-3: Ac Input Connection Options
E1
(Line A)
E2
(Line B)
E3
(Line C)
THREE-PHASE (3
φ
)
(180 – 264 V ac)
Typically:
North American, Japan
208 V (3φ, L-L)
E4
(Neutral)
E3
(Line C)
E2
(Line B)
E1
(Line A)
THREE-PHASE (3
φ
)
(312 – 457 V ac)
Typically:
India, Europe, New
Zealand, Israel, Australia
380-415 V (3φ wye, L-L),
220 - 240 V L-N
E1
(Line A)
E2
(Line B/
Neutral)
SINGLE-PHASE (1
φ
)
(180 – 264 V ac)
L-L or L-N
