AVIOR-24S ™ CHAPTER II
Hardware Integration
38
NAVIOR-24S ™ Revision V1.00 20.05.2008
Serial Port Connections

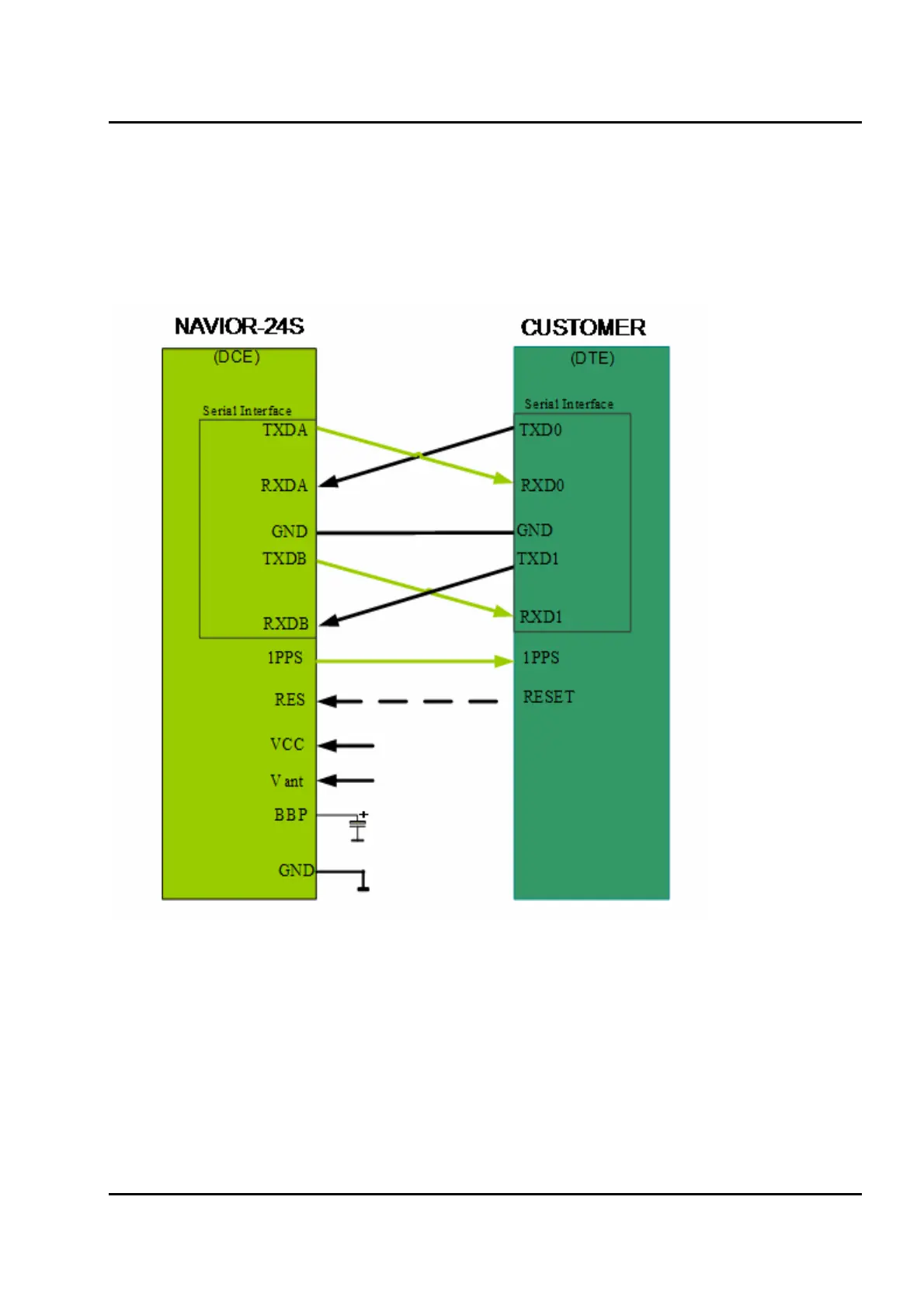

Figure II-2 shows the Serial port connection.
Figure II-2 – Serial port connection
Note - If you want to use a synchronous system connect the Reset signal to pin 17 Digital IO/Power
Connector Pin out of the receiver. Active low level.
