AVIOR-24S ™ Appendix F
Specifications and Mechanical Drawings
218
NAVIOR-24S ™ Revision V1.00 20.05.2008
Accessories
Module
GPS/GLONASS/SBAS module
Starter Kit
Includes NAVIOR-24S GPS/GLONASS module mounted
on interface motherboard in a durable metal enclosure,
AC/DC power converter, GPS/GLONASS antenna, serial
interface cable, software toolkit and manual on CD-ROM.
Antenna
Transition
Cable, MMCX
RF cable for connecting antennas with MMCX connector
to on-module RF connector.
The NAVIOR-24S GPS/GLONASS Receiver. Mechanical drawings is shown on Figure IV-36
The numeration of X501 connector pins is shown on Figure IV-35

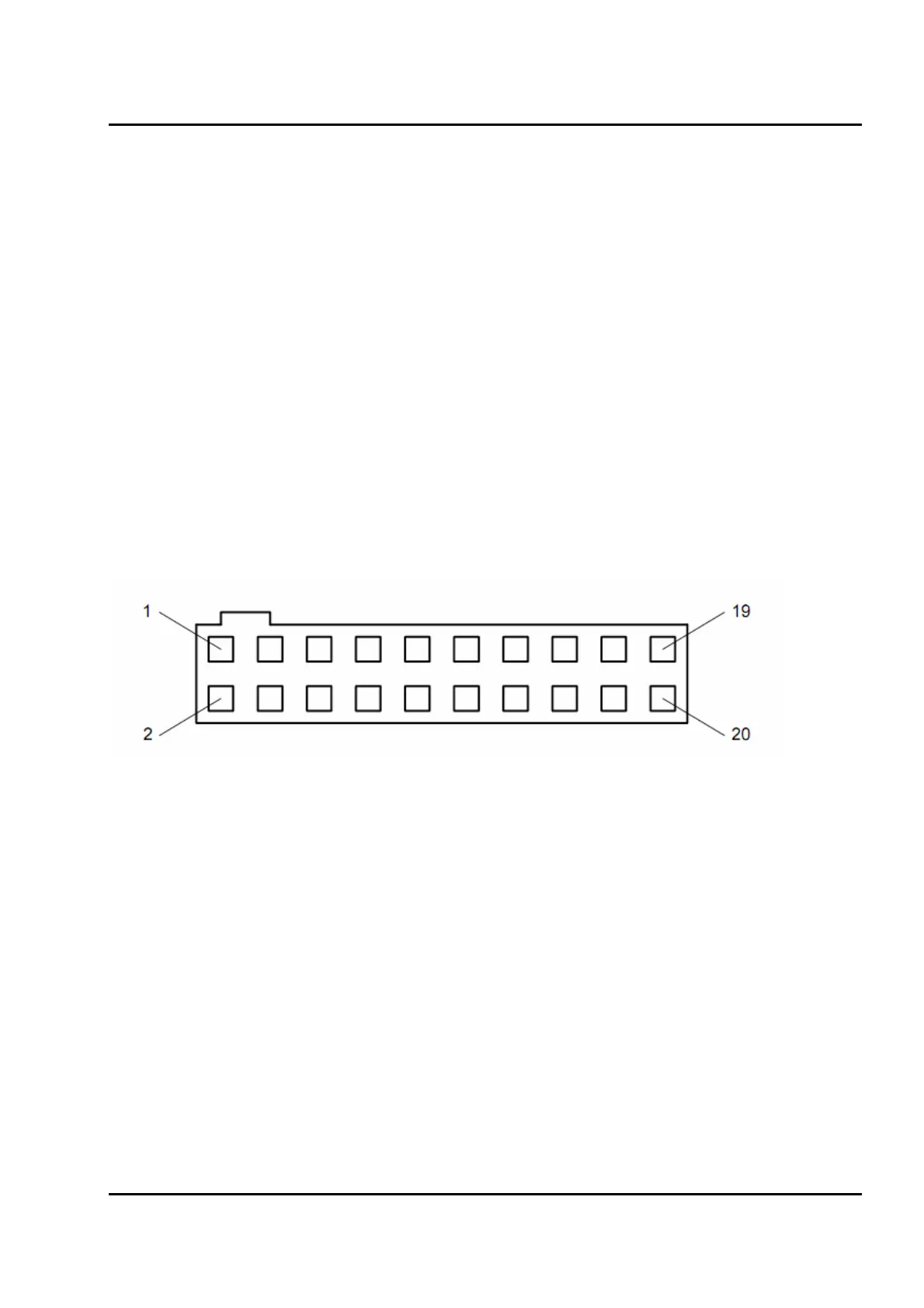

Figure IV-35. Numeration of X501 connector pins
