The POSITION window

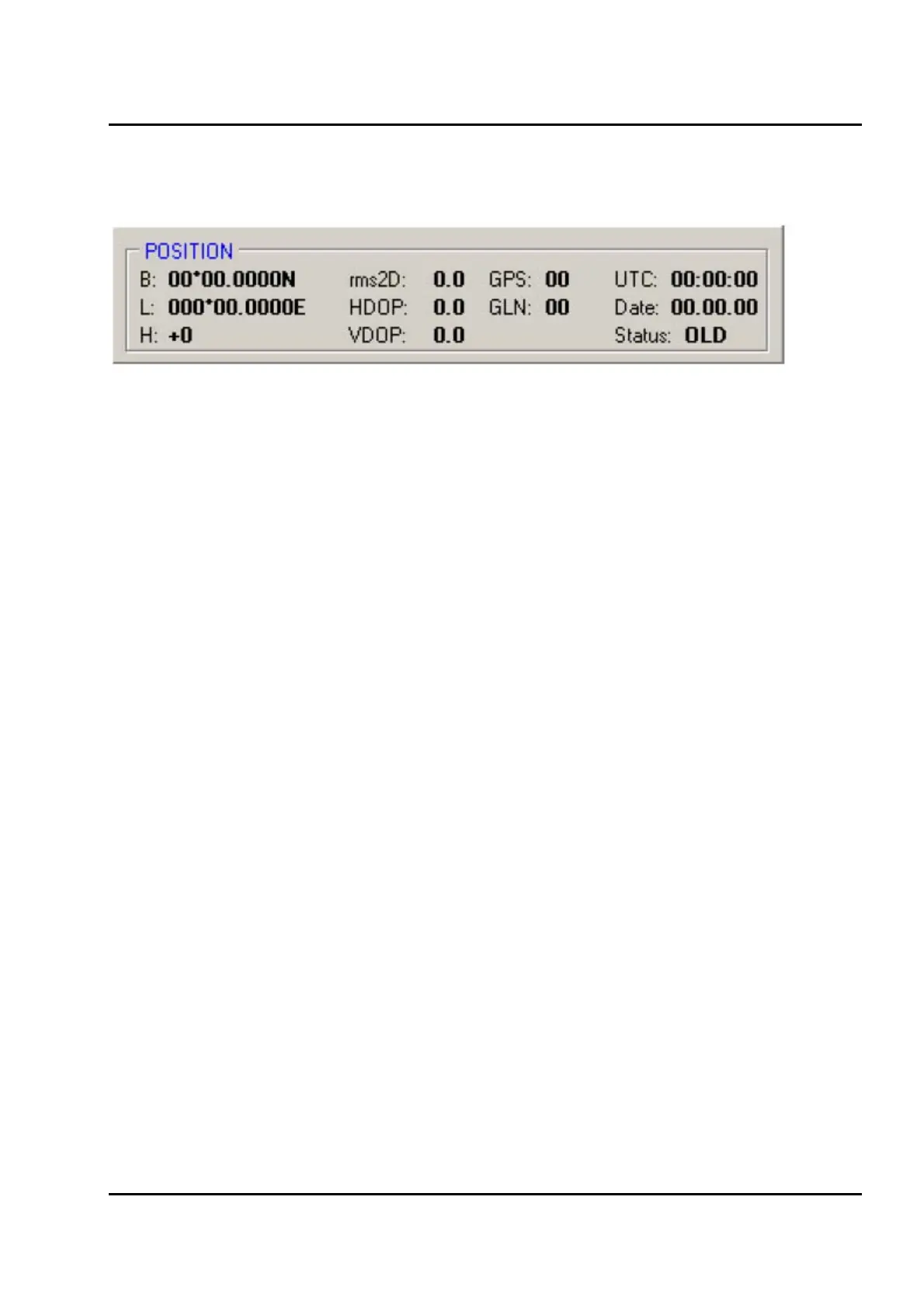

Figure IV-29. The POSITION window
The POSITION window (Figure IV-29) displays the following information:
- B – current latitude;
- L –current longitude;
- H – current altitude;
- rms2D – expected planar RMS,m;
- HDOP – current Horizontal Delusion of Precision;
- VDOP – current Vertical Delusion of Precision;
- GPS – a number of GPS satellites used in calculating position solution;
- GLN – a number of GLONASS satellites used in calculating position solution;
- UTC – current UTC time;
- Date – current date;
- Status – solution status (OLD – no solution, 2D – 2D solution, 3D – 3D solution,
- DIFF – differential augmentations were used, CORR – forming differential
augmentations)
