AVIOR-24S ™ Appendix B

avis Standard Interface Protocol BINR

NAVIOR-24S ™ Revision V1.00 20.05.2008

Check connection

Request Packet 26h

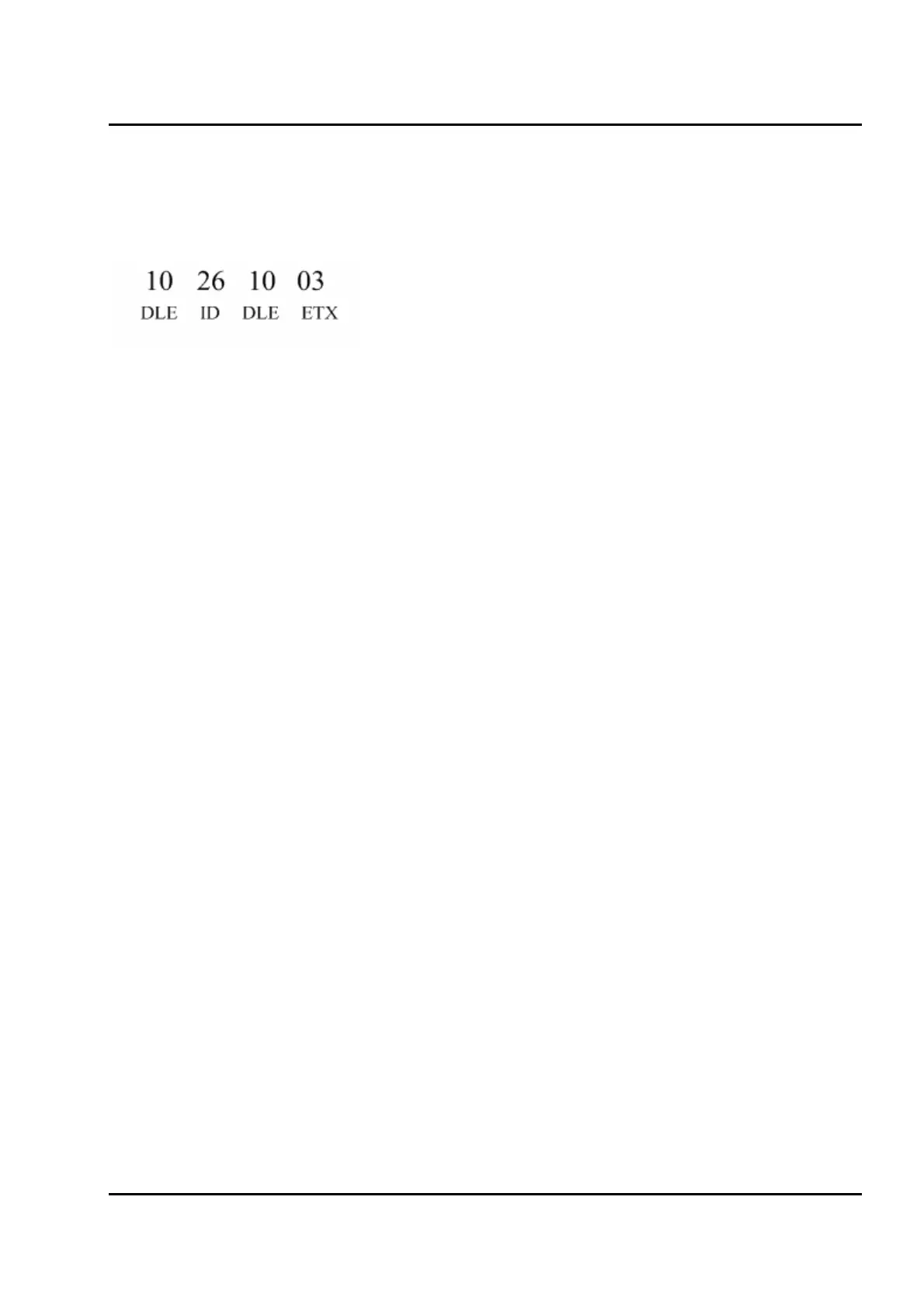

Request packet 26h provides control of the external communication. It has following structure:
