AVIOR-24S ™ Appendix B

avis Standard Interface Protocol BINR

NAVIOR-24S ™ Revision V1.00 20.05.2008

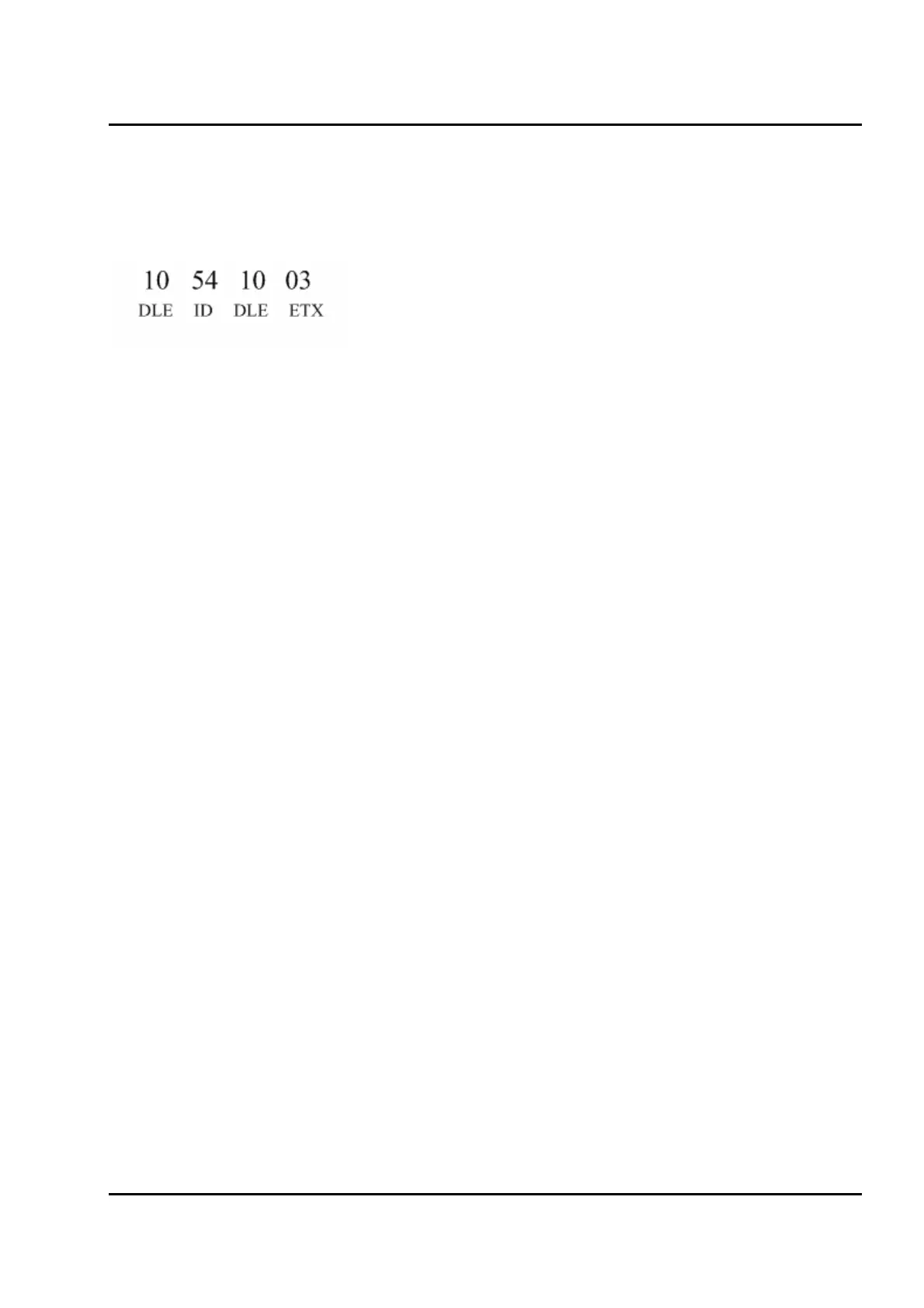

Answer Packet 54h

A single transmission of packet 54h confirms the availability of the external communication. It has

following structure:
