The VISUAL window

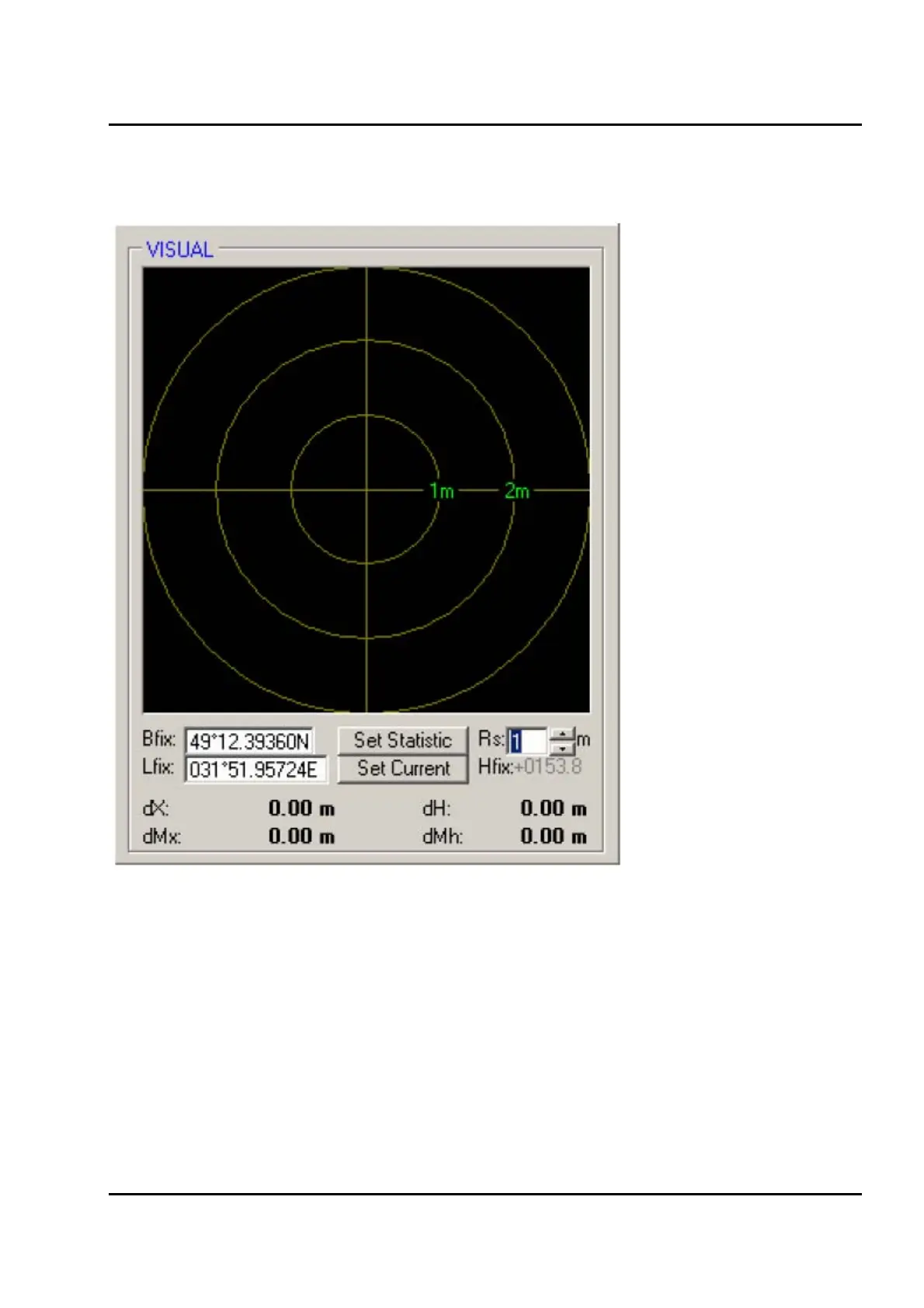

Figure IV-32. The VISUAL window
The VISUAL window (
Figure IV-32) displays current position graphical chart and the following
information:
- Bfix (user defined) – chart’s centre’s reference latitude;
- Lfix (user defined) – chart’s centre’s reference longitude;
- Hfix (user defined in the PROFILE window) – reference altitude;
- Rs – chart’s inner ring radius;
- dX – current coordinates planar deviation from the reference coordinates;
