AVIOR-24S ™ CHAPTER II

Hardware Integration

NAVIOR-24S ™ Revision V1.00 20.05.2008

2. A Maritime GPS/GLONASS Antenna without cable and TNC connector. A Maritime

GPS/GLONASS Antenna is ideal for objects when antenna is mounted far away (up to 100 meters)

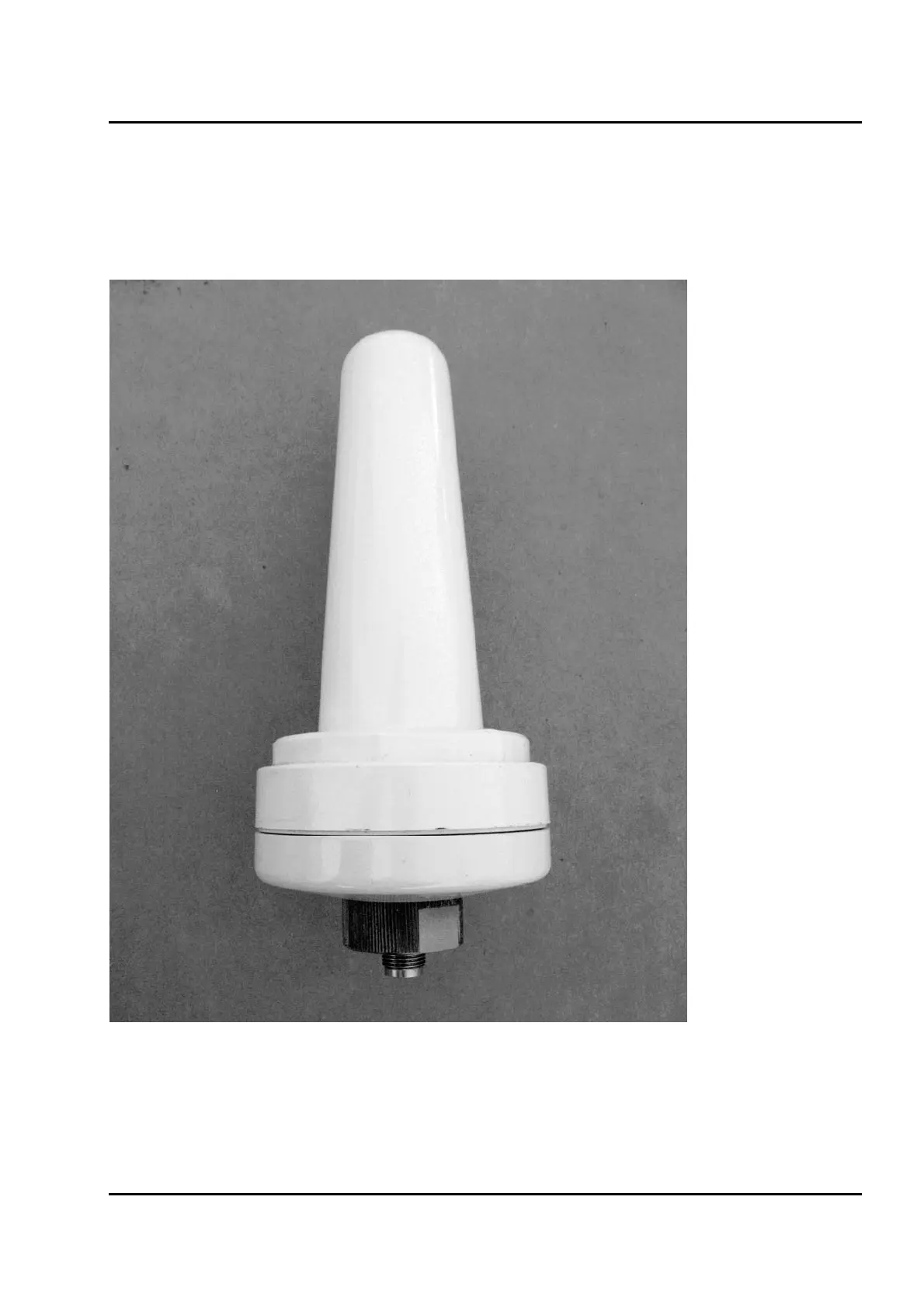

Figure II-4 – Maritime GPS/GLONASS Antenna
