Communication 4-129
Ethernet connector
The following specification is for the model equipped with ethernet connection.
Standard
Fully integrated IEEE 802.3/802.3u–100 Base–TX/10 Base–T Physical Layer
Speed
Auto Negotiation: 10Mbps/100Mbps, Full/Half Duplex

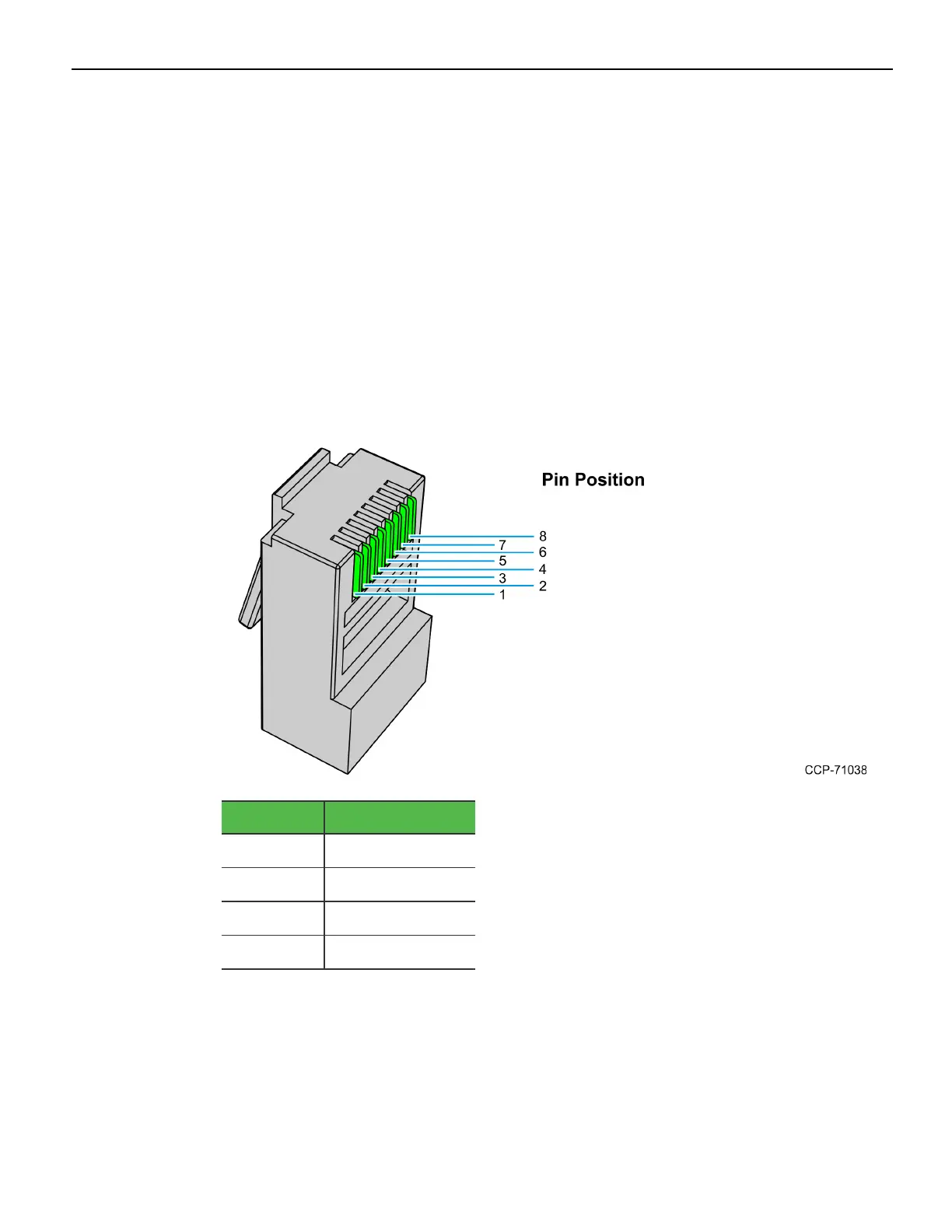

Connector pin assignment
The Ethernet I/Fconnector is an 8P8C modular connector (usually called RJ45) with the
following pin assignments:
Pin Position Signal Description
1 TX+
2 TX–
3 RX+
6 RX–
