3. Projector Adjustment and Connection
114

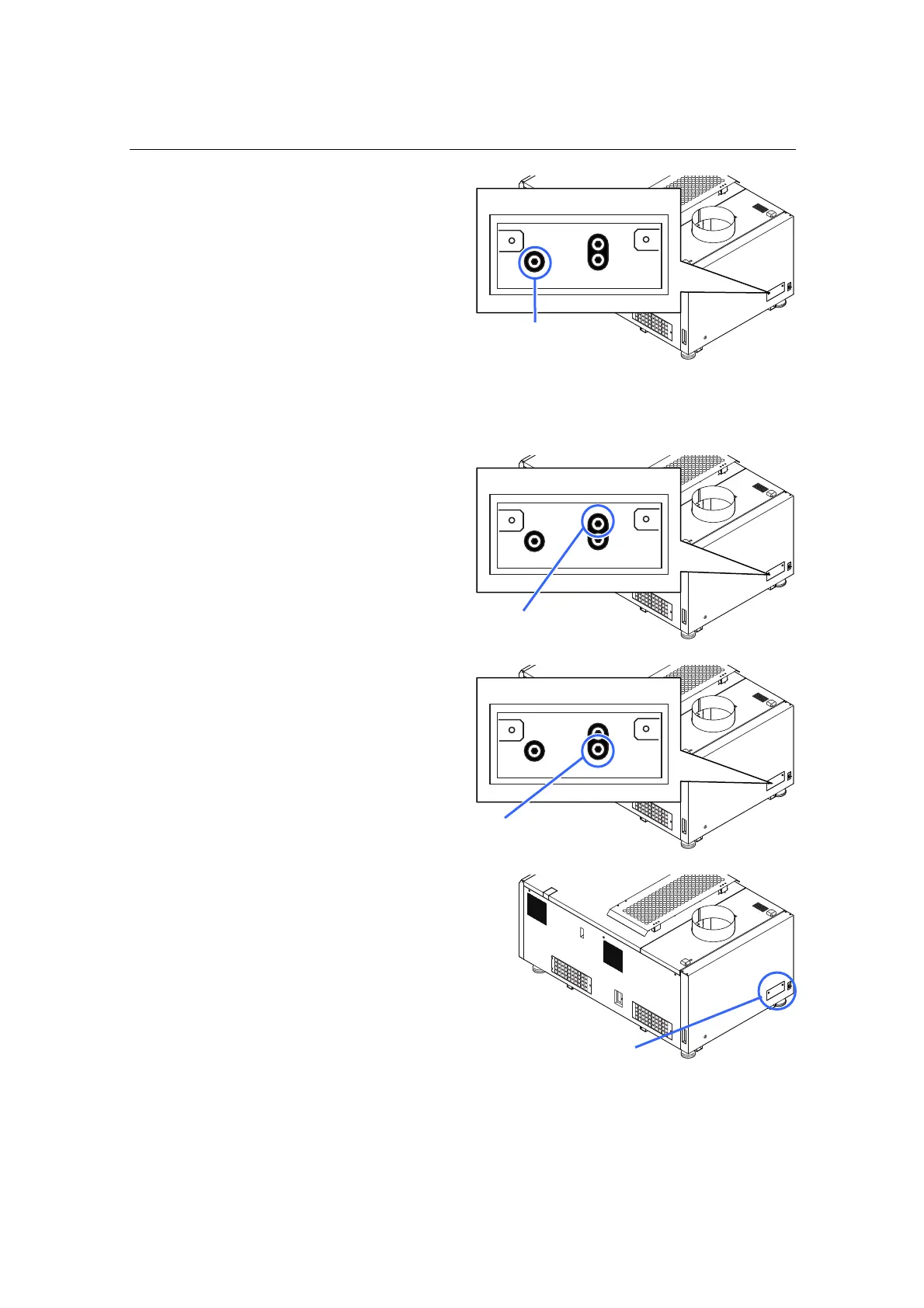

[4] Adjust the Z-axis adjustment
screw to have the maximum
bulb alignment.
With rotating the adjustment screw using a
5-mm hexagonal wrench, set the Peak hold
value in the “Bulb Alignment” screen to the
maximum. Average shows the average
value in the adjustment.
[5] Adjust the X-axis adjustment
screw to have the maximum
bulb alignment.
With rotating the adjustment screw using a
5-mm hexagonal wrench, set the Peak hold
value in the “Bulb Alignment” screen to the
maximum. Average shows the average
value in the adjustment.
[6] Adjust the Y-axis adjustment
screw to have the maximum
bulb alignment.
With rotating the adjustment screw using a
5-mm hexagonal wrench, set the Peak hold
value in the “Bulb Alignment” screen to the
maximum. Average shows the average
value in the adjustment.
[7] Mount the bulb adjustment
panel at the rear of the
projector.
Loosen two screws to mount the bulb
adjustment panel.
This completes the adjustment of the lamp bulb shaft.
Z-axis adjustment screw
X-axis adjustment screw
Y-axis adjustment screw
Bulb adjustment panel
