3.10 Connecting the Various Control Terminal
For control, your projector comes with such ports as the PC control terminal and the Ethernet
port (RJ-45).
PC control terminal
(RS-232)
Use this terminal when controlling the projector in serial
connection from a PC.
Ethernet port
(LAN)
Use this port when controlling the projector in LAN connection
from a PC or a cinema server.
This completes the adjustment and connection of the projector. Next, set up the projector
from the DCC for S2. Refer to the “Digital Cinema Communicator for S2 Installation Manual” for
the procedure.

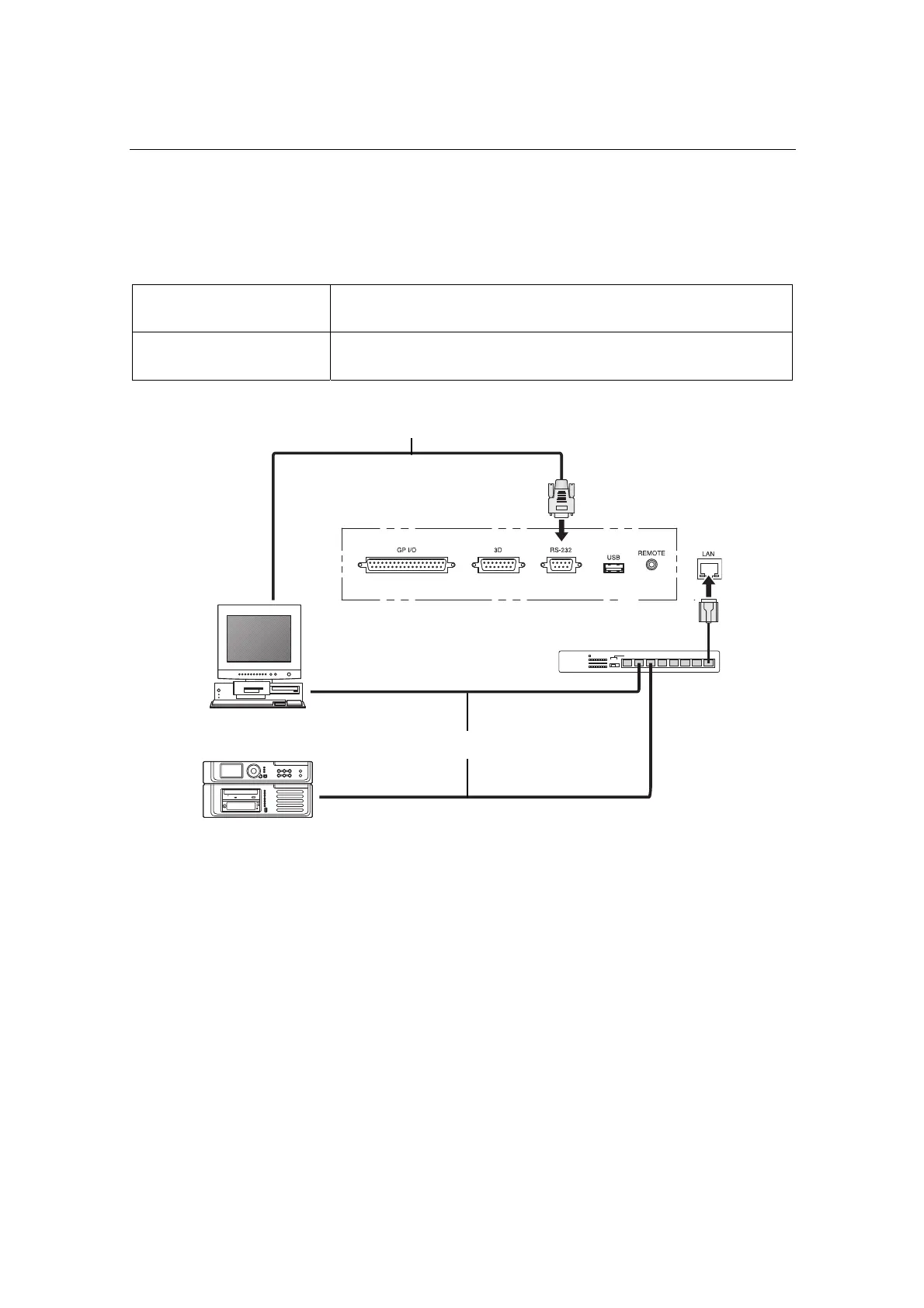

Network hub/Router
PC
Cinema server
RS-232C
Ethernet cable
To Next Page
