5. Steps to upgrade to 4K
154
5.5 Upgrade Kits Parts Replacement
This section describes the procedure of replacing the INTEGRATER ROD, PRISM ASSY, G-FSB
COOLING ASSY, PJDIB PCB and CN6 which is included in upgrade kits (NC-32UP4K01).
5.5.1 Replacement of the INTEGRATER ROD

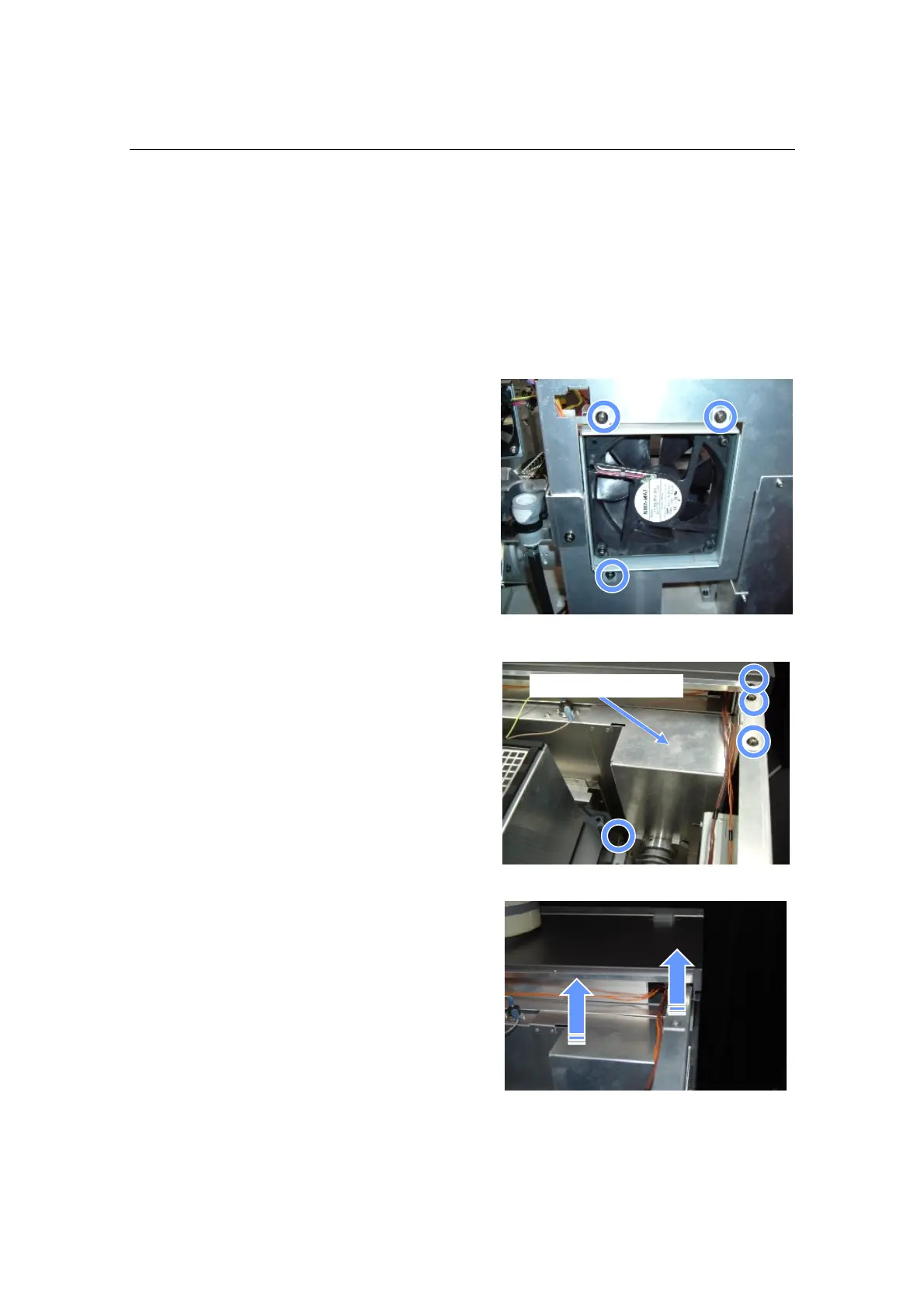

[1] Remove the SIDE FAN by
removing the screws shown in
the picture (3 places).
[2] Remove the SHIELDING PLATE
A.
<1> Remove the screws shown in the picture
(4 places).
<2> Lift up the SHIELDING PLATE A, and
remove it.
SHIELDING PLATE A
