3. Projector Adjustment and Connection
126
3.8.7 Adjusting the Focus
Adjusting the focus is only performed when using the wide converter lens. This adjustment is
not required when using the anamorphic lens.

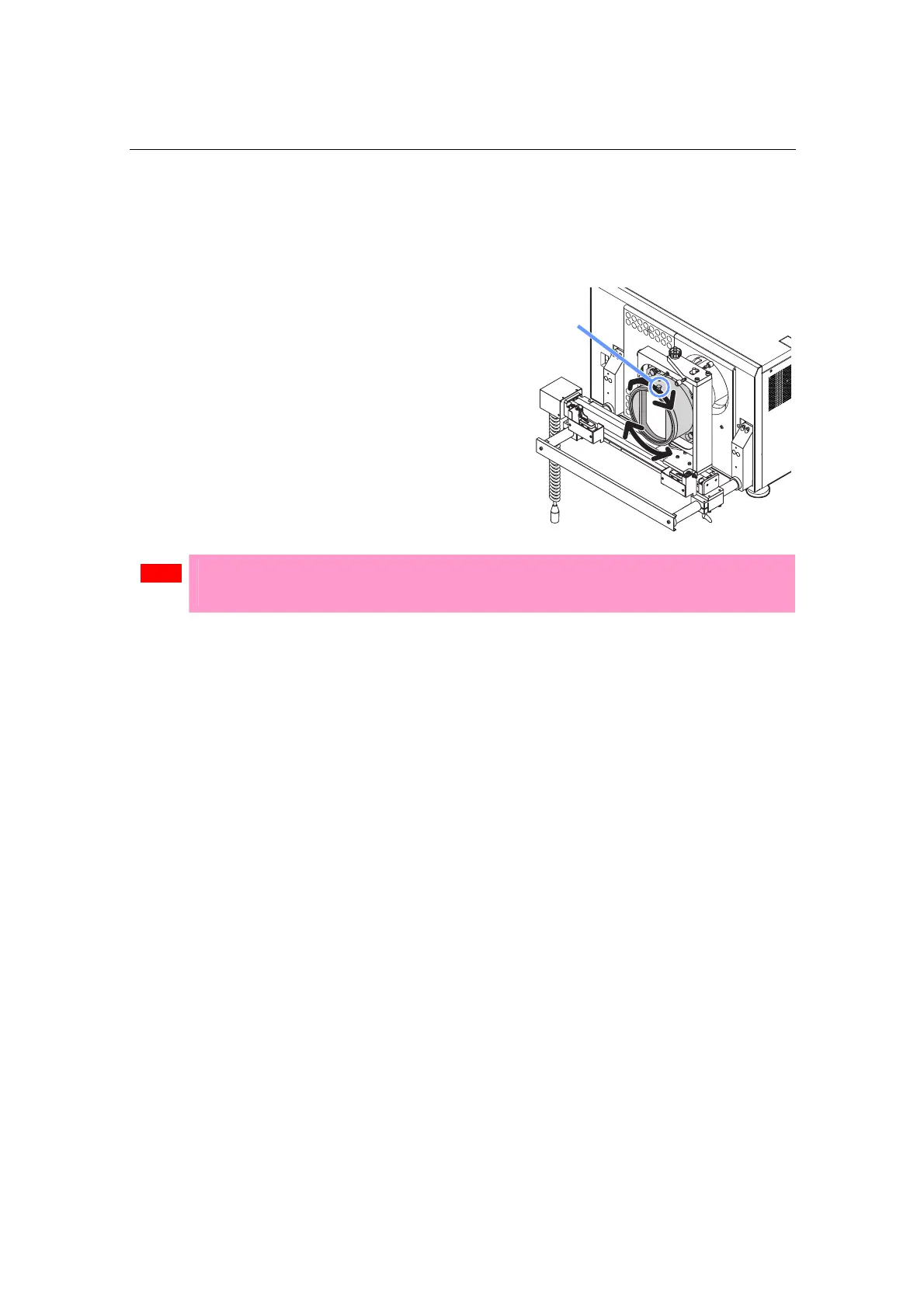

[1] Loosen the tab of the wide
converter lens and adjust by
rotating it along the guide.
[2] After making the adjustment,
tighten the tab to fasten it.
Note
If you are unable to adjust the focus, change the spacing from the primary lens. Refer to “3.8.1
Z-direction Adjustment” (Page 119) for details.
3.8.8 Checking the Adjustment Results
This completes the adjustment of the wide converter lens. Check that the projected image is
substantially at the center of the wide converter lens and that four corners of the projected
image are not eliminated by the wide converter lens (check whether the image has a notch or
not).
If the image is not fully given, repeat the steps in “3.8 Adjusting the Wide Converter Lens or
Anamorp
hic Lens” (Page 118).
Tab
