1.7.7 Mounting and Removing the Top Rear Cover

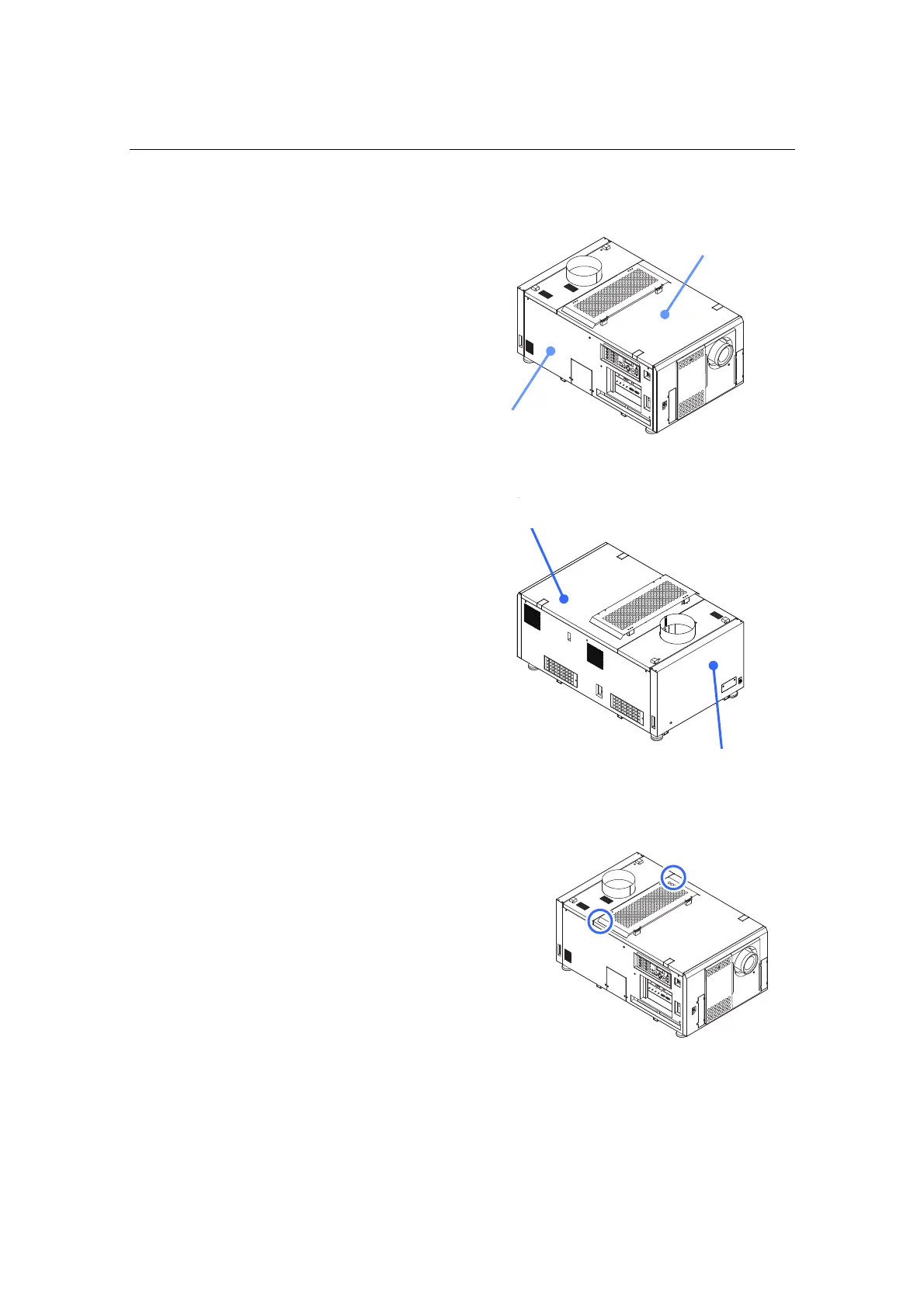

[1] Remove the side cover and
lens side cover.
[2] Remove the top front cover.
1
2
3
4
5
LAMP
MENU
ENTER
DOUSER
KEY
LOCK
EXIT
IMB
6
7
8
[3] Remove the lamp replacement
cover.
[4] Remove fixing screws on the top
rear cover.
Remove 2 fixing screws on the cover.
Take care not to lose removed screws.
1
2
3
4
5
L
A
M
P
M
E
N
U
E
N
T
E
R
D
O
U
S
E
R
K
E
Y
L
O
C
K
E
X
IT
IM
B
6
7
8
[1] Side cover
[2] Top front cover
[1] Lens side cover
