5. Steps to upgrade to 4K
157

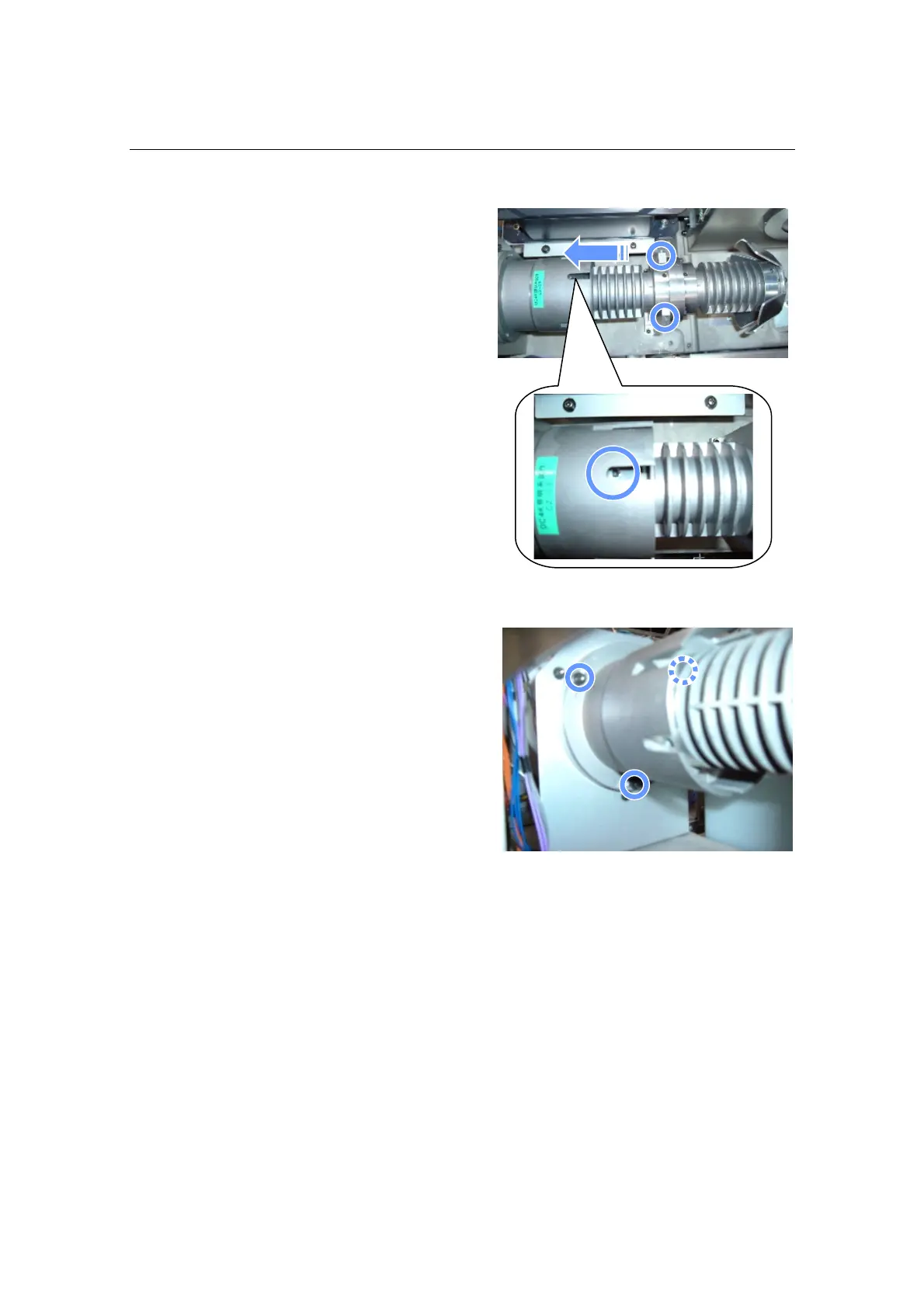

[8] Slide in the new INTEGRATER
ROD.
<1> Mount the new INTEGRATER ROD to the
same place, where the old INTEGRATER
ROD was.
<2> Insert the INTEGRATER ROD. Be carful
that the screw can be seen from the slit
when you adjust the INTEGRATER ROD
[9] Fix the ROD by the screws
removed at step [5].
Screws are needed to adjust the position of
INTEGRATER ROD. So, do not fix the screws
completely.
[10] Mount the SHIELD PLATE,
removed at step [4].
[11] Mount the SHIELDING PLATE
A, removed at step [2].
[12] Mount the SHIELDING PLATE
B, removed at step [3].
[13] Mount the SIDE FAN, removed
at step [1].
