5. Steps to upgrade to 4K
159

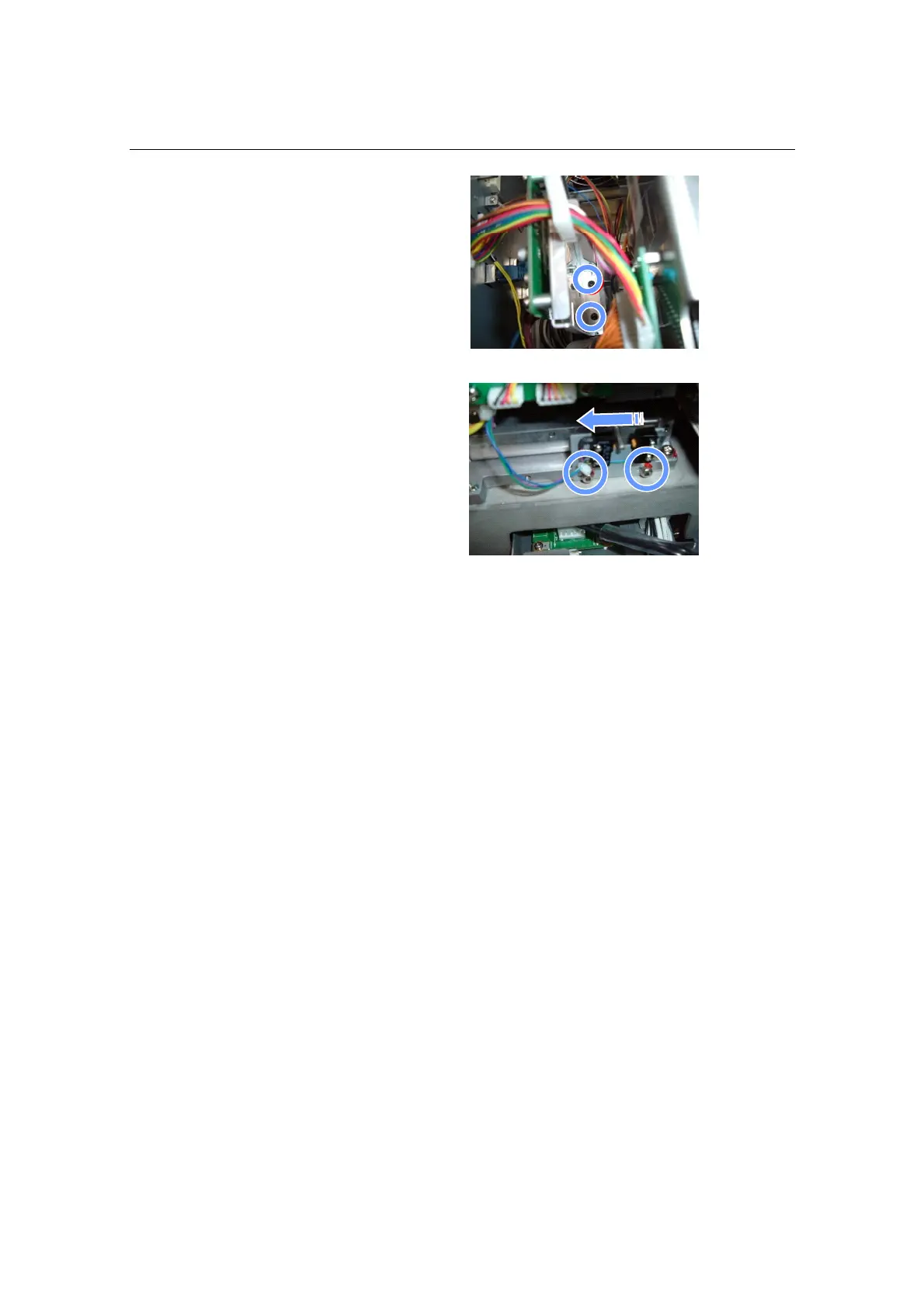

[5] Adjust the Limit Switch on
Lens Mount.
<1> Remove all cables connectors on
MOTOR PWB.
<2> Remove two screws at MOTOR PWB.
<3> Remove the MOTOR PWB.
<4> Loose two screws at Limit Switch
ASSY, and slide the Limit Switch
ASSY in the direction shown in the
picture until it stops.
<5> Fix two screws at Limit Switch
ASSY.
<6> Mount the MOTOR PWB.
<7> Connect all cable connectors on the
MOTOR PWB.
MOTOR PWB
Limit switch ASSY
[6] Mount the 4K PRISM ASSY and fasten the shaft.
[7] Mount the two liquid cooling tubes, removed at step [3].
[8] Mount the TMP SENS cables to the TMP SENS PWB, removed at
step [2].
[9] Mount the LARGE CN and FSB PS cable to the MOTHER PWB,
removed at step [1].
