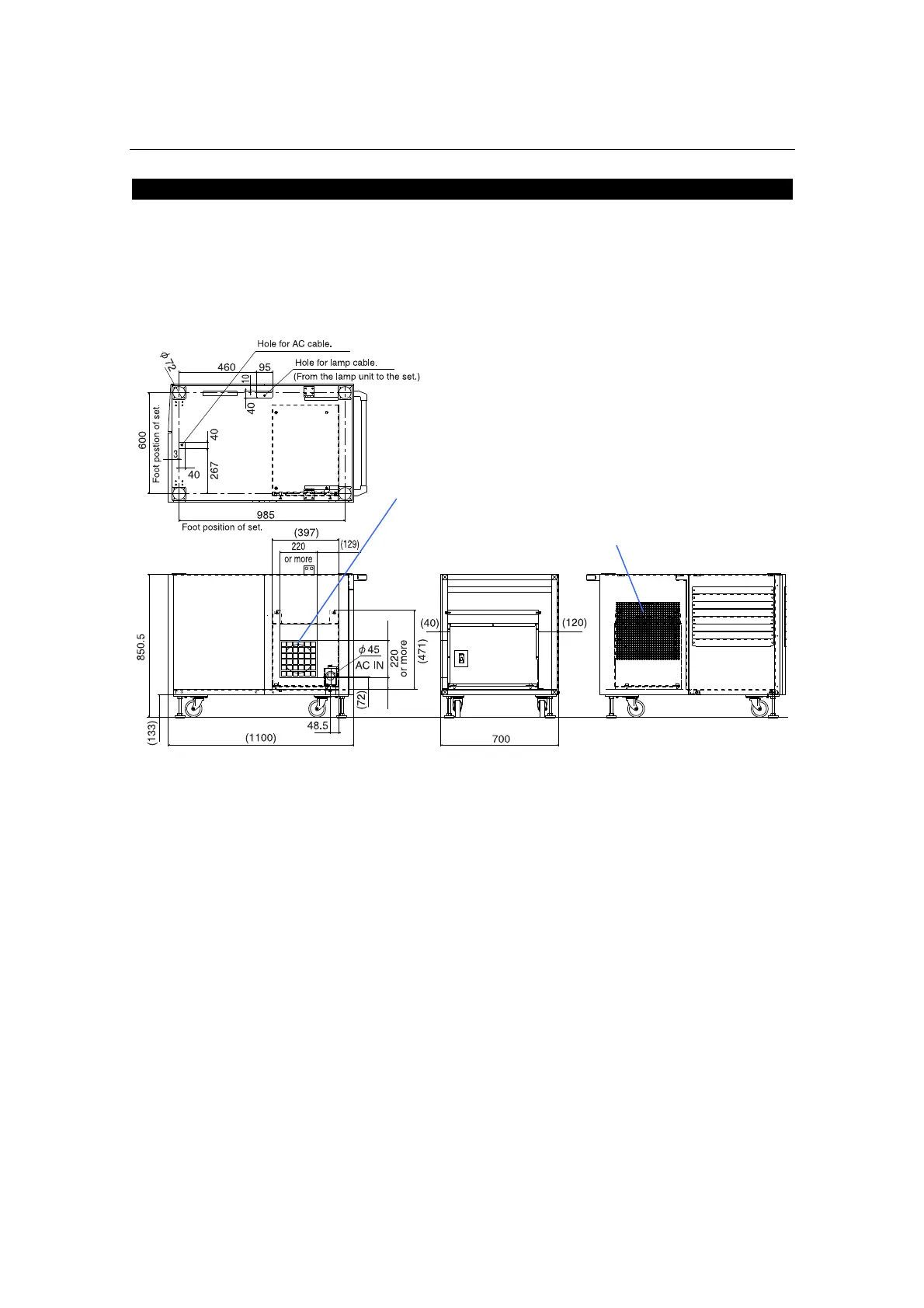

Example where the lamp power supply is installed to the Pedestal (NC-PD02)
Shown below is an example where the lamp power supply (NC-32PS01) is installed to the
pedestal (NC-PD02). Air inlet and Air outlet position will be opposite when installing
NC-32PS02.
< (Front) (Rear)>
Unit; mm
For installation procedure, refer to “2.2.1 Mounting a Lamp Power Supply to the Pedestal”
(P
age 43).
Air outlet opening area (duct structure):
48400 mm
2
or more
Air inlet opening area:
36000 mm
2
or more
