Remove the DIMMs so you can install them in the new controller. To remove the DIMMs you
push apart the ejector tabs and gently lift the DIMM out by its edges.
6.
Remove fans
on page 22
Remove the fans so you can install them in the new controller. You remove the fans by lifting them
from the controller.
Remove controller canister
You remove the failed controller canister so you can replace it with a new one. Disconnect all the
cables then you can slide the controller out of the controller shelf.
Before you begin
• You must use labels to identify each cable that is connected to the controller canister.
• You have an ESD wristband, or you have taken other antistatic precautions.
• You have prepared a flat, static free work area.
Steps
1.
Put on an ESD wristband or take other antistatic precautions.
2.
Label each cable that is attached to the controller canister.
3.
Disconnect all the cables from the controller canister.
Attention: To prevent degraded performance, do not
twist, fold, pinch, or step on the cables.
4. If the controller canister has a HIC that uses SFP+ transceivers, remove the SFPs.
Because you must remove the HIC from the failed controller canister, you must remove any
SFPs from the HIC ports. When you reconnect the cables, you can move those SFPs to the new
controller canister.
5. Confirm that the Cache Active LED on the back of the controller is off.

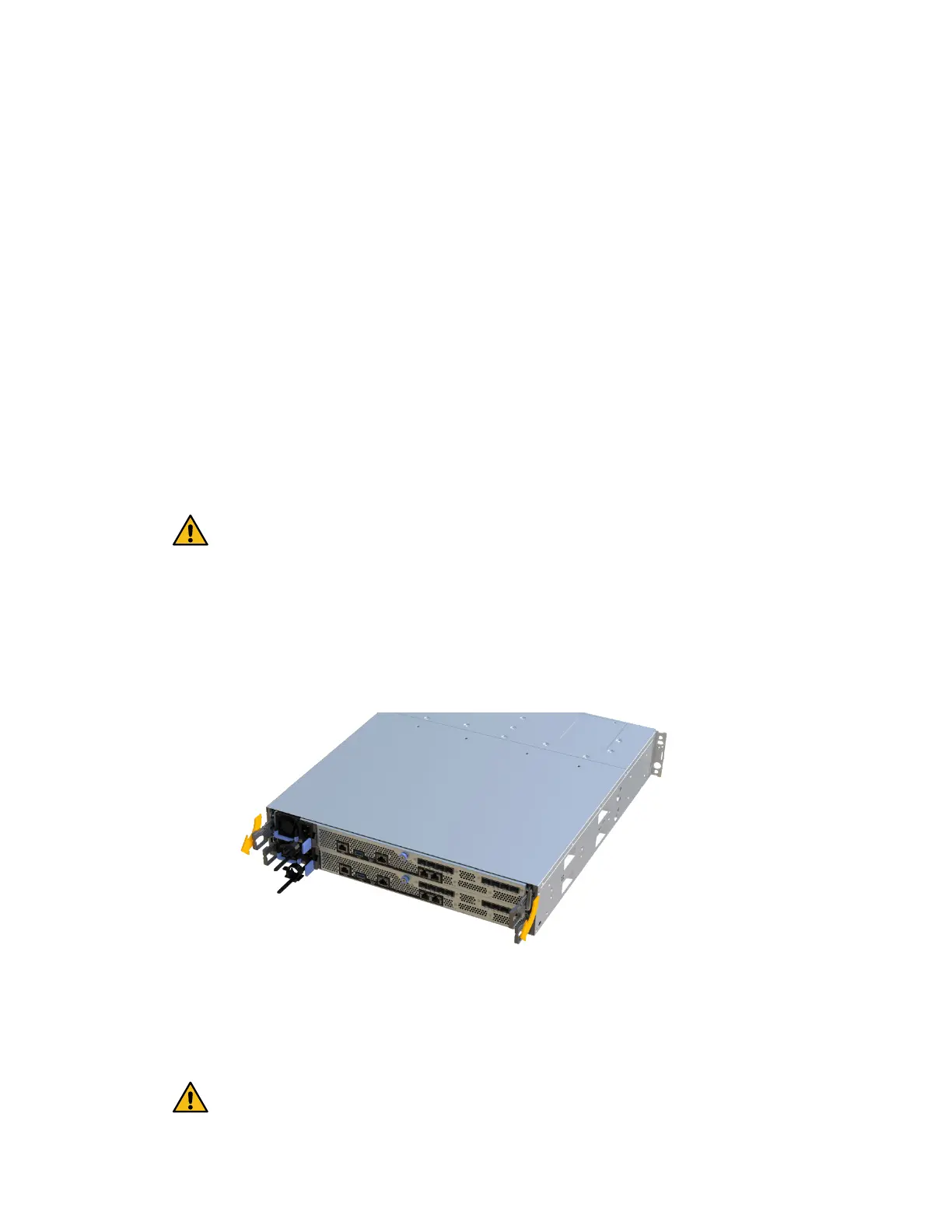

6. Squeeze the handles on either side of the controller, and pull back until it releases from the
shelf.
7. Using two hands and the handles, slide the controller canister out of the shelf. When the front
of the controller is free of the enclosure, use two hands to pull it out completely.
Attention:
Always use two hands to support the
weight of a controller canister.
Maintaining EF300 and EF600 Hardware 16
Controllers
