NetApp E Series Maintaining

8.
Place the controller canister on a flat, static-free surface.
After you finish
Go to Remove battery on page 17.
Remove battery
You remove the battery from the failed controller canister so you can install it in the new controller
canister. Remove the battery by squeezing the tab and disconnecting the connector housing. Then,
you can lift the battery out of the controller.
Steps

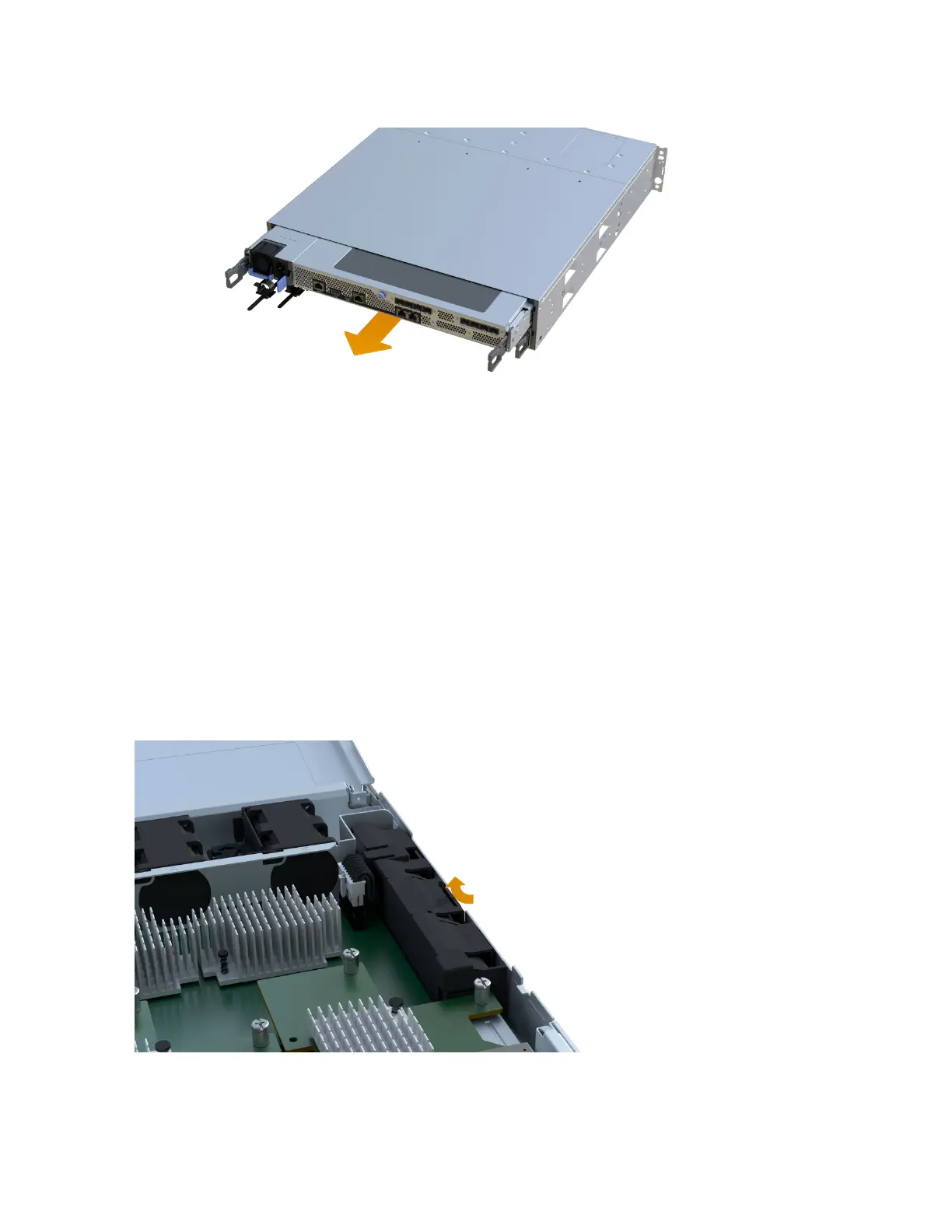

1. Remove the controller canister's cover by unscrewing the single thumbscrew and lifting the lid
open.
2. Locate the 'press' tab on the side of the controller.
3. Unlatch the battery by pressing the tab and squeezing the battery casing.
Maintaining EF300 and EF600 Hardware 17
Controllers

NetApp E Series Specifications

General

Form Factor	2U, 4U
Drive Types	SSD
Host Interface	SAS, iSCSI, FC, IB
RAID Levels	RAID 0, 1, 5, 6, 10
Operating System Compatibility	Windows, Linux, VMware
Management Software	SANtricity
