Neural QUAD CORTEX - 4-Cable Method (4 CM)

64Setup Examples

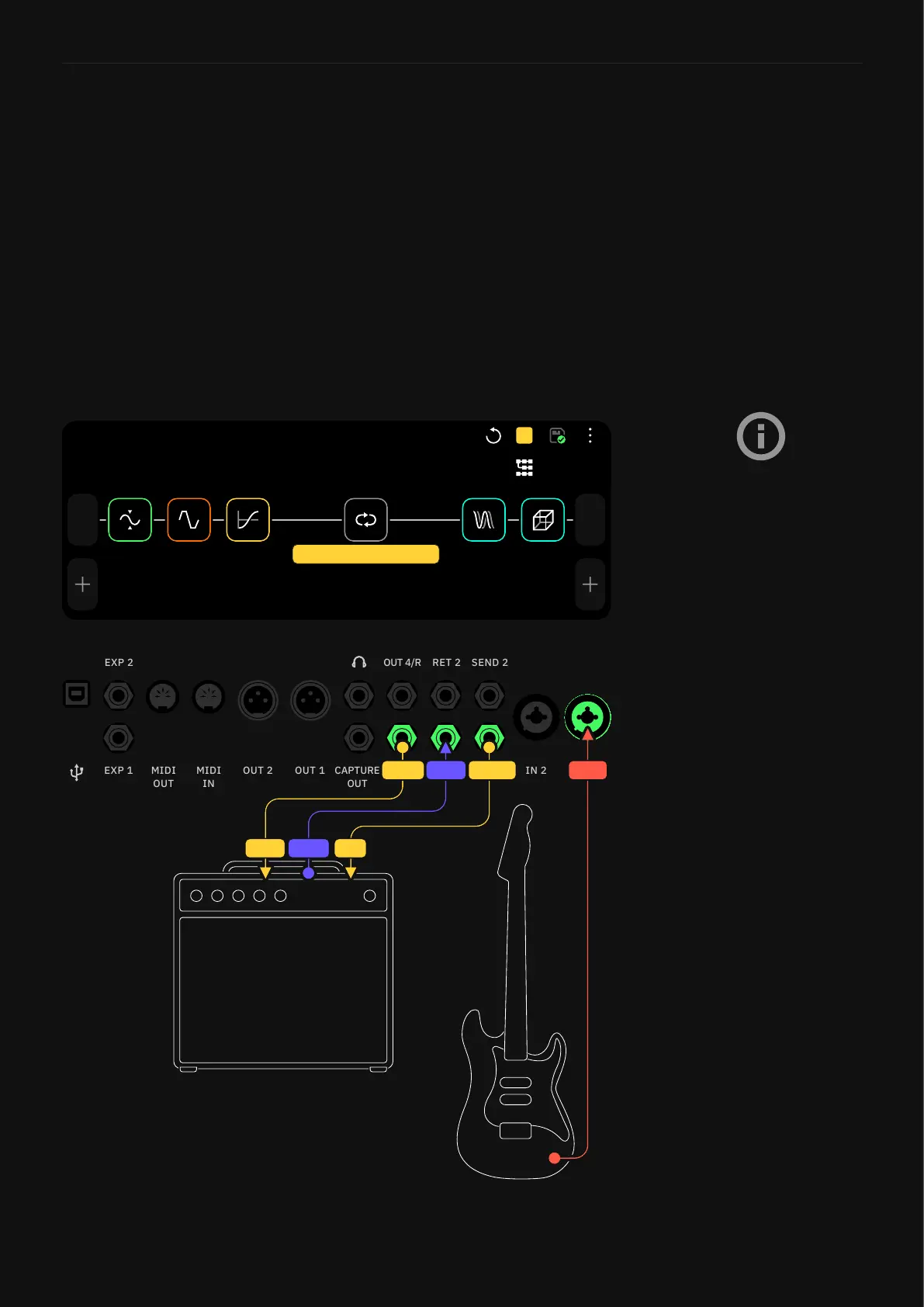

4-Cable Method (4CM)
The 4-Cable Method allows you to use effects in different stages of
the signal chain (Pre and Post) in conjunction with an amplier and
cabinet.
EXP 2
EXP 1
IN 2
IN 1
OUT 4/R
OUT 3
OUT 1
OUT 2
MIDI
IN
MIDI
OUT
SEND 2
SEND 1
RET 2
RET 1
CAPTURE
OUT
IN 1SEND 1
IN
OUT 3/L
RET
RET 1
SEND
The signal from devices placed
before the FX Loop block will be
sent straight to the amplier’s
input.
The signal from devices placed
after the FX Loop block will be
sent to the amplier’s FX Loop.
3
Out
1
In
FX Loop 1 (Send 1 + Return 1)
PRESET
A
A1 4CMv2 Preset
1. Connect your instrument to INPUT 1.
2. Connect the amplier’s input to SEND 1.
3. Connect the amplier’s FX Send to Quad Cortex’s RET 1.
4. Connect the amplier’s FX Return to Quad Cortex’s OUT 3.
5. Place an FX Loop 1 block on The Grid.
