Nilfisk-Advance SC500 - Checking;Replacing REV Motor Carbon Brushes

Scrub System, REV 99Service Manual – SC500
Checking/Replacing REV Motor Carbon Brushes
1. Remove the REV deck.
2. Place the deck on a workbench.
Note: The motor cannot be removed with the REVdeckttedtothemachine.
3. Remove the connector holder.

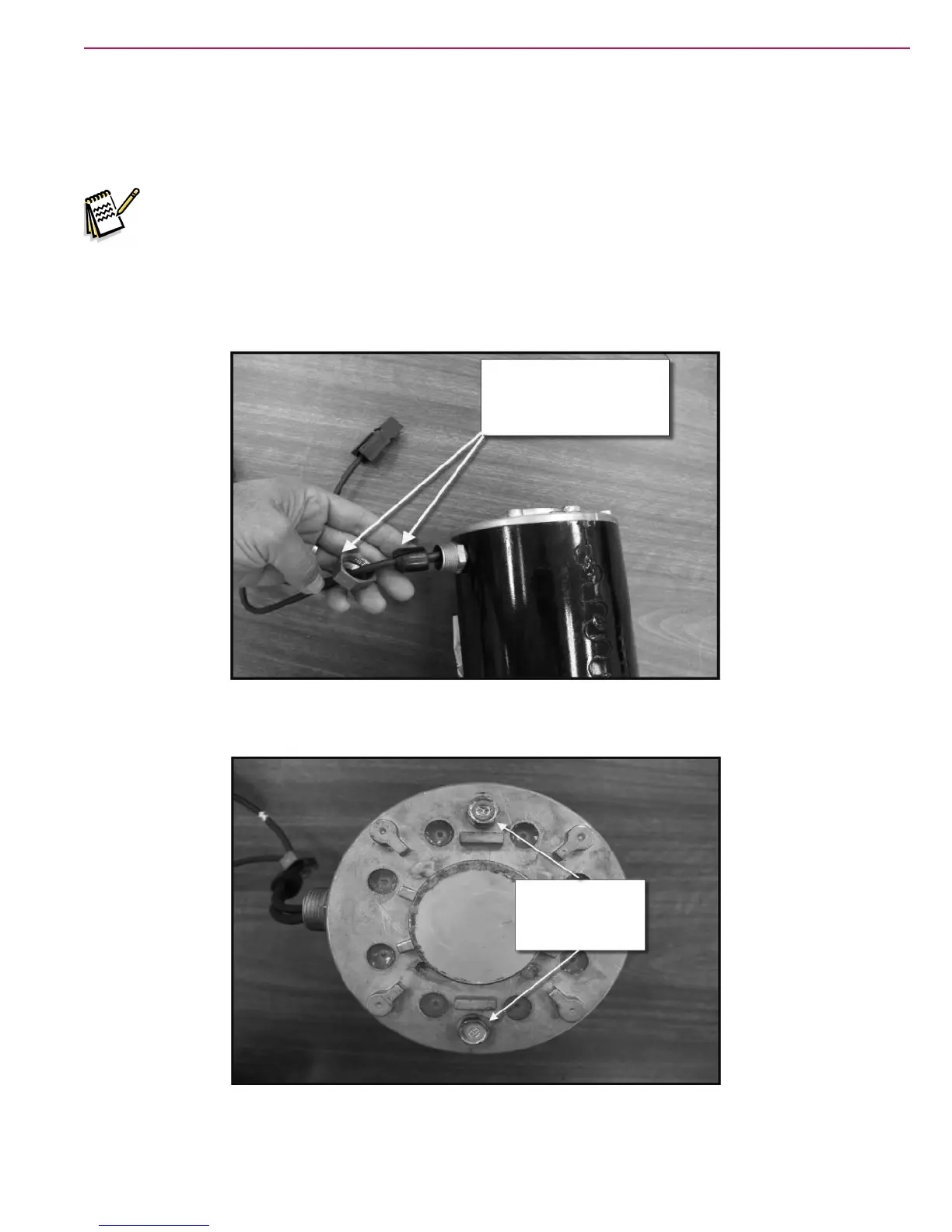

4. Remove the wire mounting nut and the rubber gasket.
Remove the wire
mounting nut and the
rubber gasket.
Figure 11
5. Remove both nuts.
Remove both
nuts.
Figure 12
