Recovery System 73Service Manual – SC500
Container and Vacuum Motor Disassembly/Assembly
Disassembly
1. Remove the operator key.
2. Disconnect the red battery connector.
3. If present, drain the recovery tank, then lift it.
4. Unscrew the 4 screws (A) (Figure 8) and remove the case (B).
5. Unscrew the screw (C) holding the vacuum motor wiring.
6. Unscrew the 4 screws (D) and remove the vacuum motor unit (E).

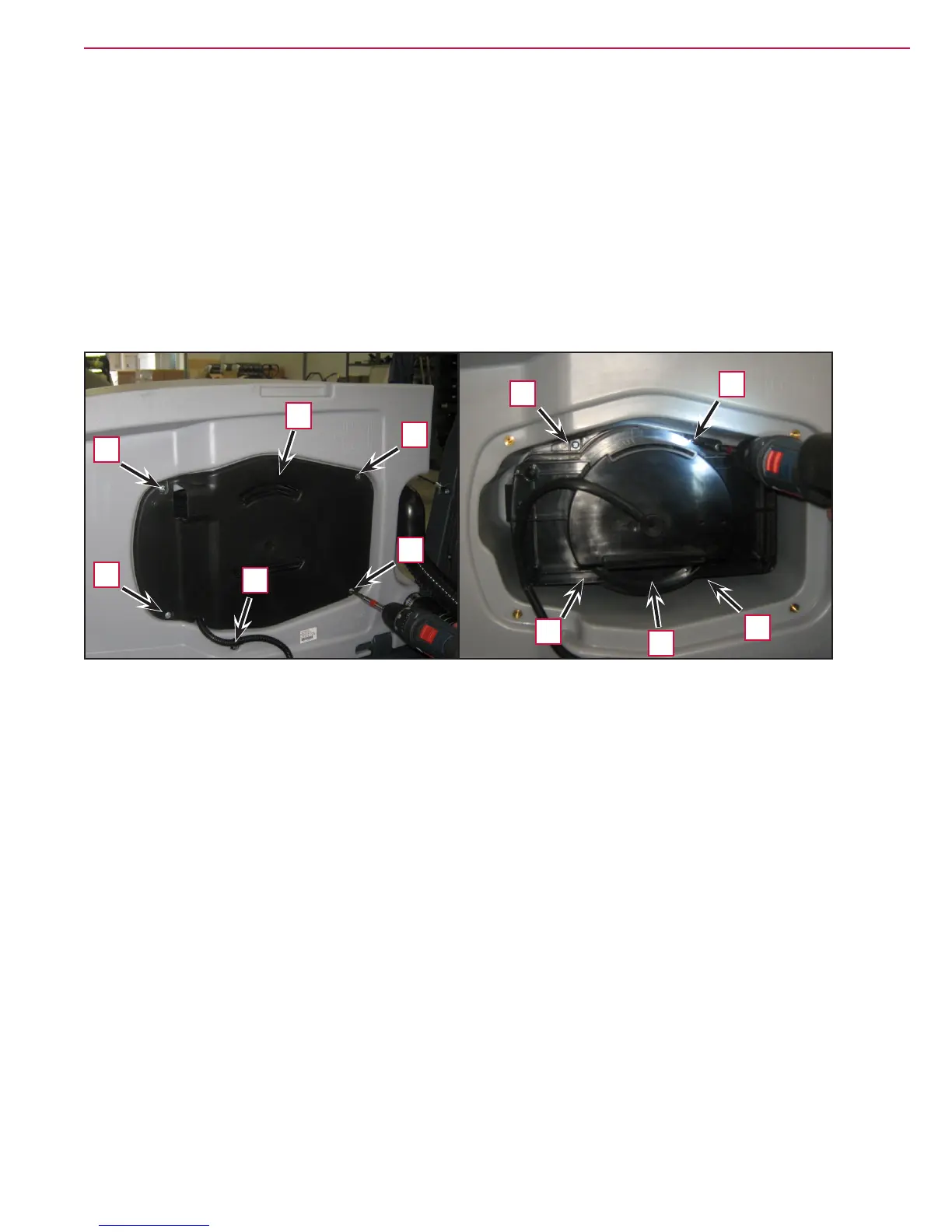

Figure 8
D
D
D
C
B
E
D
A
A
A
A
