Nilfisk-Advance SC500 Service Manual

Squeegee System 122Service Manual – SC500
Removal and Installation
Disassembly/Assembly of the Gas Spring on the Squeegee Support
1. Drive the machine on a level oor or on a hoisting system to facilitate the disassembly procedures.
2. Lower the squeegee and remove it from the support.
3. Unscrew the nut (A) (Figure 4), retaining the bushings, washers and spacers (B).
4. Unscrew the screw (C), retaining the nut, washers and spacers (D).
5. Unscrew the screw (E), retaining the nut and washers.
6. Remove and replace the gas spring (F).
Assembly
7. Assemble the components in the reverse order of disassembly.

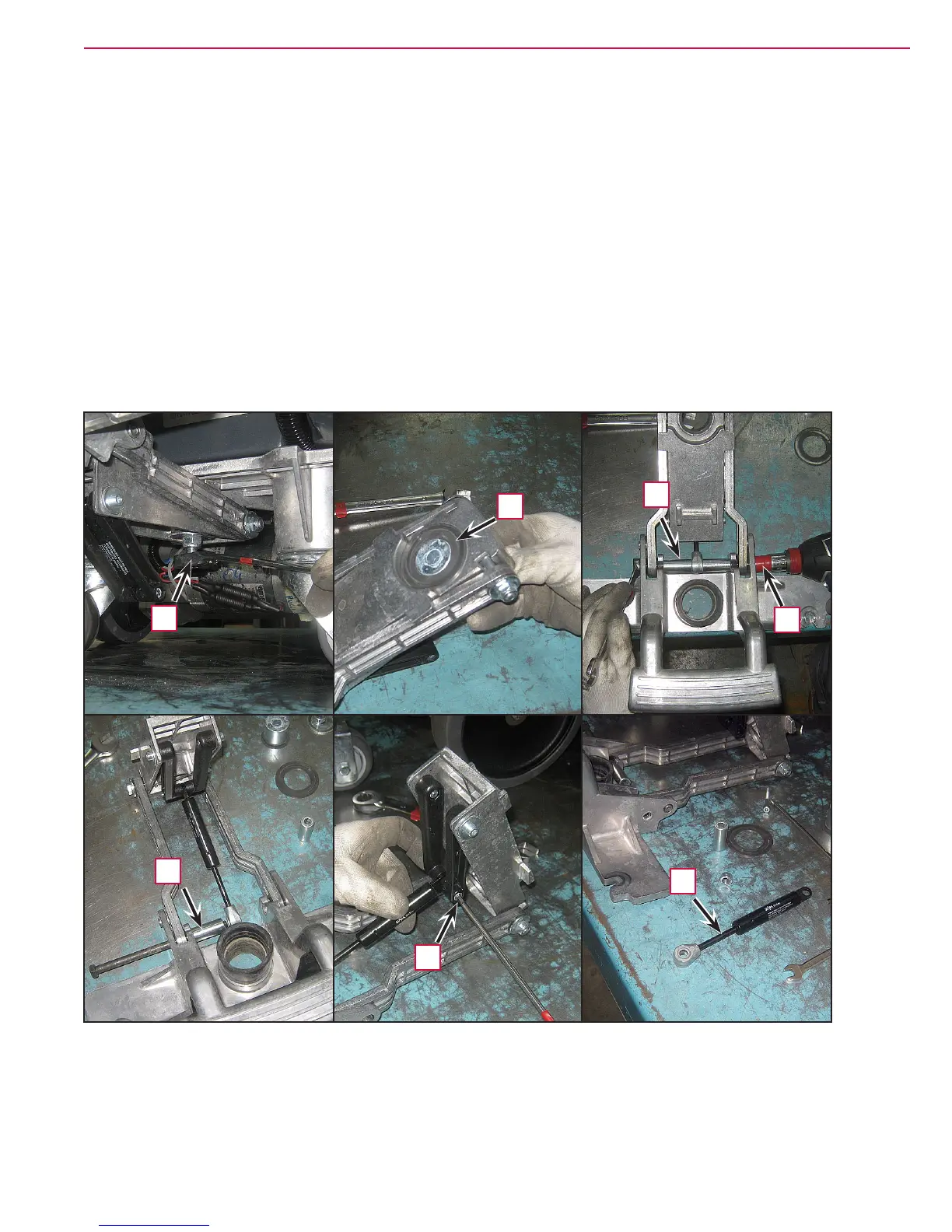

Figure 4
B
F
C
D
D
E
A
