Scrub System, Disc 77Service Manual – SC500
Brush Motor Disassembly/Assembly
Disassembly
1. Remove the brush deck.
2. Working at the bench, remove the screw (A) (Figure 12) of the brush motor.
3. Use a puller to remove the brush hub (B).
4. Remove the screws (C).
5. Remove the brush motor (D).
6. Recover the key (E).
Assembly
7. Assemble the components in the reverse order of disassembly.
Note: For further information on deck components see the Spare Parts List.

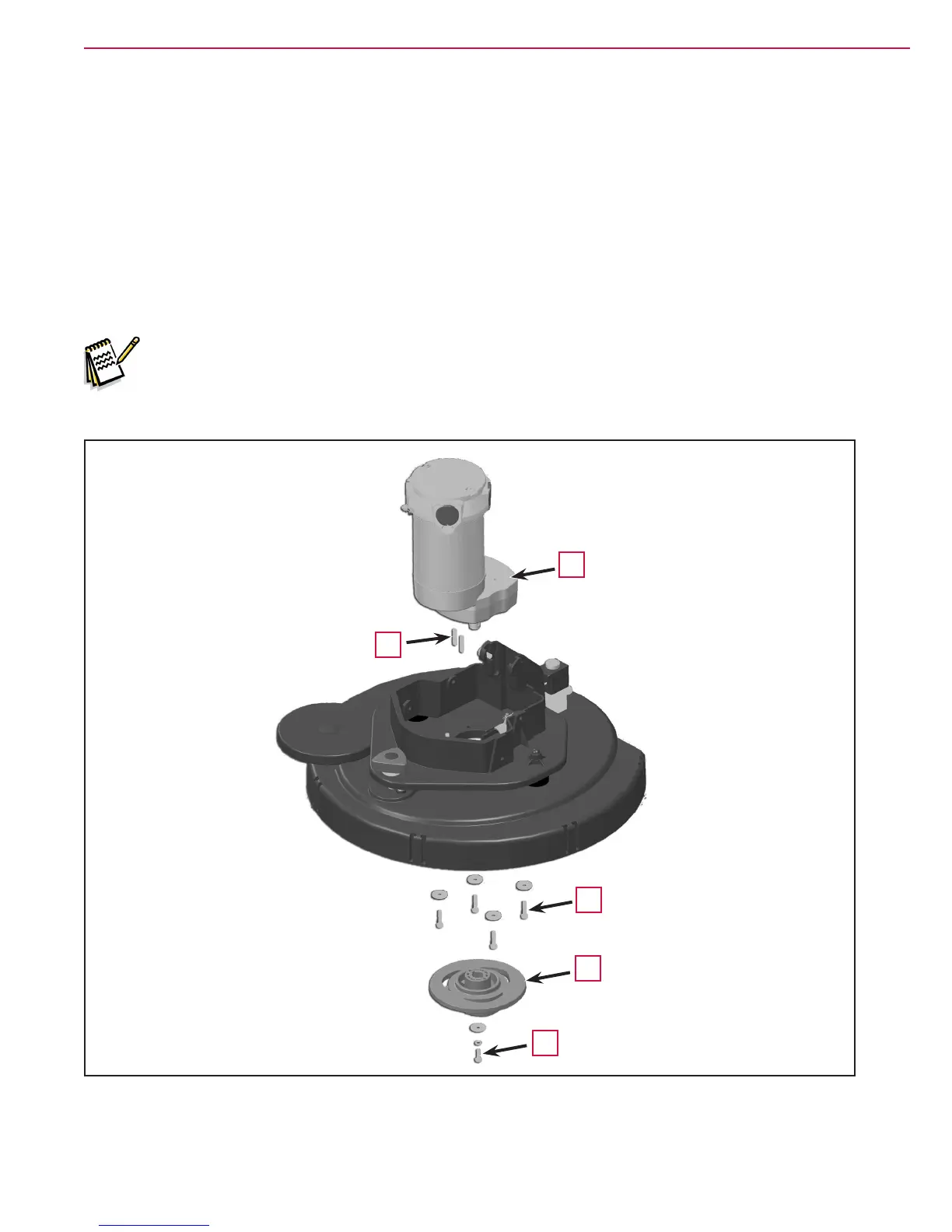

Figure 12
