Control System 36Service Manual – SC500
Specications

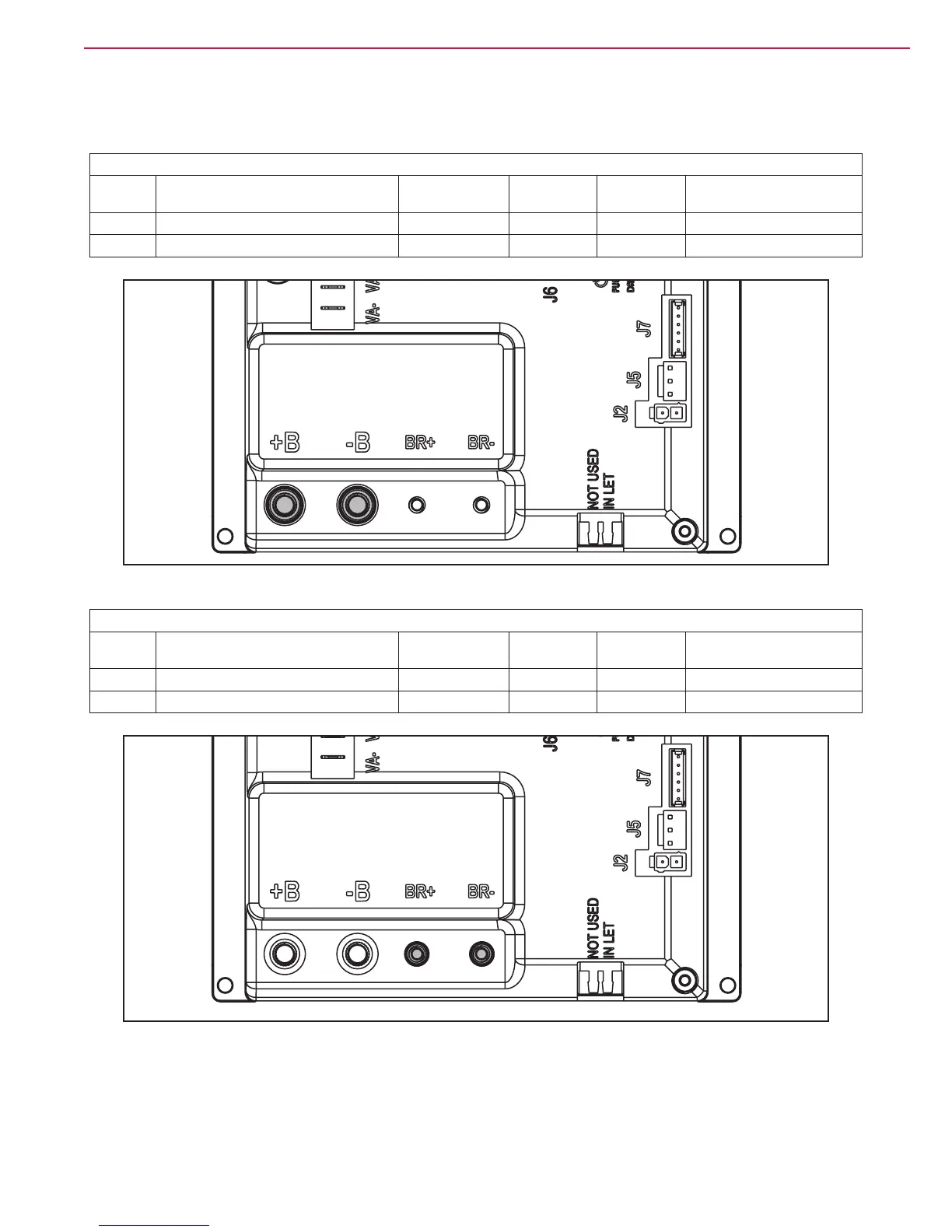

Function Board (EB1) Connectors
(Figure 18) Power connections (Ø6mm male RADSOK terminals - AMPHENOL SK 200800532 101 or equivalent)
Ref. Description
Electronic board
in/out
V ref. I max. Connected to
B+ Electronic board power supply + in 24V 125A BAT+
B- Electronic board power supply - in 24V 125A BAT-
Figure 18
(Figure 19) Drive connections (Ø3.6mm male RADSOK terminals - AMPHENOL P/N N01 036 6501 001 or equivalent)
Ref. Description
Electronic board
in/out
V ref. I max. Connected to
BR+ Brush motor + out 24V 50A M1+
BR- Brush motor - out 24V 50A M1-
Figure 19
