Nilfisk-Advance SC500 Service Manual

Scrub System, Disc 77Service Manual – SC500
Brush Deck Actuator Disassembly/Assembly
Disassembly
1. Lower the brush deck.
2. Switch off the machine and disconnect the battery connector.
3. Remove the cover and disconnect the actuator connector (A) (Figure 13).
4. Unscrew the screw (B) of the lower pin, retaining the bushings.
5. Remove the screws (C), retaining the plates (D).
6. Remove the actuator (E).
Assembly
7. Assemble the components in the reverse order of disassembly.

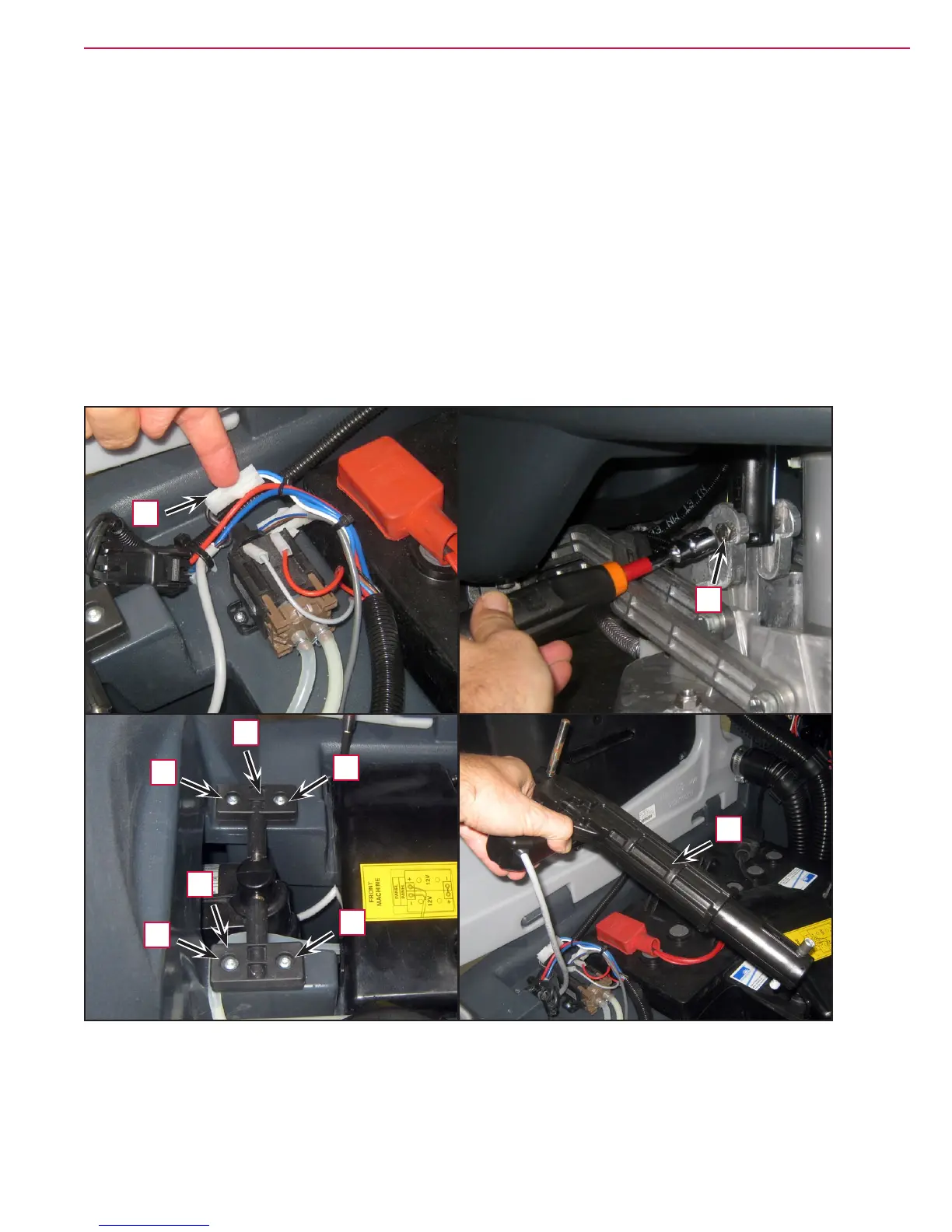

Figure 13
E
C
C
C
C
B
D
D
A
