Nilfisk-Advance SC500 Service Manual

Solution System 113Service Manual – SC500
Detergent Pump Disassembly/Assembly
1. Drive the machine on a level oor.
2. Switch off the machine and disconnect the battery connector.
3. Lift the recovery tank.

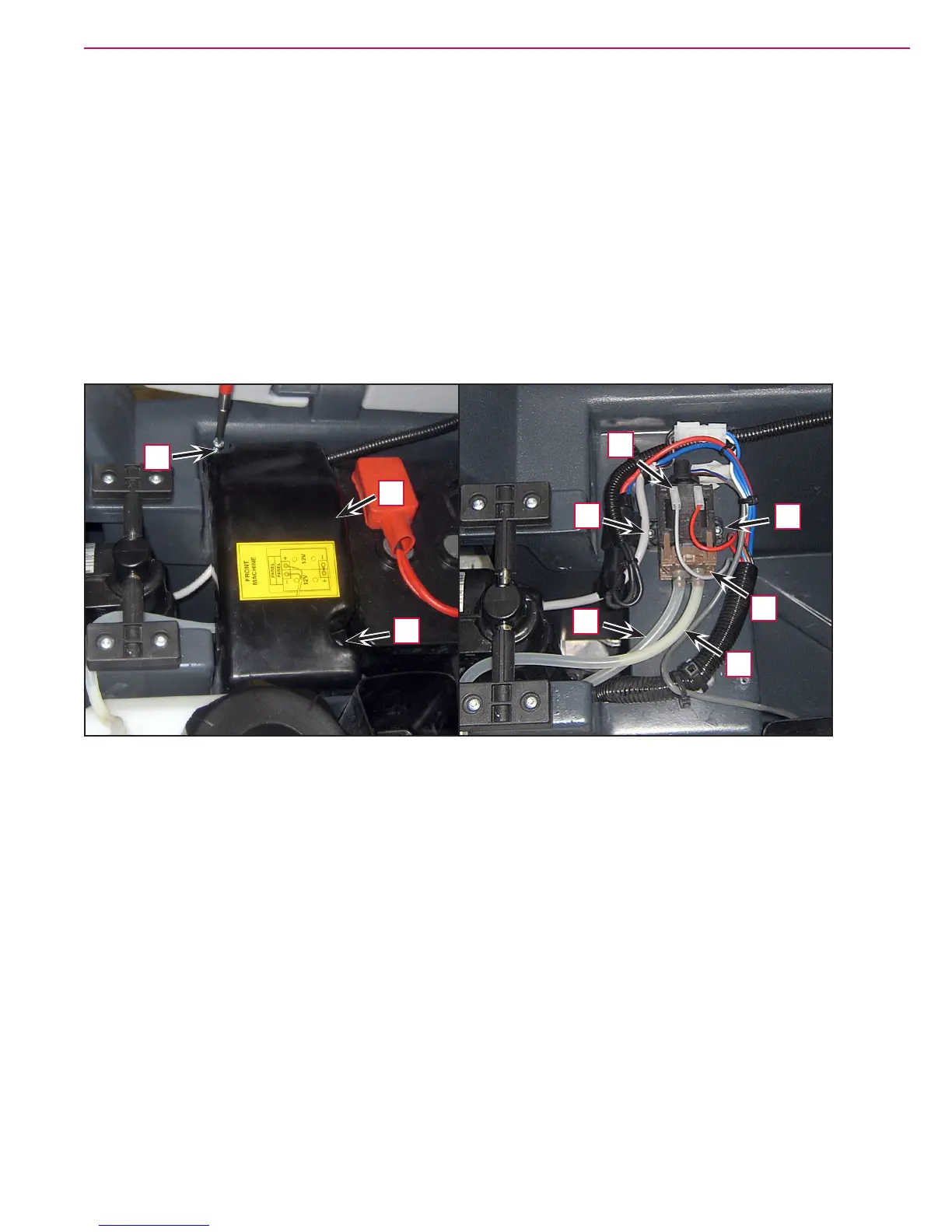

4. Unscrew the two screws (A) (Figure 9) and remove the cover (B).
5. Disconnect the connectors (C) and the tank hose (D) and brush hose (E).
6. Unscrew the two screws (F) and remove the detergent pump (G).
Assembly
7. Assemble the components in the opposite order to that they were removed in, ensuring the supply hoses
(D) and (E) are correctly tted on the detergent pump.
Figure 9
B
A
C
D
F
G
E
F
A
