Nilfisk-Advance SC500 Service Manual

Scrub System, REV 102Service Manual – SC500
REV Deck Actuator Disassembly/Assembly
Disassembly
1. Lower the brush deck.
2. Switch off the machine and disconnect the
battery connector.
3. Remove the cover and disconnect the actuator
connector (A) (Figure 17).
4. Unscrew the screw (B) of the lower pin,
retaining the bushings.
5. Remove the screws (C), retaining the plates (D).
6. Remove the actuator (E).
Assembly
7. Assemble the components in the reverse order of
disassembly.

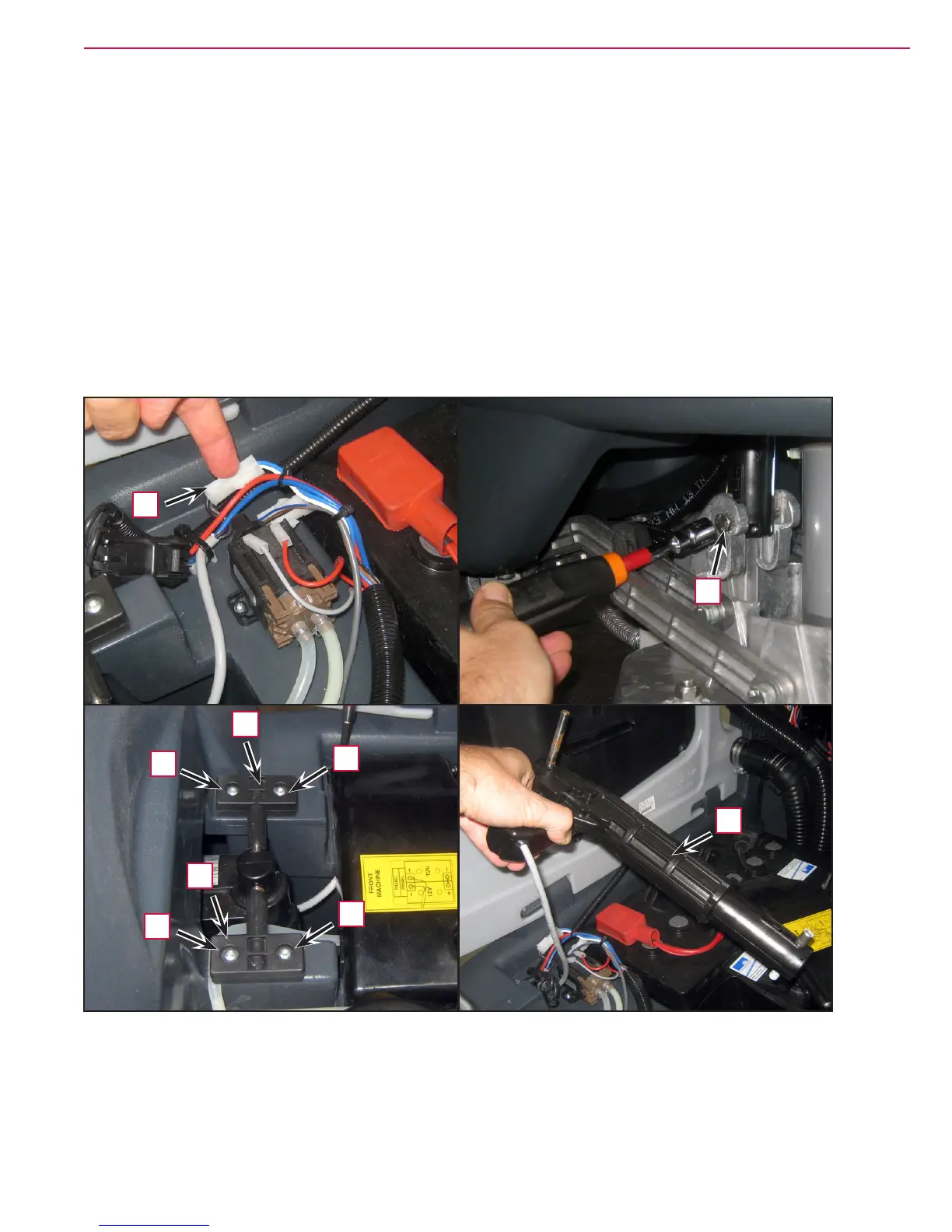

Figure 17
E
C
C
C
C
B
D
D
A
