Control System 35Service Manual – SC500
Display Board (EB2) and Dashboard Instrument Board (EB3) Removal/Replacement
(Continues)
Dashboard Instrument Board
8. Perform points 1 to 5 for removal of the display board.
9. Disconnect the following connections sequentially (Figure 17):
◦ (A) Flat connection (J3).
◦ (B) Flat connection (J4).
10. Carefully raise the dashboard instrument board (C), detaching it from the cover (D).
Assembly
11. Assemble the components in the reverse order of disassembly and note the following:
◦ Before fastening the dashboard instrument board (C), ensure that the at connections (A) and (B) are
correctly run through the slots in the cover (D), then glue the board to the cover itself.

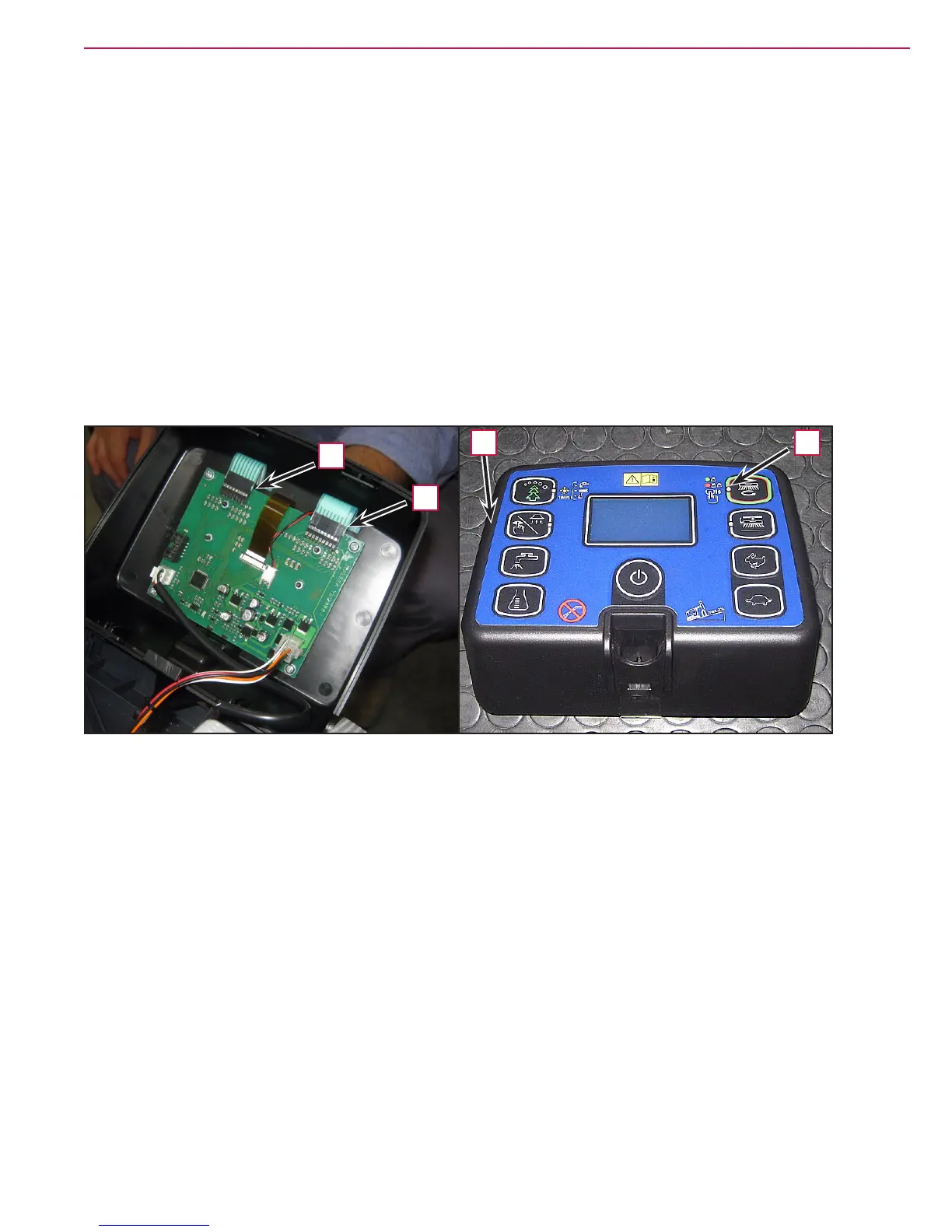

Figure 17
CD
B
A
