Recovery System 74Service Manual – SC500
Container and Vacuum Motor Disassembly/Assembly (Continues)

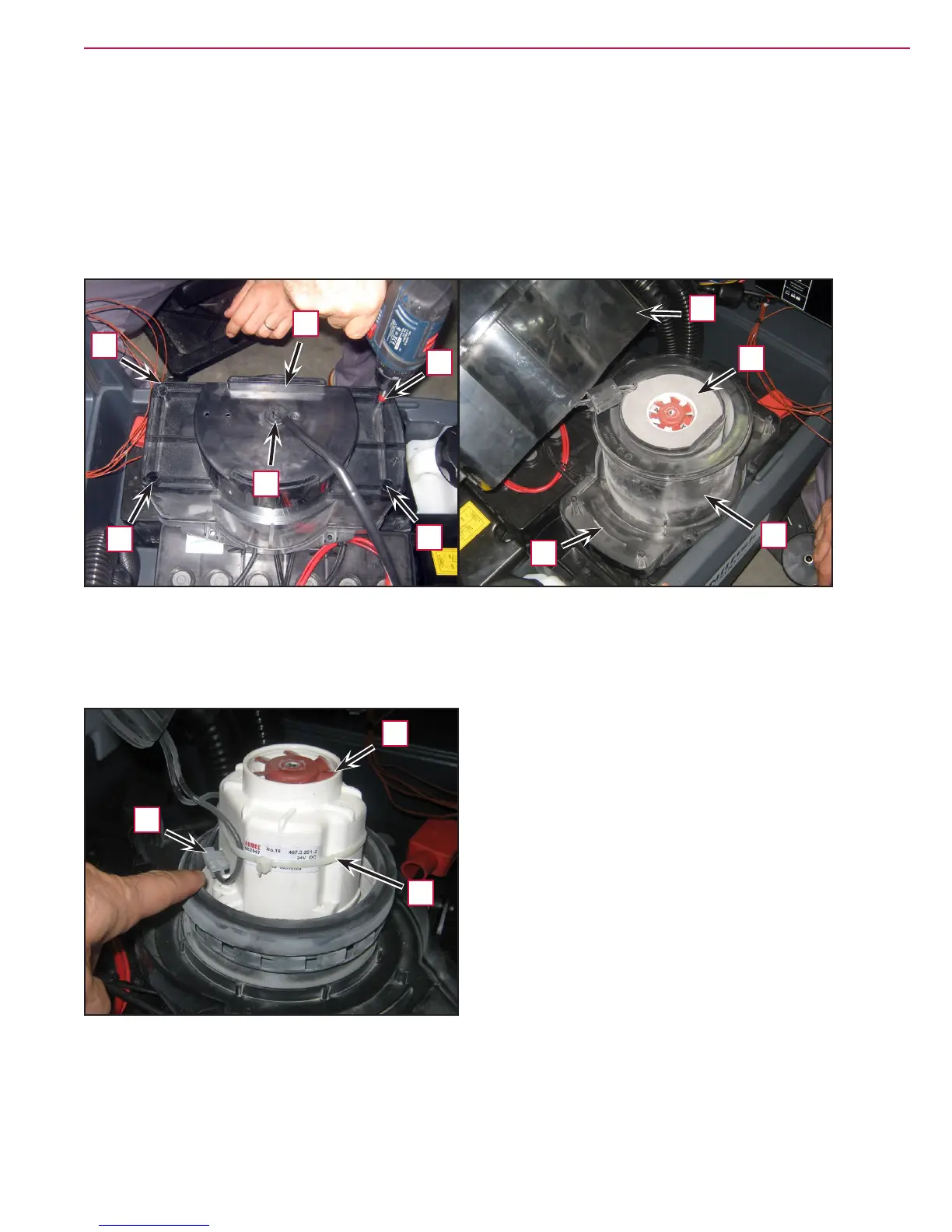

7. Unscrew the 4 screws (F) and cut the retaining strap (G) (Figure 9).
8. Remove the external soundproong support (H) from the internal soundproong support (I).
9. Clean any dirt from the space between the two containers.
10. Remove the seal (J) and the internal support (K).
11. Clean any dirt from the space between the container and the motor.
Figure 9
J
H
I
H
F
F
K
F
F
G
12. Cut the strap (L) and disconnect the power supply (M) (Figure 10).
13. Remove the motor (N).
Figure 10
N
L
M
