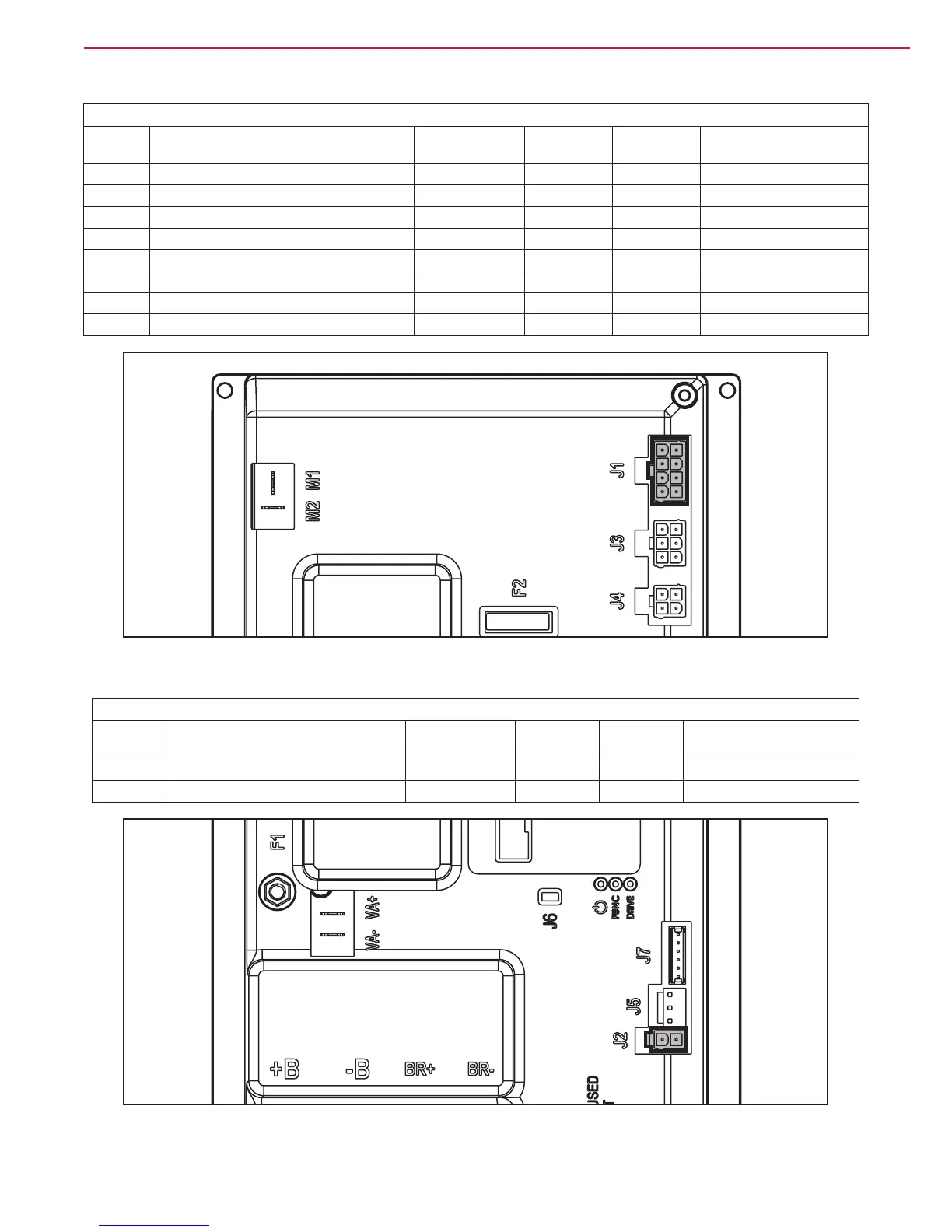

Control System 38Service Manual – SC500
Function Board (EB1) Connectors (Continues)
(Figure 22) J1: MOLEX MINIFIT type, 8-ways vertical
PIN Description Electronic board
in/out
V ref. I max. Connected to
1 Detergent pump power supply + out 24V <1A M4
2 Detergent pump power supply - out 0V <1A M4
3 Deck actuator power supply +/- out 0/24V 8A M5
4 Deck actuator power supply -/+ out 0/24V 8A M5
5 Power supply for ADV versions congurator out 0V <1A J1.6
6 ADV versions congurator return in 0V <1A J1.5
7 Power supply for deck congurator out 0V <1A J1.8
8 Deck congurator return in 0V <1A J1.7
Figure 22
(Figure 23) J2: MOLEX MINIFIT type, 2-ways vertical
PIN Description Electronic board
in/out
V ref. I max. Connected to
1 Solenoid valve power supply + out 24V 1A EV1
2 Solenoid valve power supply - out 0V 1A EV1
Figure 23
