Scrub System, Disc 77Service Manual – SC500
Brush Deck Disassembly/Assembly (Continues)

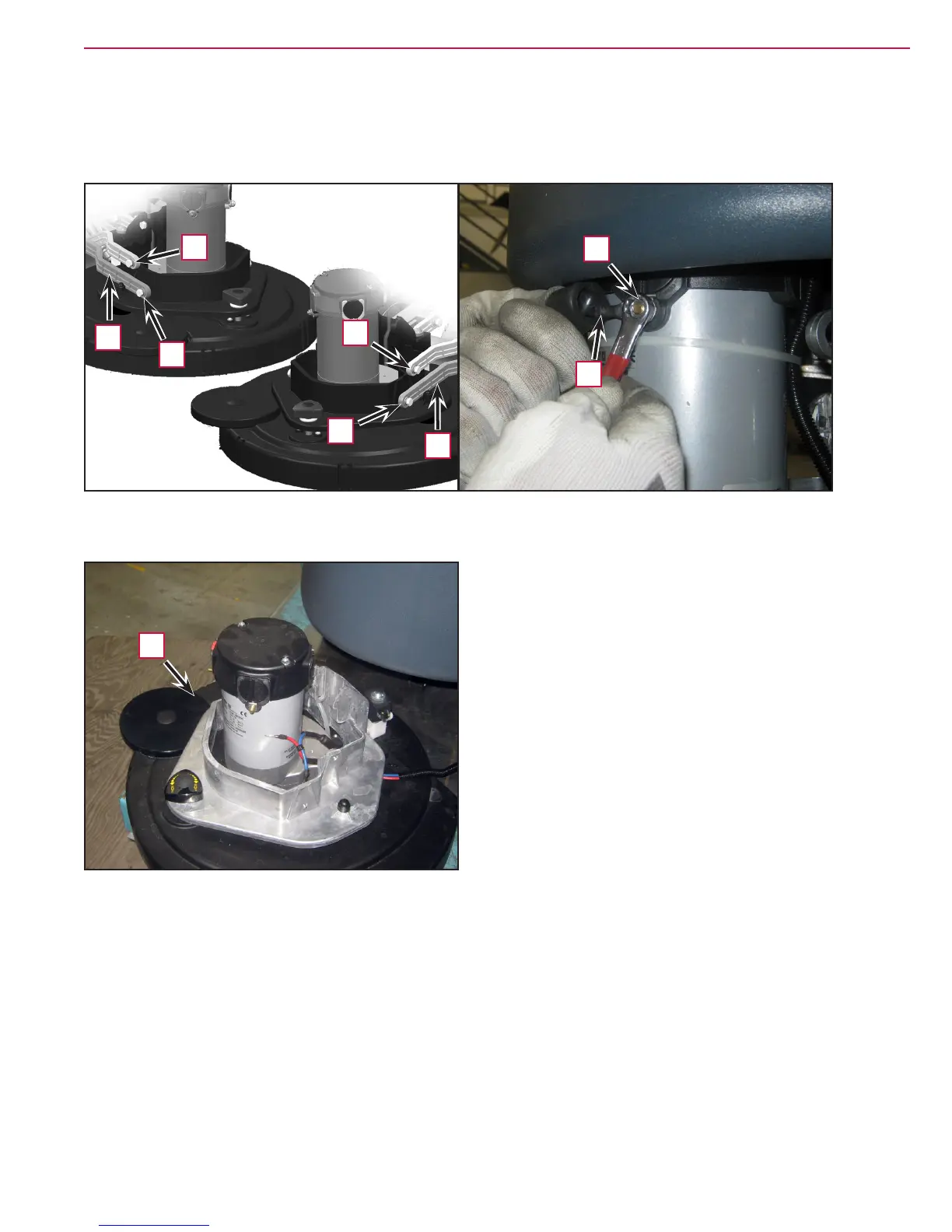

10. Remove the 4 screws (I) (Figure 9) fastening the deck raising levers (J), retaining the bushings and
washers.
11. Unscrew the 2 retaining nuts (K) and disconnect the brush motor power supply cables (L).
Figure 9
L
K
I
I
I
I
J
J
12. Extract the brush deck (M) (Figure 10) from beneath the solution tank.
Figure 10
M
Assembly
13. Assemble the components in the opposite order they were removed in, ensuring the brush motor power
supply cable polarities are correct.
To Next Page
