32
– Linearised 0-10V temperature signal from a temperature sensor or a building management system
connected to the control signal input on the power board of the Nordmann AT4 D.

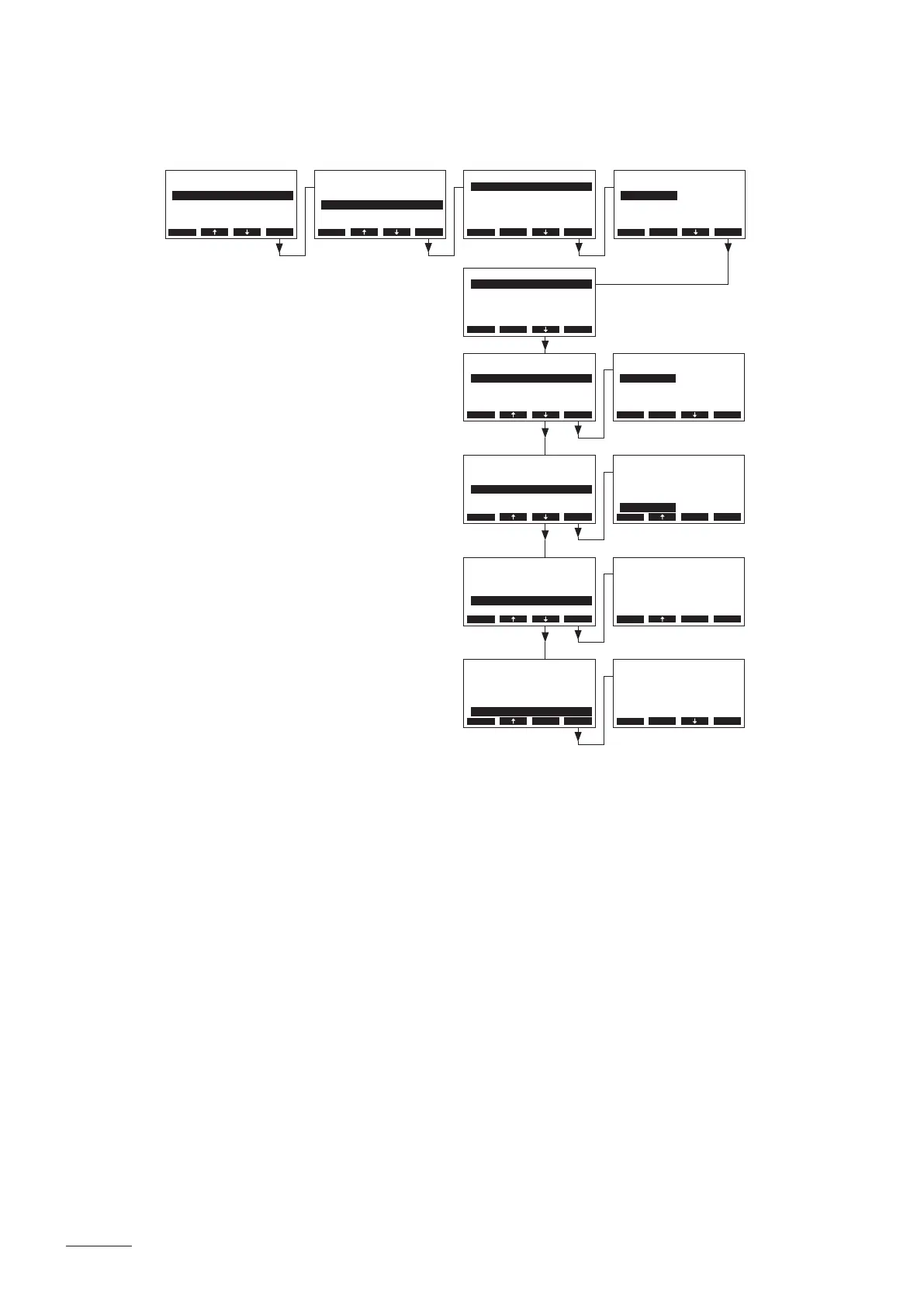

Select “Sensor” in the steam bath settings menu, then press the <Set> key.
Adjust the parameters in the submenu “Sensor” as follows:
• “SignalSource”: “Analog”
• “Mode”: “Temp.”
• “Type”: “0-10V”
• “0V-Temp.”: 0V temperature value in °C of the connected 0-10V temperature sensor
(Factory setting: 0 °C, Setting range: -50...+20 °C)
• “10V-Temp.”: 10V temperature value in °C of the connected 0-10V temperature sensor
(Factory setting: 100°C, Setting range: +80...+200 °C)
BathSettings
Light :Set
Sensor :Set
Control :Int.(P)
Fragrance :Set
P-Band :4°C
Esc Set
Settings
BathSettings:Set
Cylinder :4564
SC-System :Set
Language :English
Power Limit :100%
Esc Set
Sensor
Mode :Temp.
Type :KTY
Oset :0.0°C
SignalSource:Analog
Esc Set
Sensor
Mode :Temp.
Type :KTY
Oset :0.0°C
SignalSource:Analog
Esc Set
SignalSource
Analog
Modbus
Analog
Esc Set
Sensor
Mode :Temp.
Type :KTY
Oset :0.0°C
SignalSource:Analog
Esc Set
Sensor
Mode :Temp.
Type :0-10V
0V-Temp. :0°C
SignalSource:Analog
10V-Temp. :100°C
Esc Set
Sensor
Mode :Temp.
Type :0-10V
0V-Temp. :0°C
SignalSource:Analog
10V-Temp. :100°C
Esc Set
Sensor
Mode :Temp.
Type :0-10V
0V-Temp. :0°C
SignalSource:Analog
10V-Temp. :100°C
Esc Set
Mode
Temp.
Humidity
Temp.
Esc Set
Type
KTY
PT100
PT1000
0-10V
0-10V
Esc Set
0V-Temp.
0 °C
0 °C
Esc Set
10V-Temp.
100 °C
100 °C
Esc Set
