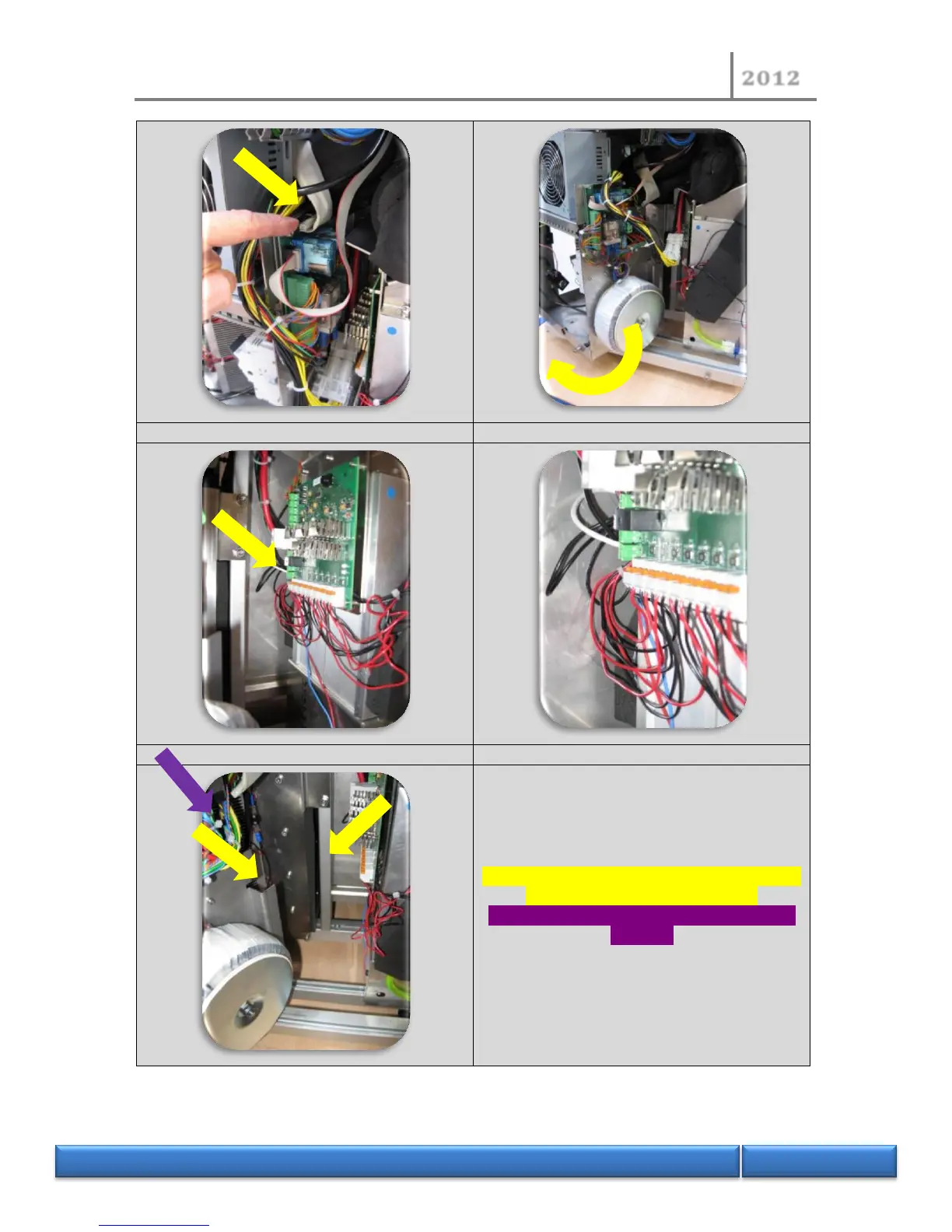

Remove the ribbons of CL3 board
Release the power supply frame on the left
Unplug the wires of the board
White wire in 1 and black wire on 2 of J10
At the reassembling ,properly position the frame
to match with amount of the frame
Beware the proper positioning of the bundle in
the notch
