Notifier NFS-640 Programming Manual

How to Program a Releasing Zone Appendix A: Releasing Applications
NFS-640 Programming Manual P/N 51333:B 10/03/2003 61
Programming an AHJ Abort Switch
The following contains information needed to program an AHJ Abort Switch:
Description An AHJ (Authority Having Jurisdiction) delay timer that restores the programmed Delay Timer.
Note: An AHJ timer does not comply with UL Standard 864.
How to program 1. Program the monitor module connected to the abort station with the Type Code
ABORT
SWITCH as detailed in “How to Modify an Addressable Monitor Module Point” on page
23.
2. Select a time for the Releasing Zone Delay Timer (refer to“How to Program a Delay
Timer” on page 54.)
3. Press at this point to save the Abort Switch value if no other fields on the
screen are changing. To change another field on the screen, move the cursor into
position by pressing the arrow keys on the keypad.
How it works When an alarm initiates, the programmed Delay Timer starts. Press and hold the Abort
switch and the control panel suspends the Delay Timer. When you release the Abort Switch,
the control panel restores the value of the programmed Delay Timer and the Delay Timer
counts down. When the Delay Timer expires, the control panel activates Releasing Zone
outputs.
Example An AHJ Abort Switch and a Delay Timer programmed to Releasing Zone R05:

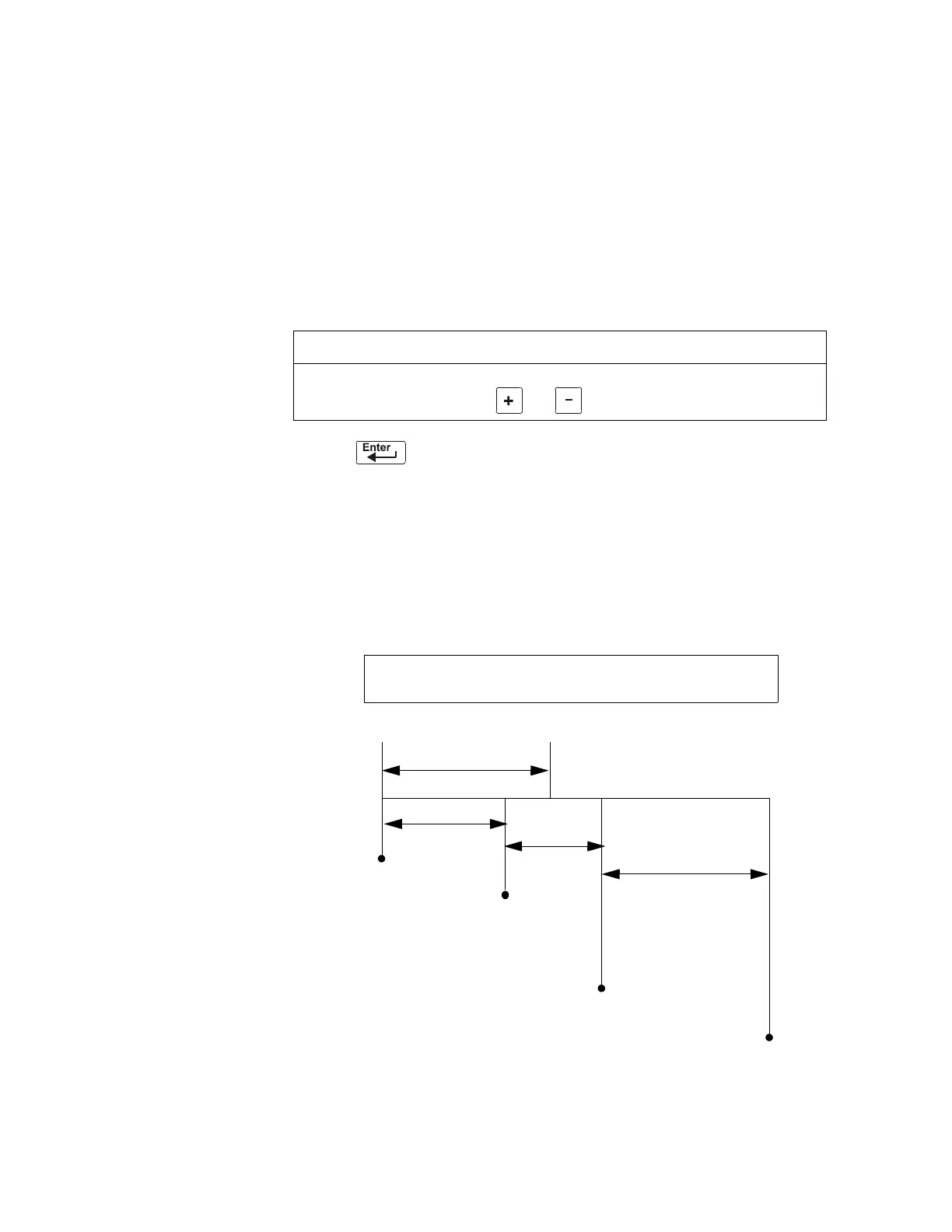

Figure 10 AHJ Abort Switch Example
To Program Do this
AHJ Abort Switch Type AHJ in the ABORT= field, or press the
NEXT or PREVIOUS
keys, or , until AHJ appears in the field.
Release the Abort Switch and control
panel restores the programmed value the
Delay Timer (60 sec.) and counts down
Delay=60 sec.
Press and hold
the Abort Switch
When the Delay Timer
expires, the control panel
activates Releasing
Zone outputs
Program selections for Releasing Zone R05
30 sec.
45 sec.
60 sec.
Total time from alarm initiation to release:
45 + 30 + 60 = 135 seconds
Alarm
0 sec.
45 sec
60 sec.
75 sec.
135 sec.
PRG RELEASE FUNCTION RELEASE CONTROL
DELAY=60 ABORT=AHJ CROSS=N SOK=0000 R05
