Appendix A: Releasing Applications How to Program a Releasing Zone
66
NFS-640 Programming Manual P/N 51333:B 10/03/2003
How to Program an Abort Switch
The following contains information needed to program an Abort Switch for a monitor module.
Description A monitor module, connected to a UL-listed abort station (such as the Notifier
NBG-12LRA), that you use as an abort switch for a Releasing Zone. You can
program multiple monitor modules with the
ABORT SWITCH Type Code that work
like multiple conventional abort switches on a conventional zone.
How to
program
1. Select a monitor module that you want to use as an Abort Switch (refer to
“How to Modify or Delete a Point (2 =
POINTS)” on page 21).
2. Select the
ABORT SWITCH Type Code.
3. Select the Releasing Zone (R0-R9) for your releasing application.
4. Press the
ENTER key to save, then press the ESC key until you return to the
Program Change screen.
5. Select the type of Abort Switch for your releasing application (refer to “How
to Program an Abort Switch” on page 54).
Example
A programming example of a monitor module programmed as an Abort Switch for
Releasing Zone R5.

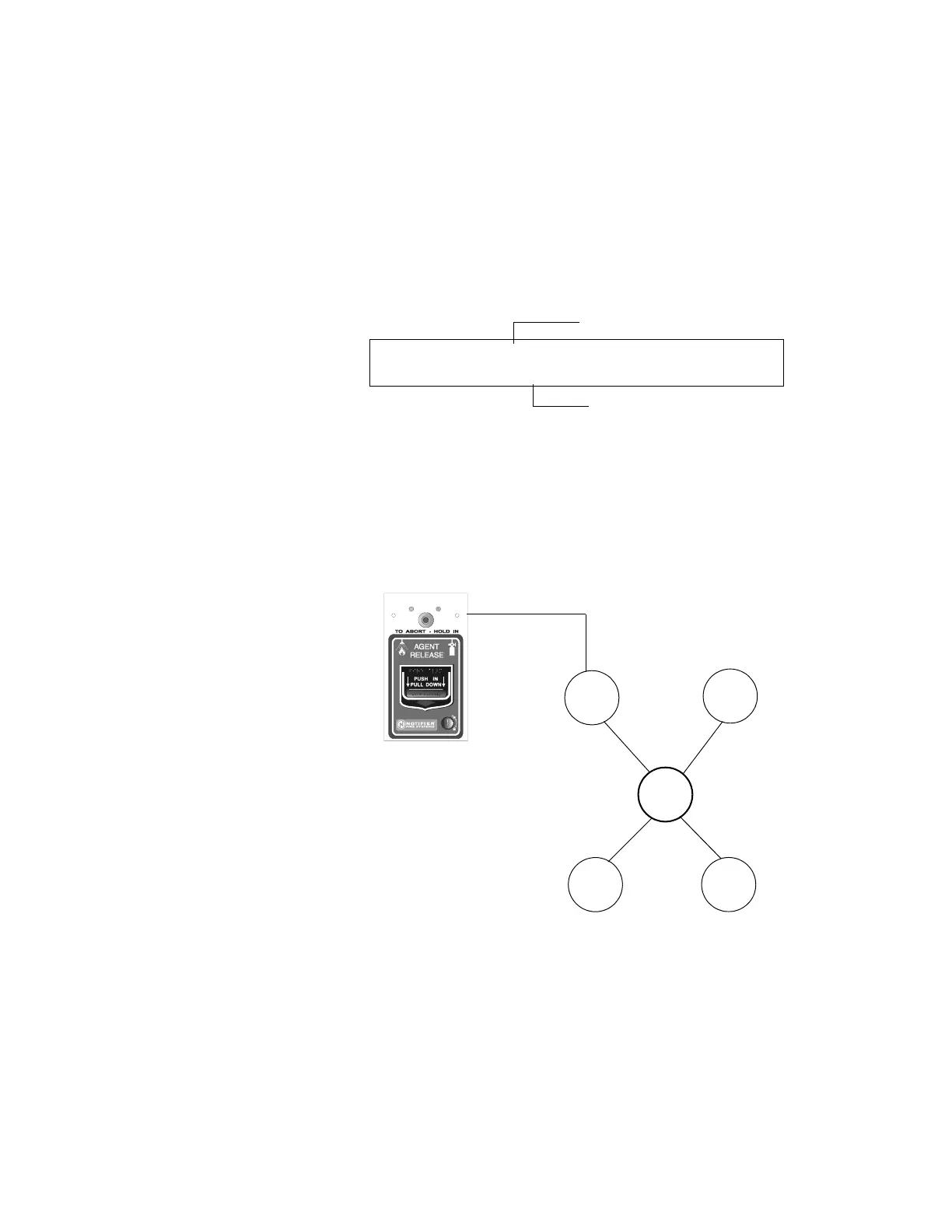

Figure 12 Monitor Module Configured as an Abort Switch
Releasing Zone selection (R1 shown)
Type Code selection: ABORT SWITCH
PROGRM ABORT_SWITCH MODULE ADDR 2M101
R1 __ __ __ __ 2M101
SYSTEM
NORMAL
SYSTEM
CTIVATED
Detector
Control
Module
R05
NBG12LRA
station with
Abort Switch
B01
Monitor
Module
Type Code
ABORT SWITCH
Xzonea.cdr
