How to Program a Releasing Zone Appendix A: Releasing Applications
NFS-640 Programming Manual P/N 51333:B 10/03/2003 77
How to Program a Release Code Bell Circuit
Note: An output with a REL CODE BELL Type Code requires the following selections: A Releasing Zone selection (R0-
R9); An input circuit mapped to the same Releasing Zone.
Note: For instructions on programming Switch Inhibit, Silenceable, and Walk Test, refer to “How to Modify NAC and
Panel Circuit Points” on page 25.
The following contains information needed to program a Release Code Bell circuit for a NAC.
Description A NAC programmed to pulse an audio or visual device as follows:
• 20 ppm when a Delay Timer activates
• 120 ppm when a Cross Zone activates
How to
program
1. Select a NAC (refer to “How To Program NAC And Panel Circuit Points” on
page 25) that you want to use as a Release Code Bell Circuit.
2. Select the
REL CODE BELL Type Code, as shown in the following example
(NAC shown).
3. Select the Releasing Zone (R0-R9) for your releasing application.
4. Press the
ENTER key to save, then press the ESC key two times to return to the
Program Change screen.
Example
A programming example of a NAC programmed as a Release Code Bell circuit for
Releasing Zone R5.

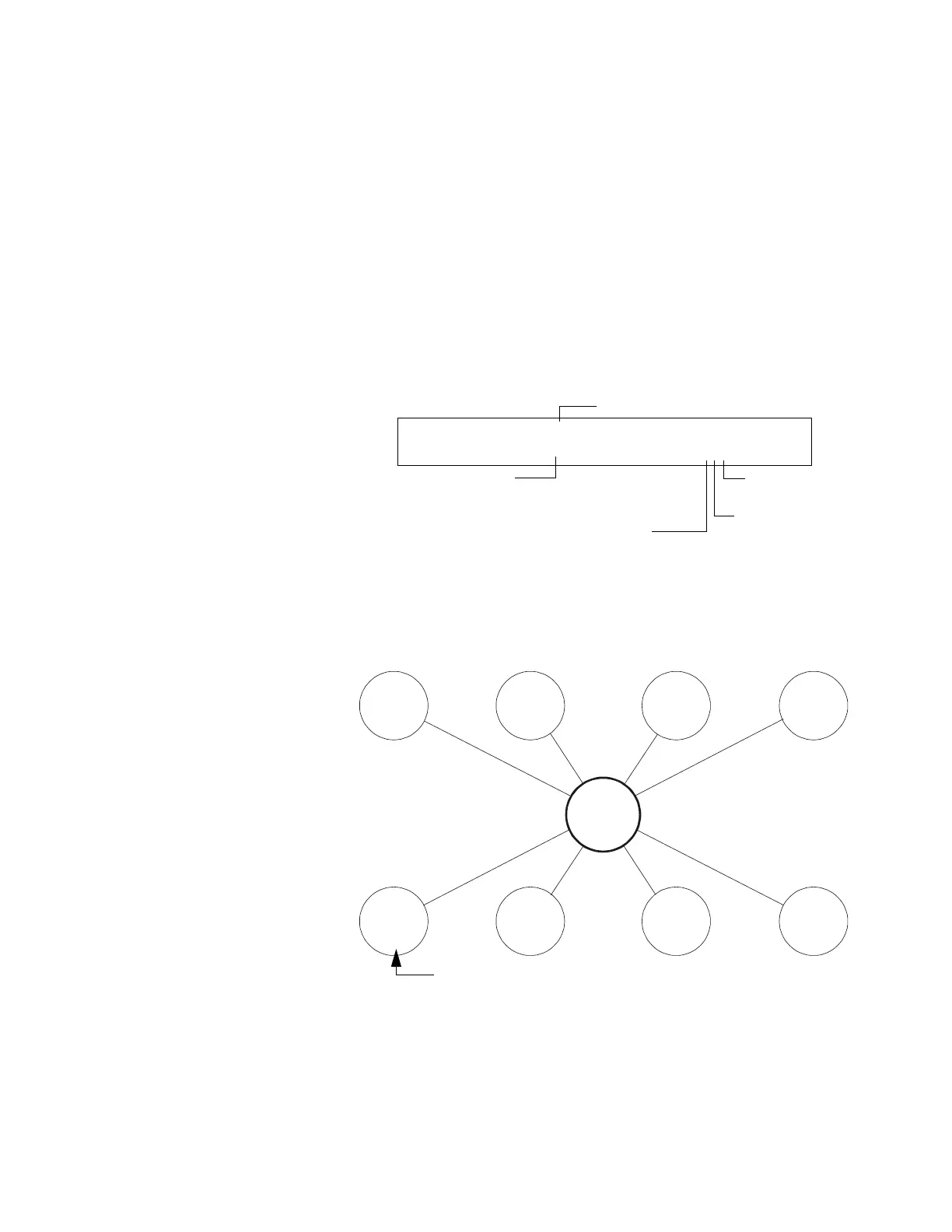

Figure 22 NAC Configured as a Release Code Bell Circuit
Type Code selection: REL CODE BELL
PROGRM REL CODE BELLPANEL CIRCUIT NO. 3
R5 __ __ __ __ I** B03
Releasing Zone
selection (R5 shown)
Walk Test
Selection: * = off
Silenceable: * = off
Switch Inhibit: I = selected
Type Code
REL CODE BELL
Control
Module
B02
B01
B03
R05
Monitor
Module
Detector
Detector
Detector
Xzone4.cdr
A NAC programmed with the REL CODE BELL Type Code
activates simultaneously with other outputs programmed
for R05 (B01 and B02).
