10 EV2 Series DVR

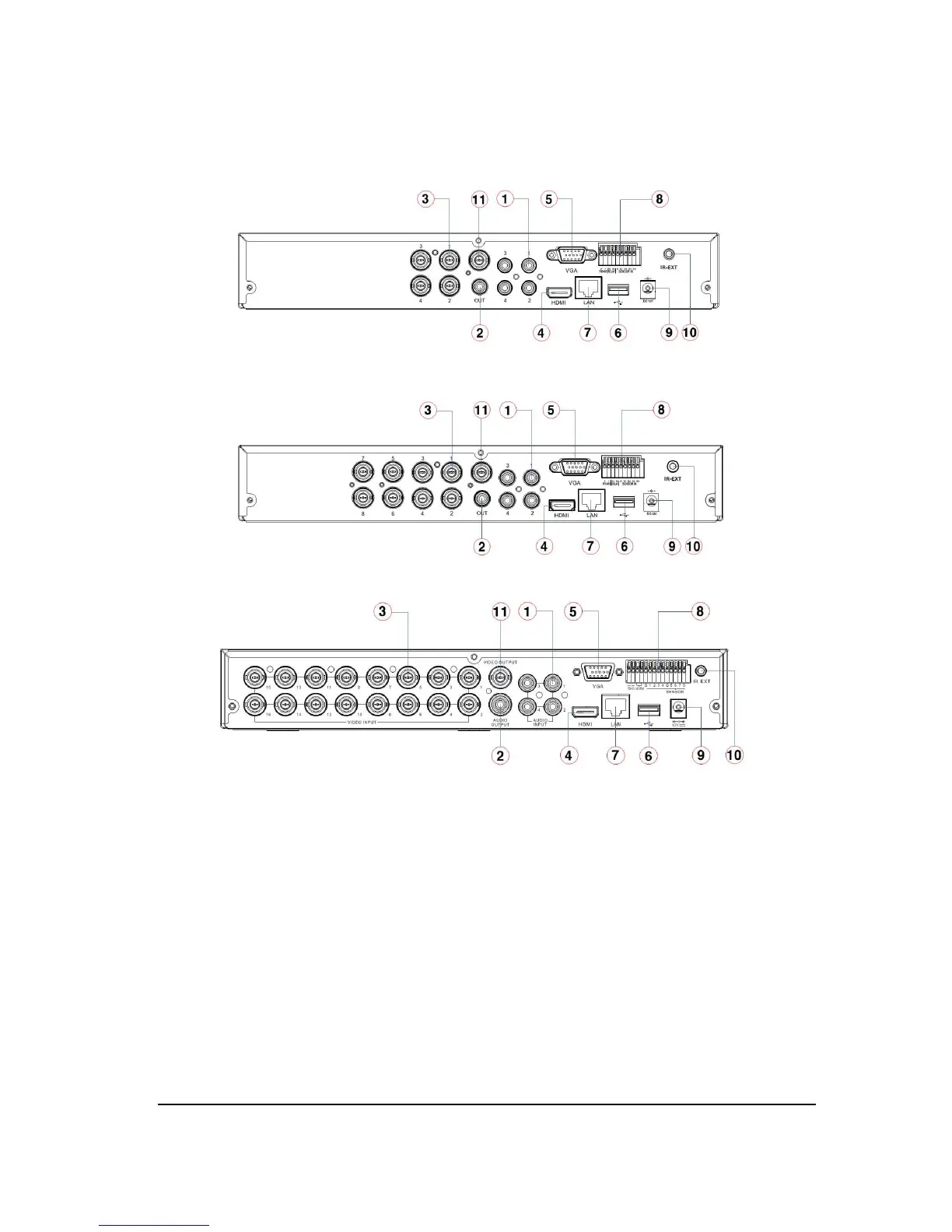

2. Rear Panel Connectors
<4ch>
<8ch>
<16ch>
1) AUDIO IN : RCA Input (1~4 ch)
2) AUDIO OUT : RCA Onput 1CH
3) VIDEO IN : BNC Input (Camera 1~4, 1~8, 1~16)
4) HDMI : HDMI monitor out
5) VGA : VGA monitor out
6) USB : USB Memory or Mouse
7) LAN : RJ-45 Ethernet Port
8) SENSOR IN : Alarm input (S1~S4) / RELAY : Alarm relay out (R1, R2)
RS-485 : Control of PTZ camera or Key board (+, -)
9) POWER : DC power Jack
10) IR-EXT : Extension Port of IR.com
11) VIDEO OUT : BNC standard composite video out / SPOT out (Selectable)
