30 EV2 Series DVR
2.4. PTZ Setup
PTZ device are connected to the RS-485 ports located on the back of the unit.
Multiple PTZ cameras are connected by daisy-chaining the camera connection.
This DVR allows you to address and control multiple PTZ cameras individually.

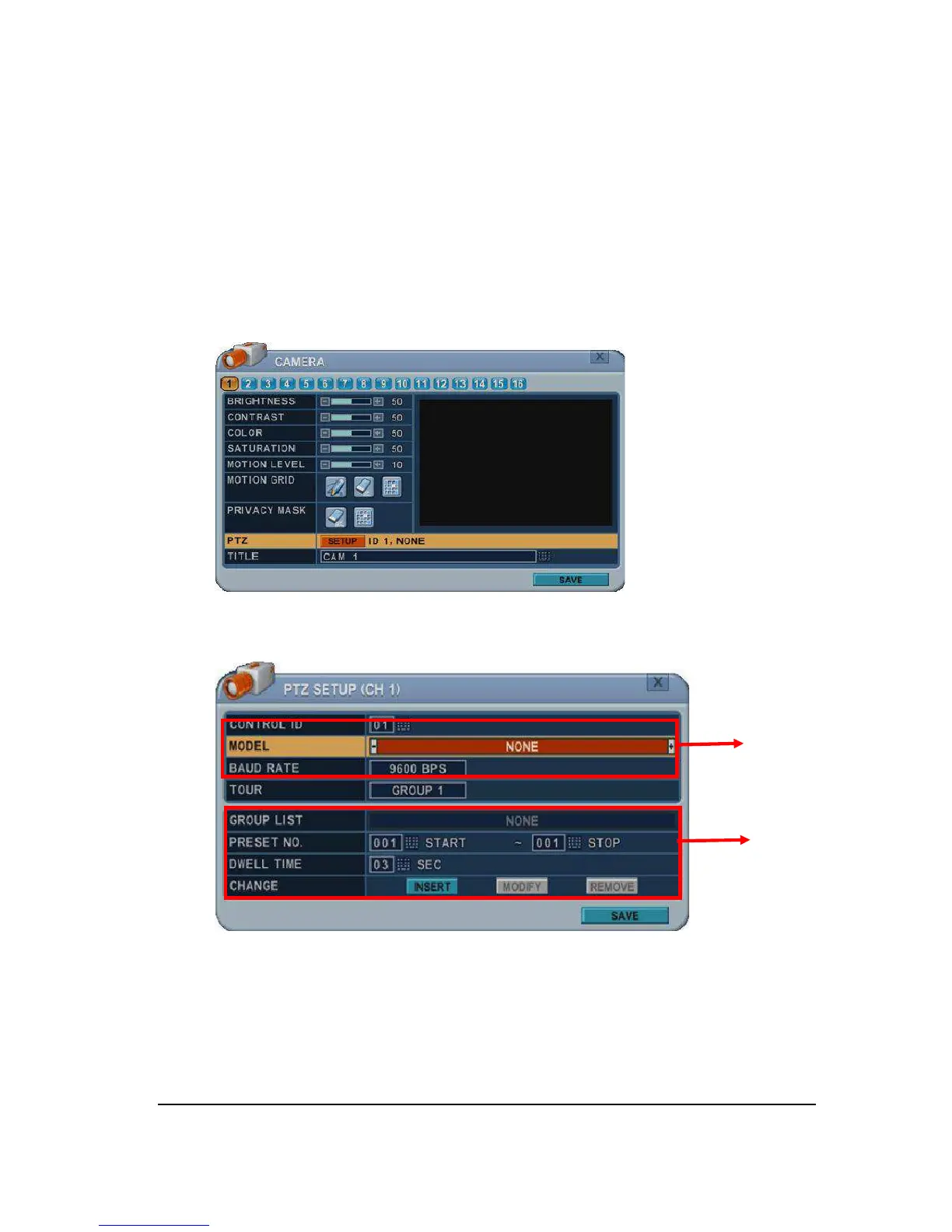

To Configure PTZ Setup:
1) Select Camera number button to configure the desired camera.
2) Press [ENTER] to configure PTZ Setup.
The menus are displayed with options on the left-hand column and settings in the
right hand column.
a. Communication settings.
: Configure appropriate model and then enter the corresponding baud rate, PTZ
ID (address).
b. Tour Group: Preset Tour allows a camera to move though a programmed
sequence of PTZ preset. Please refer to <PTZ controlling> for more in detail.
ⓐ
ⓑ
