68 EV2 Series DVR
2.1 Tour Group

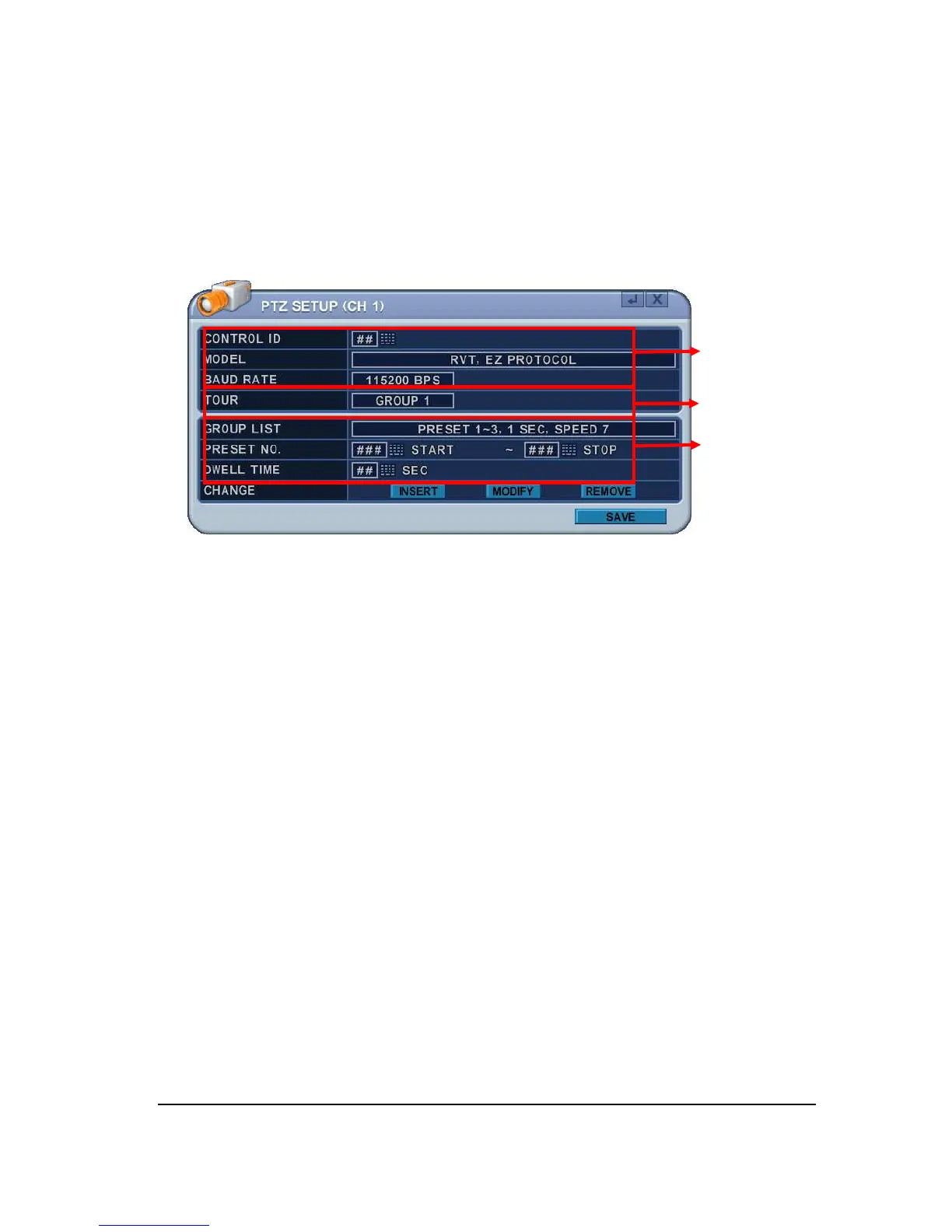

A preset Tour Group allows a camera to move through a programmed sequence of PTZ
presets.
1) Communication settings.
Configure appropriate model and then enter the corresponding baud rate, PTZ ID
(address). Please refer to the PTZ manufacture’s instruction manual for proper
jumper settings to match the protocols to the DVR.
2) Tour: There are 4 programmable Tours. Using the [-, +] button to change the values
[Group 1 Group 2 Group 3 Group 4]
3) This is sub menu of each Tour group. The menus are displayed with options on the
left-hand column and settings in the right hand column.
a. Group List: Each Tour Group consists of up to 10 preset positions.
b. Preset no.: Enter the start preset no and stop preset.
c. Dwell Time: Set the pause between end of current preset and the start of the next
preset.
d. Change: Add, modify or clear the Tour list using this option.
f. Repeat the procedure in step b to d to add Tour list.
①
③
②
