4 PIN CONFIGURATION
Users can find pin configuaration informations by using NuTool - PinConfigure. The NuTool -
PinConfigure contains all Nuvoton NuMicro
®
Family chip series with all part number, and helps users
configure GPIO multi-function correctly and handily.
4.1 MS51 32K Series Multi Function Pin Diagram

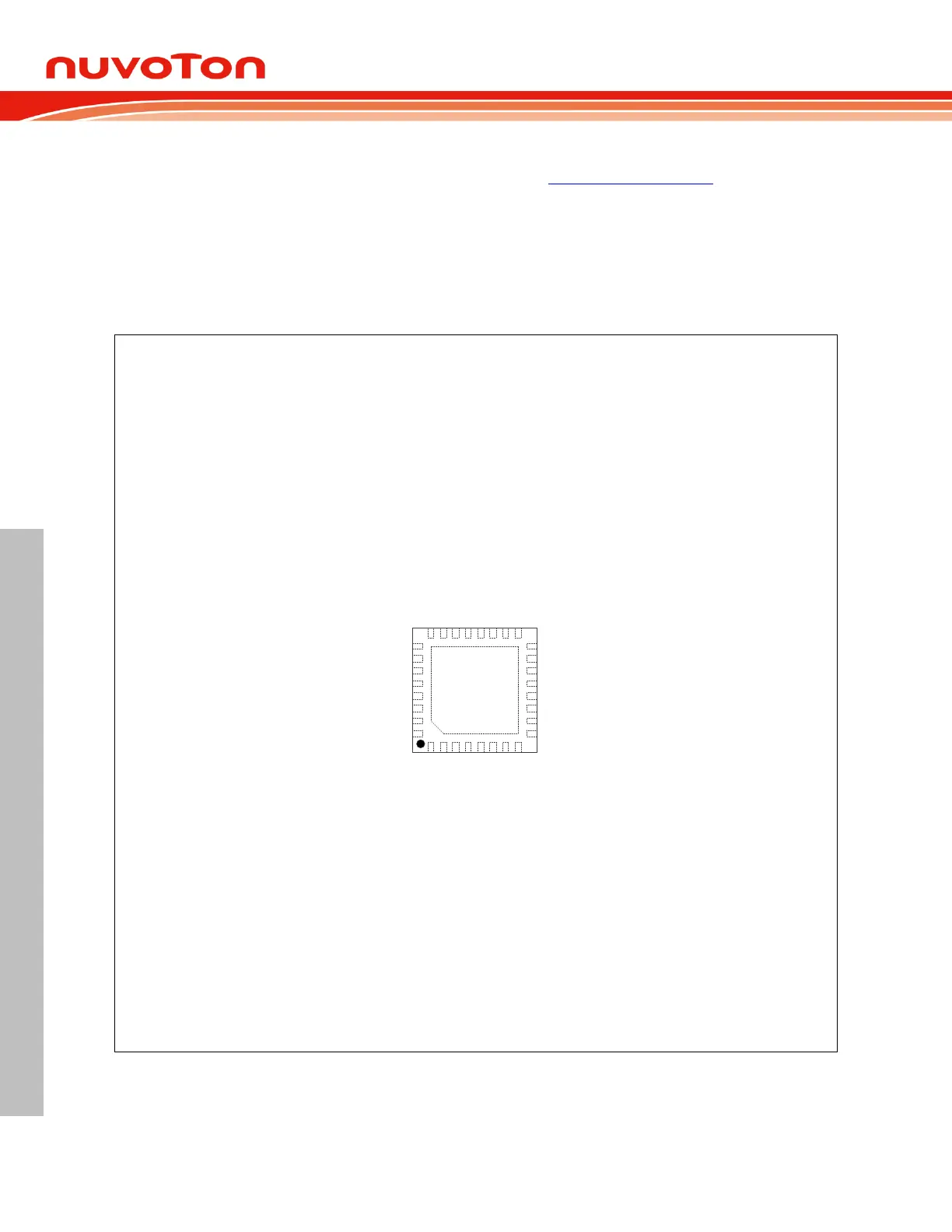

4.1.1 QFN 33-pin Package Pin Diagram
Corresponding Part Number: MS51TC0AE
QFN33
33 VSS
1 2 3 4 5 6 7 8
16
15
14
13
12
11
10
9
24 23 22 21 20 19 18 17
25
26
27
28
29
30
31
32
PWM0_BRAKE / CLKO / PWM0_CH0 / P3.3
UART1_RXD / I2C0_SCL / ICE_CLK / P0.2
PWM3_CH1 / UART2_TXD / PWM0_CH5 / IC5 / ADC_CH6 / P0.3
PWM2_CH1 / UART2_RXD / STADC / PWM0_CH3 / IC3 / ADC_CH5 / P0.4
PWM2_CH0 / UART3_TXD / T0 / PWM0_CH2 / IC6 / ADC_CH4 / P0.5
UART0_TXD / ADC_CH3 / P0.6
UART0_RXD / ADC_CH2 / P0.7
UART3_RXD / PWM3_CH1 / P3.4
nRESET / P2.0
SPI0_MOSI / UART2_TXD / INT0 / OSCIN / ADC_CH1 / P3.0
SPI0_CLK / UART2_RXD / INT1 / ADC_CH0 / P1.7
V
SS
UART1_TXD / I2C0_SDA / ICE_DAT / P1.6
V
DD
PWM3_CH1 / UART3_TXD / IC7 / SPI0_SS / PWM0_CH5 / P1.5
SPI0_MISO / UART3_RXD / ADC_CH15 / P2.5
P2.1 / ADC_CH9 / PWM2_CH0
P2.2 / ADC_CH10 / PWM1_CH1 / UART4_RXD
P2.3 / ADC_CH11 / PWM1_CH0 / UART4_TXD
P2.4 / ADC_CH12 / T0
P1.3 / STADC / I2C0_SCL / ADC_CH13
P1.4 / PWM0_CH1 / I2C0_SDA / PWM0_BRAKE / ADC_CH14 / PWM1_CH1
P3.7 / UART1_TXD
P3.6 / UART1_RXD
P0.1 / PWM0_CH4 / SPI0_MISO / IC4 / HXTOUT / PWM3_CH0 P0.0 / PWM0_CH3 / SPI0_MOSI / IC3 / UART1_RXD / T1 / HXTIN / PWM2_CH1 P1.0 / PWM0_CH2 / SPI0_CLK / IC2 / UART1_TXD / PWM2_CH0 P1.1 / ADC_CH7 / CLKO / IC1 / PWM0_CH1 / UART3_RXD / PWM1_CH1 P1.2 / PWM0_CH0 / IC0 / UART3_TXD / PWM1_CH0 P3.2 / PWM3_CH0 P3.1 / PWM2_CH1 P3.5 / SPI0_SS
Top transparent view
Figure 4.1-1 Pin Assignment of LQFP-32 Package
