NXP Semiconductors
AN13134
PN76 family evaluation board quick start guide
2.1.2.2 OpenSDA interface
The PNEV7642A hosts a OpenSDA interface on the bottom left corner. OpenSDA is an open-standard serial
and debug adapter. It bridges serial- and debug communications between a USB host and an embedded target
processor. J27 is the USB-C connector for OpenSDA while J29 is the JTAG interface for the microcontroller
running the OpenSDA software.
Per default, OpenSDA is not enabled. Refer to [1] to enable OpenSDA.

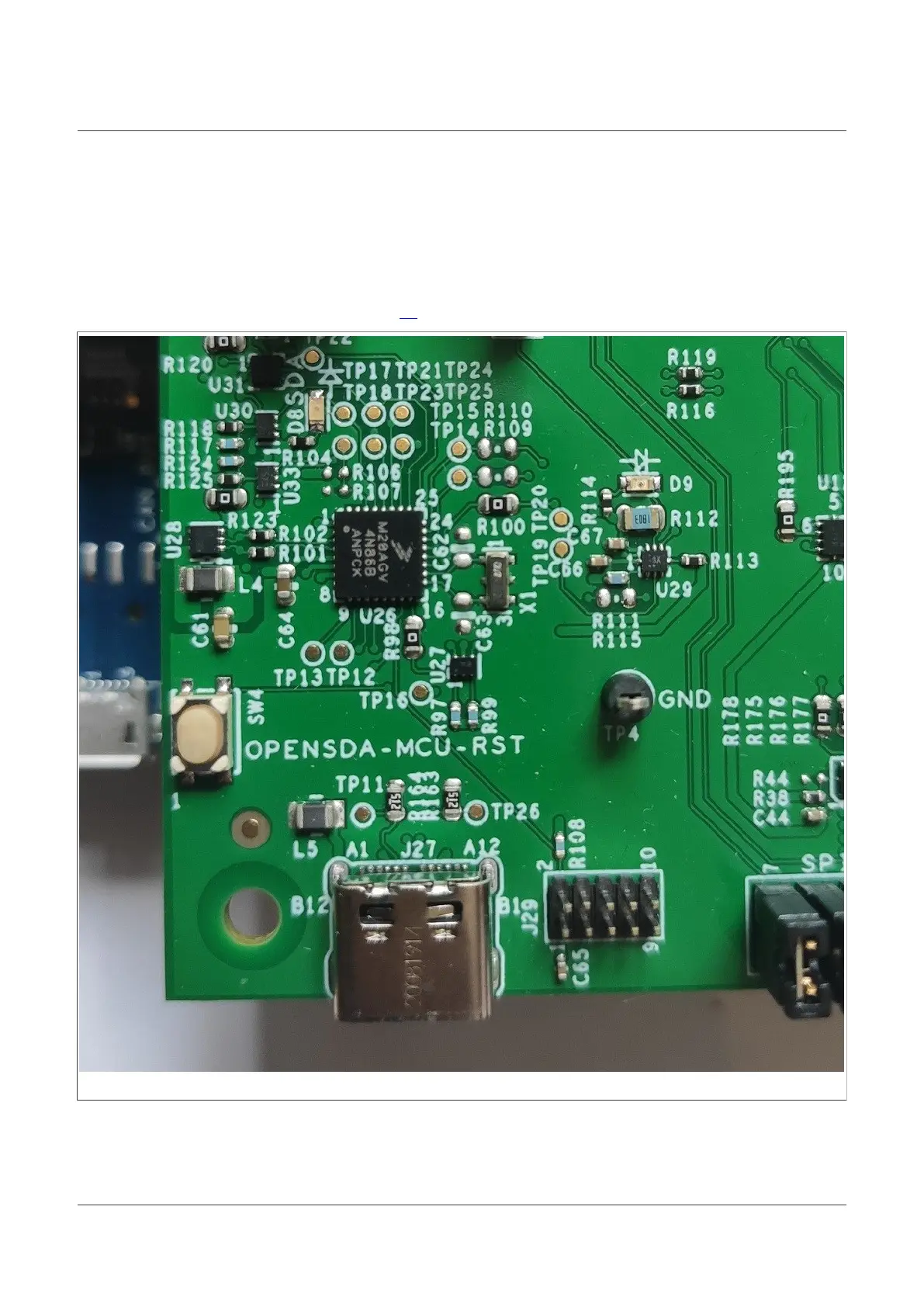

Figure 11. OpenSDA connectors
AN13134 All information provided in this document is subject to legal disclaimers. © 2023 NXP B.V. All rights reserved.
Application note Rev. 2.5 — 2 May 2023
13 / 57
